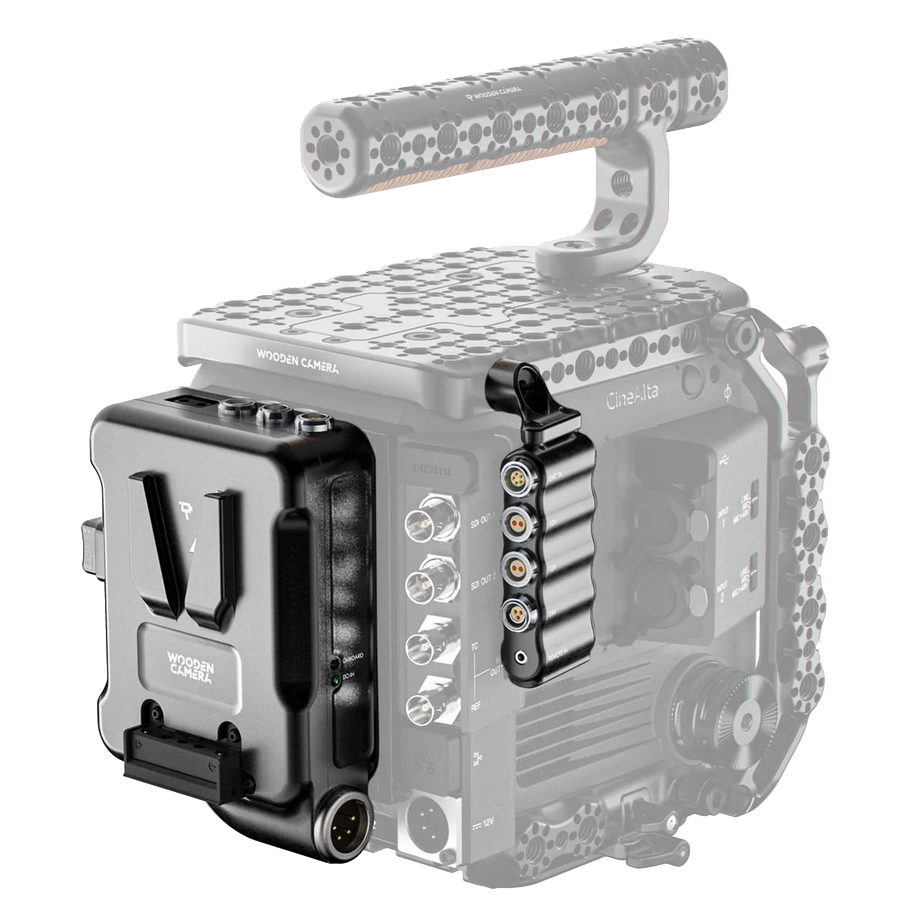

Wooden Camera D-Box and B-Box System (Sony BURANO) A00600

Wooden Camera B-Box System (Sony BURANO)SKU: A00598The B-Box System for Sony BURANO expands the power distribution of the D-Box by adding two 2-pin 12V, a 3-pin 24V and a Remote-In port to your camera setup. This System allows users to power additional accessories and includes a mount to attach this system to the Top Plate for Sony BURANO.This System is connected to the D-Box using the included B-Box Link Cable, it is attached to the EXT port on both units to allow power transfer. Users can take it a step further with the use of the Remote Cable, allowing Run/Stop to the 3-pin connector port via the camera's Remote port. Weight: 51.26 gDimensions: 46 x 24 x 73 mm Included Items:B-Box (Sony BURANO)B-Box Bolt-On Side Mount (Sony BURANO)B-Box Link Cable (Sony Venice, Venice 2, BURANO)Remote Cable (Sony BURANO)

Wooden Camera D-Box (Sony BURANO) Add power accessory options on the Sony BURANO by adding the D-Box to your camera system, the D-Box provides additional 12V 2-pin, a D-tap port and a 3-pin 24V power options. The D-Box offers hot swap abilities when power is connected to the DC-In and an on-board battery. Choose from either a Gold Mount or V-Mount option. D-Box V Mount (Sony BURANO): Weight: 400.5 g | Dimensions: 96 x 47 x 135 mmD-Box Gold Mount (Sony BURANO): Weight: 394.6 g | Dimensions: 100 x 38 x 136 mm

Wooden Camera D-Box (Sony BURANO) Add power accessory options on the Sony BURANO by adding the D-Box to your camera system, the D-Box provides additional 12V 2-pin, a D-tap port and a 3-pin 24V power options. The D-Box offers hot swap abilities when power is connected to the DC-In and an on-board battery. Choose from either a Gold Mount or V-Mount option. D-Box V Mount (Sony BURANO): Weight: 400.5 g | Dimensions: 96 x 47 x 135 mmD-Box Gold Mount (Sony BURANO): Weight: 394.6 g | Dimensions: 100 x 38 x 136 mm

MID49 Power Distribution Box DB-8 (Sony Burano, V-Mount) Power Distribution Box DB-8 (Sony Burano, V-Mount) attaches directly to the back of the camera body using the V-Mount interface to provide intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable LANC cable enables remote start/stop capability using 3pin Fischer devices. Hot swap between onboard battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-8 will switch to an onboard battery. With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the Burano uses approximately 2.8A at 14V so when using a 10A capable battery, the remaining 6.2A is allocated for accessory use. If an accessory configuration exceeds the 6.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate showing the error and once the configuration has been adjusted to lower than 6.2A, the RESET button can be pressed and power will be re-enabled to accessory outputs. In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.The DB-8 is also compatible with Sony Venice and Venice 2 and start / stop capability can be added using the optional adapter cable.INPUTSBATT V-Mount plate with SMBus communicationDC IN 4pin XLR (11-17V)OUTPUTS2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)

MID49 Power Distribution Box DB-8 (Sony Burano, V-Mount) Power Distribution Box DB-8 (Sony Burano, V-Mount) attaches directly to the back of the camera body using the V-Mount interface to provide intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable LANC cable enables remote start/stop capability using 3pin Fischer devices. Hot swap between onboard battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-8 will switch to an onboard battery. With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the Burano uses approximately 2.8A at 14V so when using a 10A capable battery, the remaining 6.2A is allocated for accessory use. If an accessory configuration exceeds the 6.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate showing the error and once the configuration has been adjusted to lower than 6.2A, the RESET button can be pressed and power will be re-enabled to accessory outputs. In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.The DB-8 is also compatible with Sony Venice and Venice 2 and start / stop capability can be added using the optional adapter cable.INPUTSBATT V-Mount plate with SMBus communicationDC IN 4pin XLR (11-17V)OUTPUTS2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)

MID49 Power Distribution Box DB-8 (Sony Burano, Gold Mount) Power Distribution Box DB-8 (Sony Burano, Gold Mount) attaches directly to the back of the camera body using the V-Mount interface to provide intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable LANC cable enables remote start/stop capability using 3pin Fischer devices. When using communicative batteries, data is converted to SMBus and sent to the camera enabling percentage data on the monitor. Hot swap between onboard battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-8 will switch to an onboard battery. With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the Burano uses approximately 2.8A at 14V so when using a 10A capable battery, the remaining 6.2A is allocated for accessory use. If an accessory configuration exceeds the 6.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate showing the error and once the configuration has been adjusted to lower than 6.2A, the RESET button can be pressed and power will be re-enabled to accessory outputs. In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed. The DB-8 is also compatible with Sony Venice and Venice 2 and start / stop capability can be added using the optional adapter cable. INPUTS BATT Gold Mount plate with Anton Bauer communicationDC IN 4pin XLR (11-17V) OUTPUTS 2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)

MID49 Power Distribution Box DB-8 (Sony Burano, Gold Mount) Power Distribution Box DB-8 (Sony Burano, Gold Mount) attaches directly to the back of the camera body using the V-Mount interface to provide intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable LANC cable enables remote start/stop capability using 3pin Fischer devices. When using communicative batteries, data is converted to SMBus and sent to the camera enabling percentage data on the monitor. Hot swap between onboard battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-8 will switch to an onboard battery. With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the Burano uses approximately 2.8A at 14V so when using a 10A capable battery, the remaining 6.2A is allocated for accessory use. If an accessory configuration exceeds the 6.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate showing the error and once the configuration has been adjusted to lower than 6.2A, the RESET button can be pressed and power will be re-enabled to accessory outputs. In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed. The DB-8 is also compatible with Sony Venice and Venice 2 and start / stop capability can be added using the optional adapter cable. INPUTS BATT Gold Mount plate with Anton Bauer communicationDC IN 4pin XLR (11-17V) OUTPUTS 2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)
