Allen Avionics HD-VIT-75 Video Isolation Transformer
€179.00*
gross: €213.01

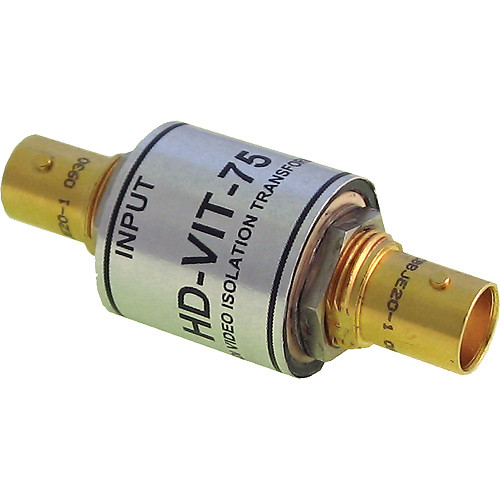

Allen Avionics HD-VIT-75
The Allen Avionics HD-VIT-75 Video Isolation Transformer eliminates hum in HD-SDI transmission lines. It provides electrical isolation between the input and output and also eliminates induced currents in long cable runs. This device is useful for broadcast systems where hum is present due to ground loops or where there are large differences in ground potential.
Supports all transmission rates of SMPTE259m and SMPTE292m up to 1.5 Gbps HD-SDI video inputEquivalent to less than 20 ft (6 m) of cableIsolated signal pathGreater than 60 dB of ground loop isolationPassive device -- no power requiredSmall cylindrical package with gold-plated BNC connectors for better response75 Ohms balanced with 3.0 GHz bandwidthGreater than 15 dB return loss till 1.5 GHz2 kV flash tested
Allen Avionics SDI-VIT-75 SDI Video Isolation Transformer
€139.00*
gross: €165.41

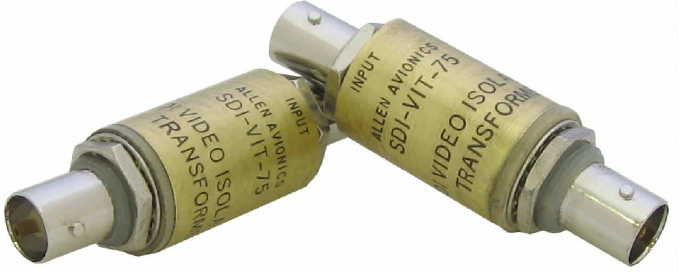

Allen Avionics SDI-VIT-75 SDI Video Isolation Transformer
Allen Avionics SDI-VIT-75 is a Video Isolation Transformer for eliminating hum in Serial Digital Transmission Lines. This can be used for Broadcast Systems where hum is present due to ground loops or where there is a large differences in ground potential. The SDI-VIT-75 provides electrical isolation between the Input and Output and will also eliminate induced currents in long cable runs.
Supports all transmission rates of SMPTE259m and ITU-R BT 656. Supports 143Mbps to 540 Mbps including 270Mbps transmission rateSmall Cylindrical Shielded Package with BNC ConnectorsIsolated Output Signal PathGreater than 60 dB of Ground Loop IsolationPassive Device - No power required75 Ohms Balanced with 1.0 GHz BandwidthGreater than 15 dB Return Loss till 500 MHz
Next Level NL-2 two-channel audio splitter
€179.00*
gross: €213.01
NextLevel NL-2 two-channel audio splitter
It is a professional device splitting audio signals, closed in a compact metal casing. This device is ideal wherever there is a need to separate audio components and eliminate their mutual harmful effects such as hum influence, for example: noise. Because of its small size the NL-2 is perfect as "problem solver" especially in mobile installations such as:
stagesfilm set(TV) StudiosDSNG vans
The NL-2 is equipped with one input, True direct output and two galvanically separated outputs with independent ground fault.
The splitter is built using Lundahl audio transformers ensuring highest broadcast quality and minimum distortion.The device is adapted to work in a wide range of input levels: from microphone to +16dBu. The splitter casing is made of powder-coated aluminum.The device uses the highest quality XLR connectors from Neutrik with gold-plated contacts.To ensure the best matching, the input is equipped with an input impedance switch.Made in the EU
Technical data overview
Dimensions: (LxWxH): 111mm x 82mm x 33mmDistortion: 0.1% @ + 6 dBU, 50Hz / 1% < @ + 16 dBU, 50HzFrequency response: 10 Hz - 200 kHz +/- 0.5 dBIsolation: winding-to-winding - 4kV / Winding to screen - 2kV / Screen to screen - 2kV
Next Level NLV-13 3G HD SDI Isolator
€109.00*
gross: €129.71
Next Level NLV-13
Professional 3G HD SDI Isolator
It is a separator of SDI (Serial Digital Interface) signals with a bit rate up to 3Gbit / s. This device, similarly to the separation transformers in the audio paths. It serves for the galvanic separation of the signal path to eliminate interference.
NLV-13 It is perfect for SD, HD, HD3G video signals as well as ASI (Transport Stream) signals. It is most often used in extensive or distributed Video installations, in which individual parts of the system are powered from different power sources.
The separator passes the video signal, blocking the unwanted voltage resulting from the potential difference between the elements of the installation supplied, for example, from the aggregate and the power grid. An additional benefit resulting from the use of the Next Level NLV-13 separator is the protection of inputs and outputs of video devices against damage due to the appearance of potential differences between the elements of the video track.
The device was placed in a small housing and equipped with BNC 75Ohm connectors. The dimensions of the separator and the appropriately designed flange allow for its easy installation in standard 19” panels with holes for XLR type D connectors
