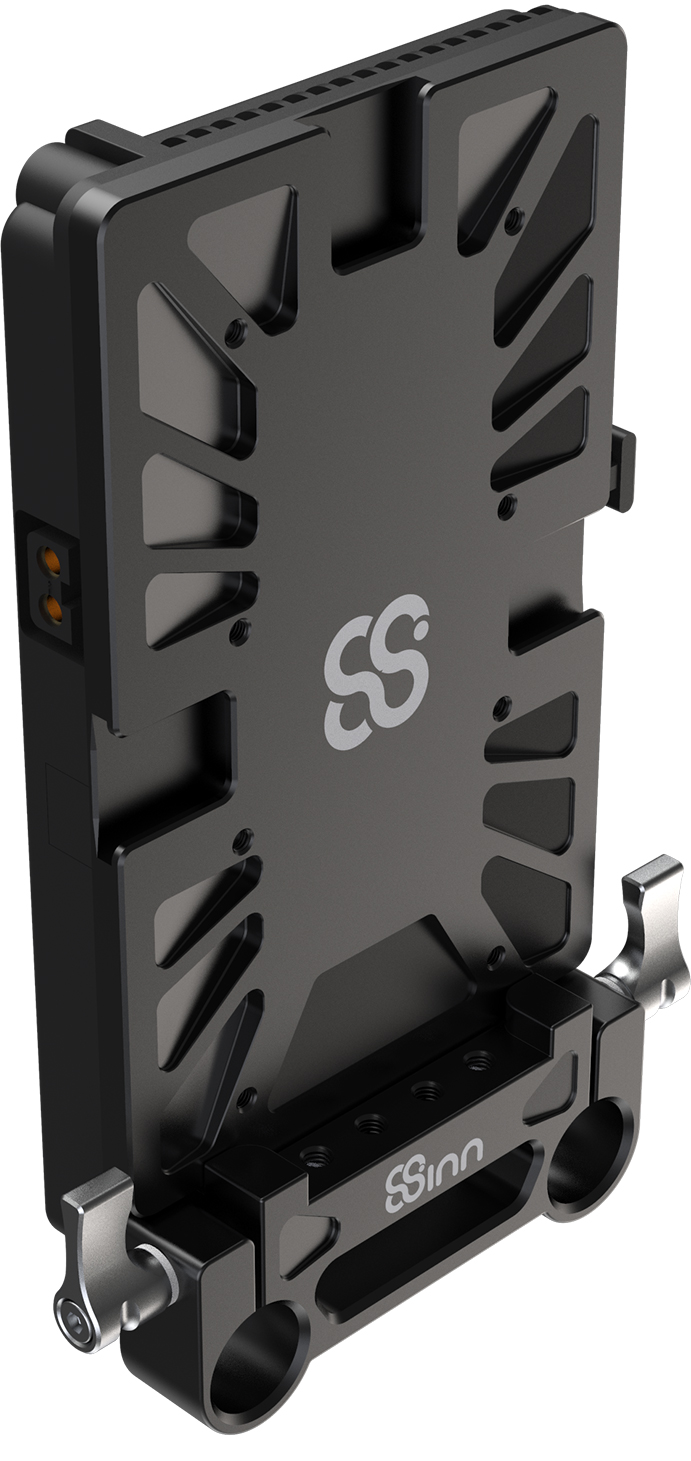

8Sinn Battery Mounting Plate with 15mm Rod Clamp
8Sinn Battery Mounting Plate with 15mm Rod Clamp consists of two parts: plate and rod clamp.
Aluminum plate has 3x8 mounting points for V-Mount Battery and three cold shoe mounts for other accessories. Plate is attached to the rod clamp by three screws - this point of attachment is also the positioning point, where one of two positions can be set (vertical or horizontal). 15MM Rod Clamp is set in place by two thumbscrews, located on each side. Safe usage is guaranteed by rigid and solid structure.
Key features
3x8 mounting points3 cold shoe mounts15MM rod compatiblehorizontal and vertical position
Dimmensions
Length: 162mm x 15mm x 82mmWeight: 190g

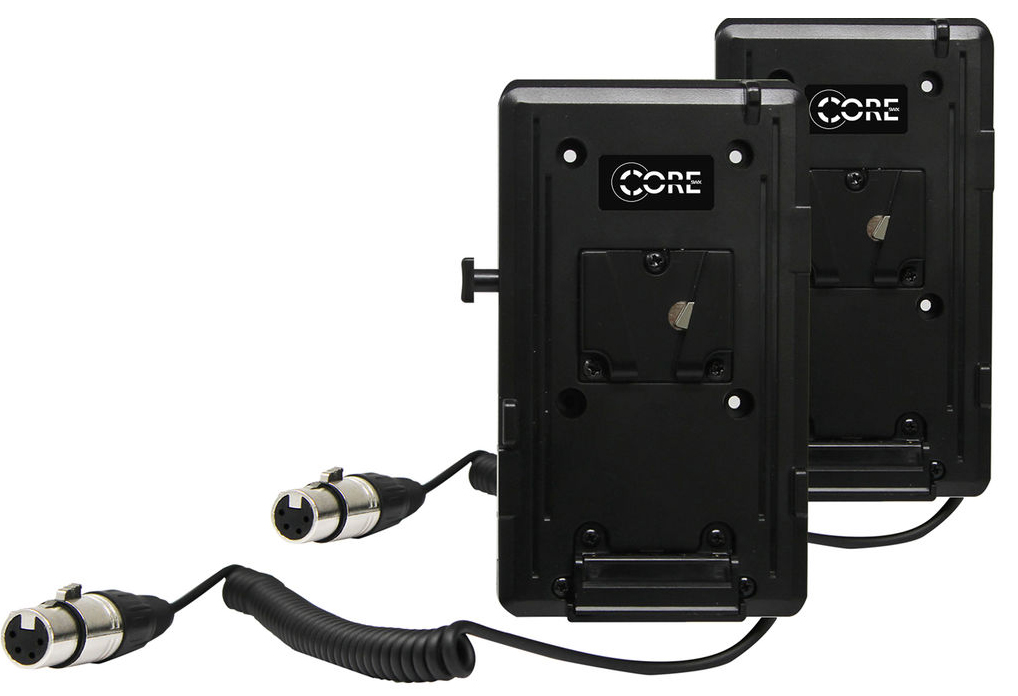

Core SWX Core-SumoVSKU: SUMOV
Core SWX Core-SumoV is a Double V-mount kit with coiled powertap to 12″ XLR 4-pin for Atomos Sumo
Input: DC 11-17vOutput for Monitor: DC 11-17v, Unregulated 4-Pin XLR FemaleOutput for P-tap: DC 11-17v, UnregulatedSize: 8,25 cm x 13,97 cm x 1,27 cmWeight: 0,18 kg

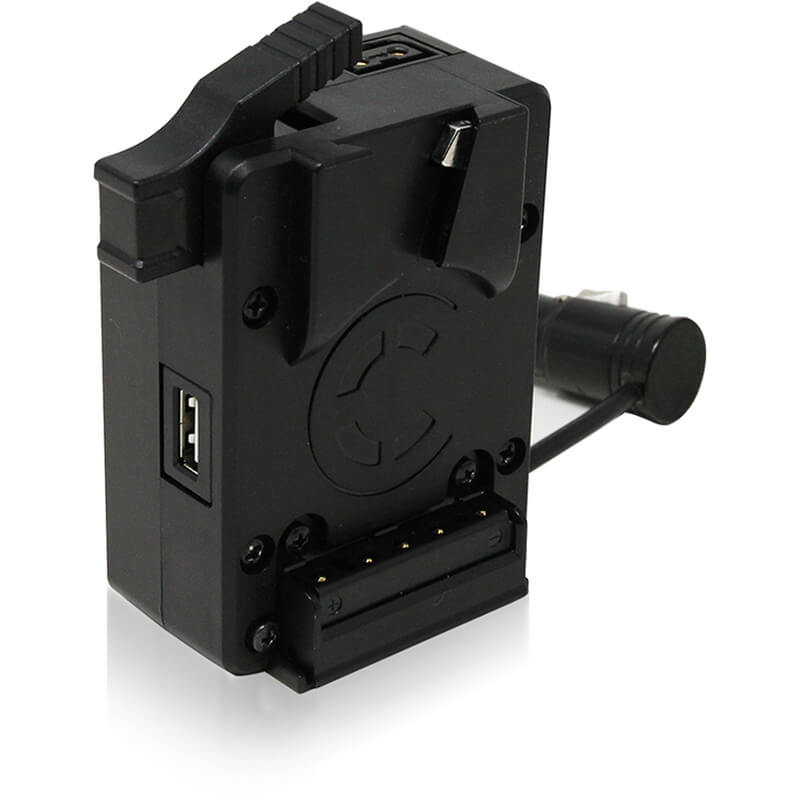

core swx CXV-C3MK
The Core SWX CXV-C3MK v-mount plate is specifically designed for select Canon EOS Cine cameras that accept DC 4-pin XLR input including the Canon C300 Mark III and Canon C500 Mark II. It directly mounts to the accessory bay on the rear of the camera, allowing use of 14.4V V-mount batteries while also leaving the camera’s battery bay available for a BP-A style pack for hotswapping capabilities. To power additional accessories, it’s equipped with two powertaps and one USB.
Direct mount for Canon EOS Cine cameras with DC 4-pin XLR inputInput: 11.9vdc-16.8vdc, UnregulatedOutput for camera: 11.9vdc-16.8vdc, UnregulatedPowertap: DC 11.9-17v, UnregulatedUSB: DC 5v, Unregulated

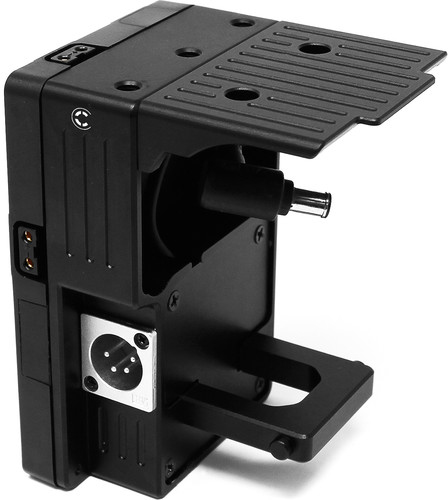

Core SWX Battery Plate for Sony PXW-FX9
SKU: CXV-FX9
The CXV-FX9 mounts directly to the back of the Sony PXW-FX9, as an alternative power option to the Sony XDCA-FX9. The milled aluminum product inserts into the battery slot of the camera and also attaches into the top of the camera (with included screw hardware) to provide a secure platform for mounting v-mount batteries directly onto the FX9 camera. It has a 19.5v DC output with a visual low battery warning LED and a 4-pin XLR DC input for hotswapping between external and on-board power. In addition, it’s equipped with two powertaps to power additional accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.
Input: 11.9vdc-16.8vdc(on-board and 4p XLR DC-in). Inputs are hot swappable.Output for camera: DC 19.5vPowertaps: DC 11.9-17v, UnregulatedSize: 13,72 cm x 8,51 cm x 9,40 cmWeight: 0,54 kgFirmware port: USB MicroLED power indication: Bi-colour(red/green)

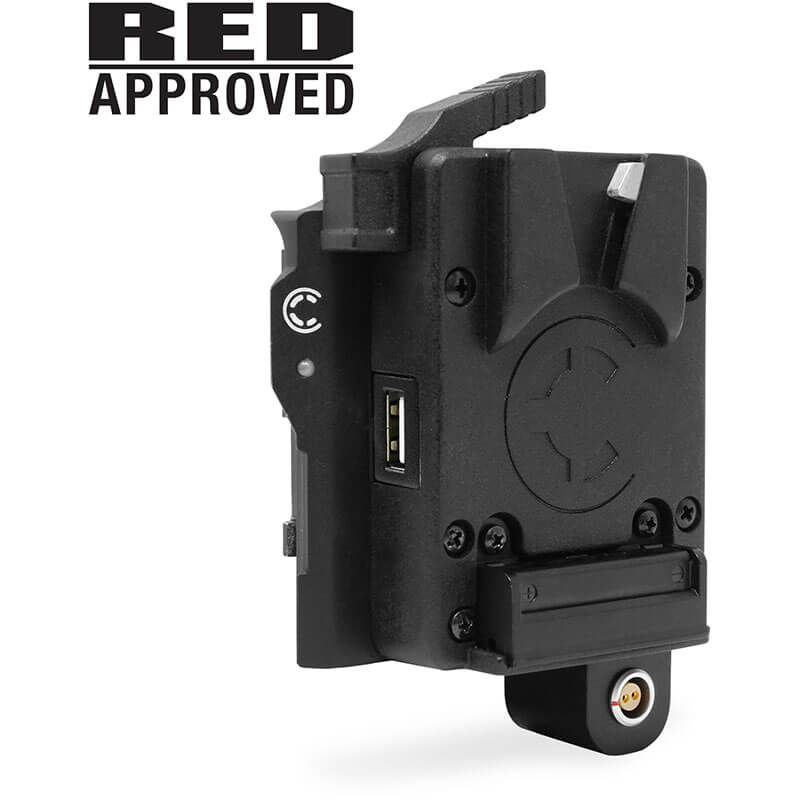

Core SWX CXV-KOMU
BP to V-Mt plate direct mount for RED KomodoLeaves the camera’s DC input available for AC power and battery hot-swapWhen used with “smart” batteries that pass SMBUS data like Core SWX batteries, the camera will read battery percentage and runtimeEquipped with 3 DC output ports: P-Tap, USB, and 2pin LemoThe plate has a reinforced V-Mount locking mechanismRed Approved!
Specifications
Input: 11.9vdc-16.8vdcOutput for camera: DC 7.4v, Dual Canon BP backingPowertap: DC 11.9-17v, Unregulated2p Lemo: DC 11.9-17v, UnregulatedUSB: DC 5v, UnregulatedFirmware port: USB MicroLED power indication: Bi-color(red/green)

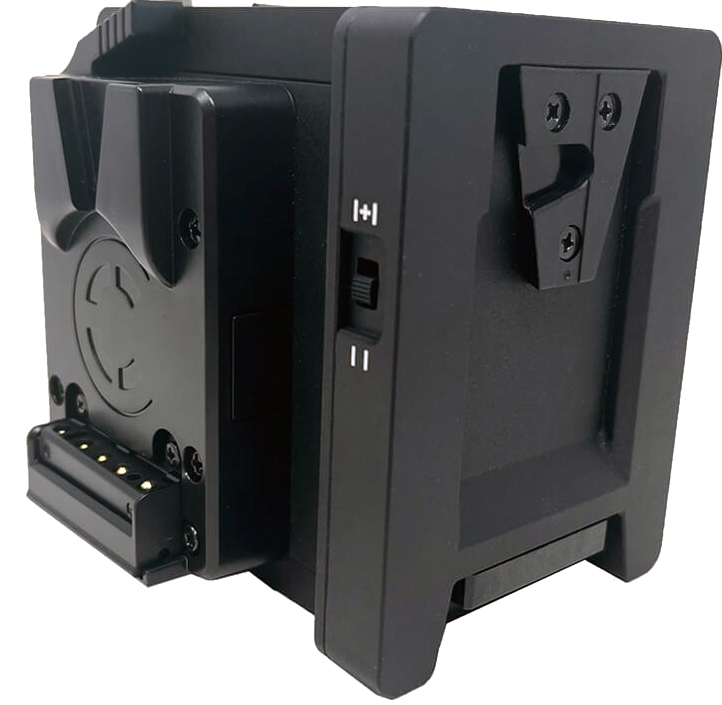

Core SWX CXV-TS-VRAP
The Core SWX CXV-TS-VRAP connects to the v-mount of the DSMC3 Raptor to allow you to attach two V-mount battery packs(full size, mini or micro) to the rear of the camera. Different from some other plates, the all-aluminum build of this plate makes it feel like part of the camera. The build quality is next level and we have added some new features on this plate we’ve never done before.
Since the Raptor outputs are found on the rear of the camera, this hotswap allows you to slide out the right side mount plate to the proper depth so as to not block the inputs and outputs of the Raptor camera. The set screw then locks the positioning in place allowing you to accommodate any size battery packs. A storage slot with magnetic hold keeps the allen key in place to reposition at any time.
Choose between discharging both battery packs at the same time equally or one and then the other. To draw from both batteries equally, switch the button to the “I I” setting. When the switch is in the “I+I” setting, it will draw power from the camera operator side battery first, and then move to the other. Either way you choose, you can still hot swap batteries to keep continuous power going to your camera and accessories. All mode changes should be done prior to camera startup. The switch is deactivated once power is being drawn from the plate.
Features
RED V-Raptor Sharkfin V-mtAllows you to mount two packs and hotswap on the RED Raptor for extended runtimesAllows you to use other size batteries instead of just micro sized packsInput: DC 11-17vOutput for Camera: DC 11-17v, Unregulated ParalleledOutput for 2x P-Tap: DC 11-17v, Unregulated, 7.2A max

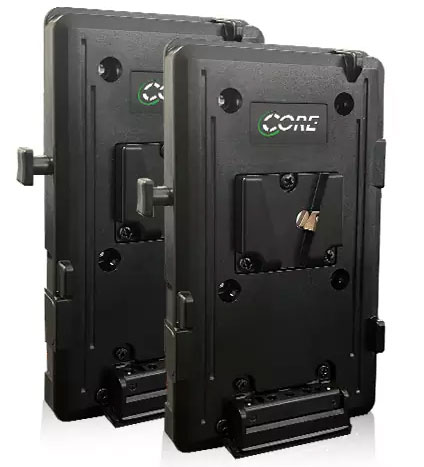

Core SWX Direct Connect for APX-360HVSKU: HLX-2HV-DC
Core’s patent pending Direct Connect plates allow the light owner to quickly exchange the V-mount plates on their Aputure 600-series light to support Apex high voltage packs along with Core’s Helix series of packs. The beauty of these plates is that they require minimal technical skill to connect and still allow you to use all your 14v v-mount packs.To exchange the plates on your Aputure 600-series light unscrew your current v-mount plates, snip the wiring of the existing plates and the connect blocks, clip our direct plates onto the existing wiring and screw back on the Apex Direct Connect plate. No soldering skills or tools required.This modification is only required so to leverage the high voltage efficiencies of the Apex HV packs. Standard APX-360V packs will work without any modification to the lighting ballast.
Input: DC 11-34vOutput for Light: DC 11-34vSize: 8,26 cm x 13,97 cm x 1,27 cmWeight: 0,18 kg

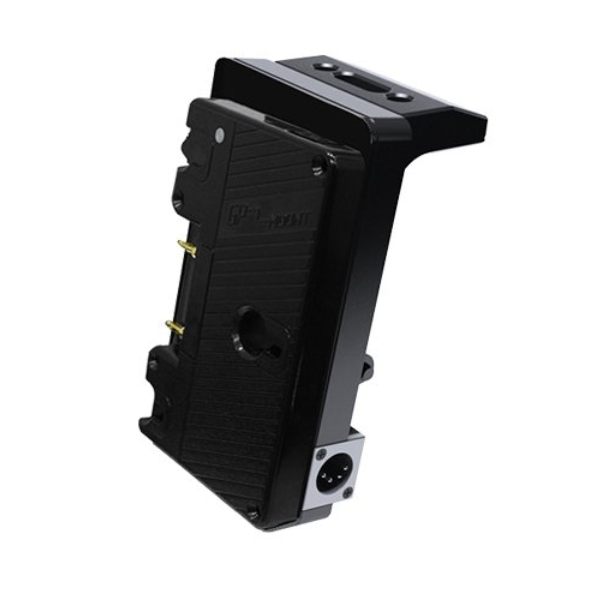

Core SWX GP-A-FS7 Gold Mount Plate for Sony FS7
The GP-A-FS7 3-Stud adapter mounts directly to the back of the Sony FS7, as an alternative power option to the XDCA-FS7. It provides a secure platform for mounting 3-Stud batteries directly onto the FS7 camera. In addition, a 4-pin XLR is provided as a secondary power input option.
Additionally, two p-taps are installed on the plate to offer additional power outputs
Technical data
Input DC 11-17vOutput for Camera DC 11-17v, Unregulated Output for P-TapsSize 82.55 mm x 139.7 mm x 88.9 mmWeight 0.73 kg

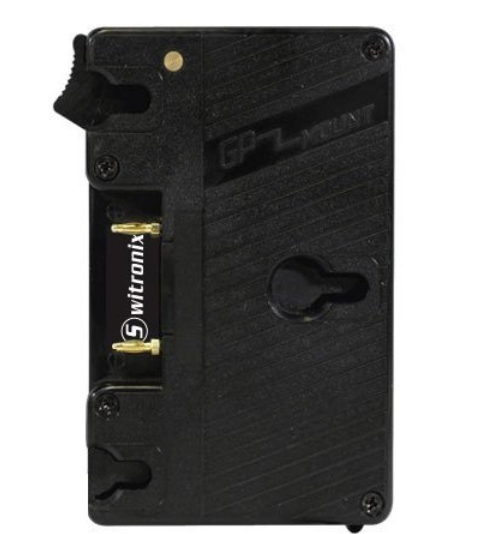

Core SWX Gold Mount plate for Blackmagic URSA
Gold Mount plate for Blackmagic URSA with P-tap and BMD 12way Molex connection
Input DC 11-17vOutput for Camera DC 11-17v, Unregulated Black Magic Camera PinOutput for TWO P-Taps DC 11-17v, UnregulatedSize 8,26 cm x 13,97 cm x 1,27 cmWeight 0,18 kg

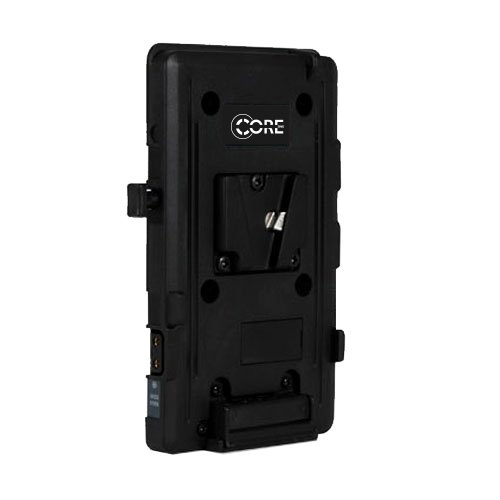

Core SWX GP-S V-Mount Camera Plate
V-Type plate mounts on to the camera to provide a quick release connection with V-Type mount batteries. The Core SWX GP-S includes a P-Tap port to power an on-board light.

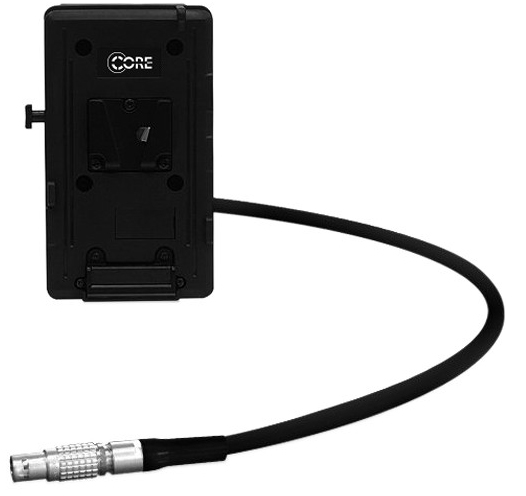

Core SWX GP-S-C3MK2
Core SWX GP-S-C3MK2 is a V-mount Plate with 2 Powertaps and Lemo compatible with the Canon C300 MKII and Canon C200. The GP-S-C3MK2 plate is outfitted with the specific lemo connector needed to power the camera. In addition, the C300 mount plates include two unregulated PowerTap ports to power 12v accessories. The GP-S-C300MK2 will work with all V-Mount battery packs.
Input: DC 11-17vOutput for Camera: DC 11-17vOutput for Two P-Taps: DC 11-17v, UnregulatedSize: 8,25 cm x 13,97 cm x 1,27 cmWeight: 0,18 kg

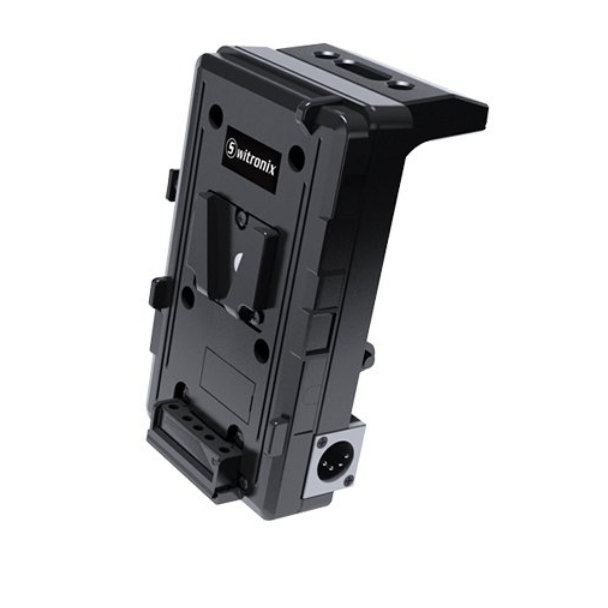

Core SWX GP-S-FS7 V-Mount Battery Plate for Sony PXW-FS7
The GP-S-FS7 V-mount adapter mounts directly to the back of the Sony FS7, as an alternative power option to the XDCA-FS7. It provides a secure platform for mounting V-mount batteries directly onto the FS7 camera. In addition, a 4-pin XLR is provided as a secondary power input option. Additionally, two p-taps are installed on the plate to offer additional power outputs.
GP-S-FS7 Technical data
Input DC 11-17vOutput for Camera DC 11-17v, Unregulated Output for P-TapsSize 82.55 mm x 139.7 mm x 88.9 mmWeight 0.73 kg

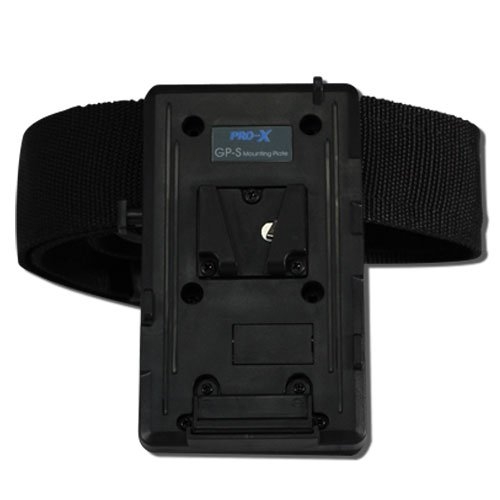

Core SWX GP-S/12 V-Mount Plate with Belt
V-Mount Plate with Belt
The Core SWX GP-S/12 offers a 12v powering option for any 12-14v piece of equipment. The plate includes a heavy-duty belt to allow you to have V-Type battery power waist mounted. When coupled with one of Switronix' cabling options, the unit can power virtually any mobile device.
Input: DC 11-17vOutput for Camera: N/AOutput for P-Tap: DC 11-17v, Unregulated
Includes Heavy Duty Nylon Belt with Buckle.

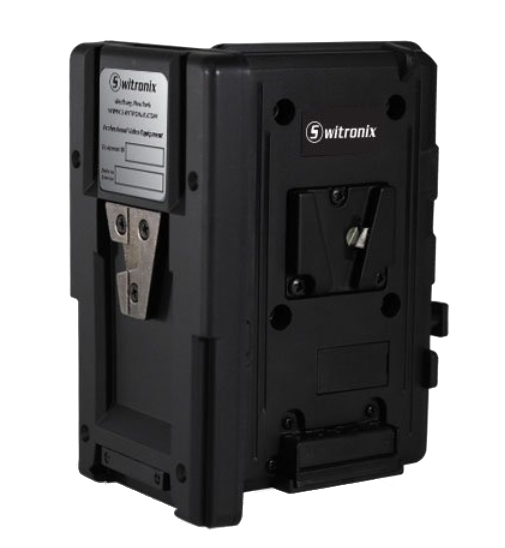

Core SWX GP-TS V-Type HotSwap Adapter Plate
The Core SWX GP-TS Hotswap adapter mounts directly to the existing v-type plate on the camera and allows for continuous battery operation. Because the batteries aren't 'stacked' on one another, you can easily remove the depleted battery while the leaving the other battery connected so that their is no down time. It can provide up to 260wh at only 6lbs.
Not recommended with XP-L190Si battery model. Compatible with all V-Mount Brick Batteries.
V-Type HotSwap Adapter Plate Technical data
Input DC 11-17vOutput for Camera DC 11-17v, Unregulated ParalleledOutput for P-Tap DC 11-17v, UnregulatedSize12.07 cm x 13.97 cm x 8.89 cmWeight 0.73 kg

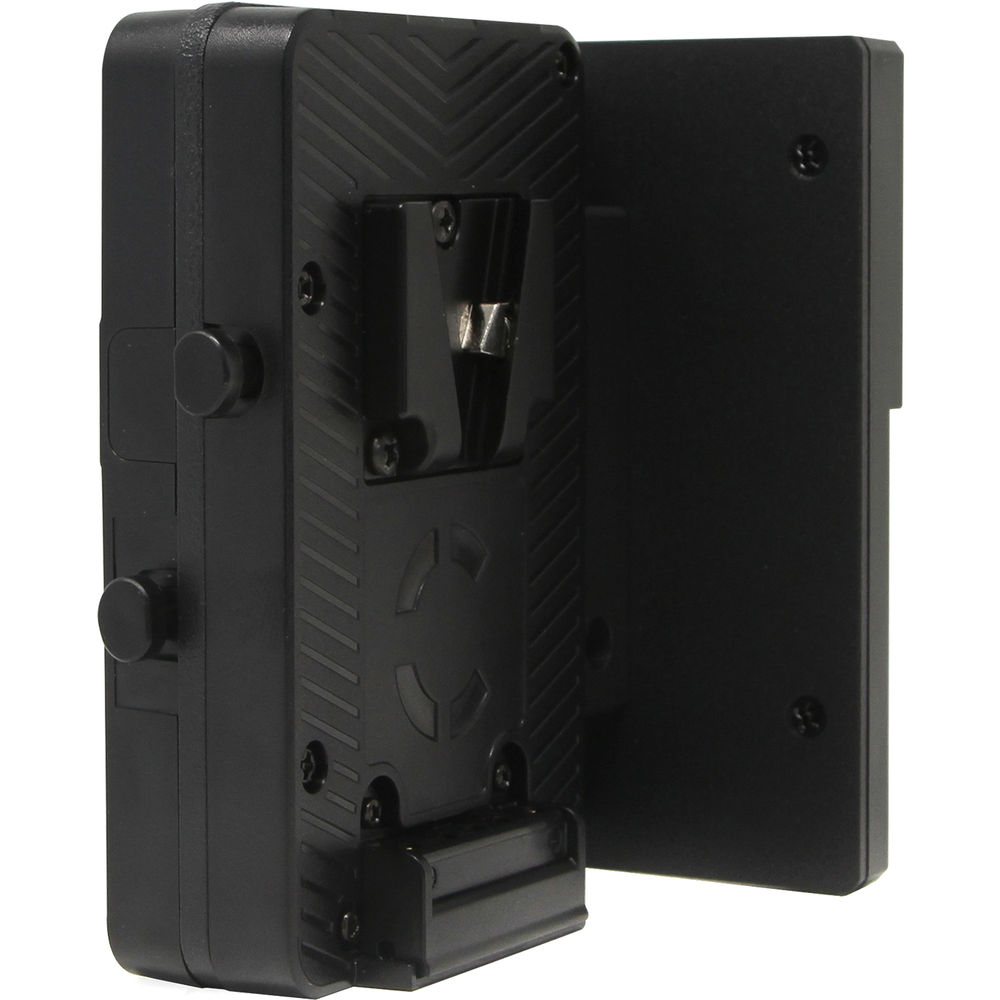

Core SWX GP-TS-SFF
The Core SWX GP-TS-SFF is a short form factor Hotswap Shark-fin adapter that mounts directly to the existing v-type plate on the camera. It allows for continuous battery operation, and for additional accessories, it has 4 powertaps. Since the batteries aren’t ‘stacked’ on one another, you can easily remove the depleted battery while leaving the other battery connected so that there is no down time. Specification:
Input: DC 11-17vOutput for Camera: DC 11-17v, Unregulated ParalleledOutput for 4x P-Tap: DC 11-17v, Unregulated, 7.2A maxSize: 11,68 cm x 8,89 cm x 11,94 cmWeight: 0,54 kg

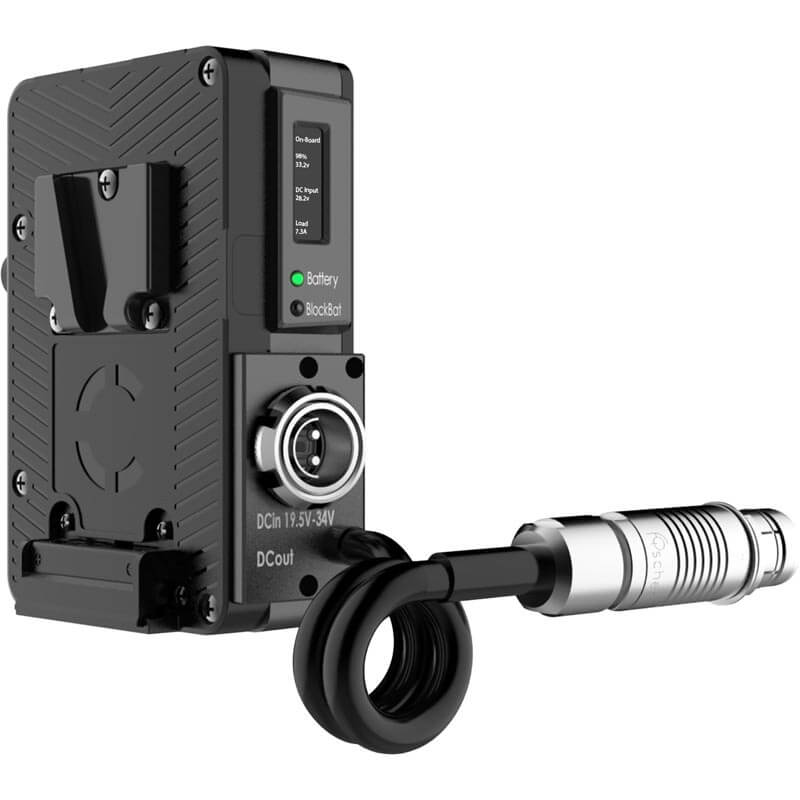

Core SWX Helix PMC Direct Mount for ARRI
SKU: HLX-PMC-V
PMC (Power Management Control) Direct Mount Plate for ARRI - V-mount
The HLX Power Management Control mount plates take power management concerns away from the camera, and provide a “hot swappable” platform between on-board and block battery/AC mains, while providing transparency to the AC on set. The mount plate system uses a standard 2-pin Fischer connector for the power input on the plates, simplifying the array of cables production companies and rental companies need to inventory, while addressing many different camera makes.
The on-board LCD monitors input percentage/voltage of the power sources, as well as current draw of the entire camera setup.
The HLX-PMC-V mounts directly to ARRI cameras, and has a v-mount front. It also accepts standard V-mount 14v battery packs (not for ARRI LF applications).
Features
V-mount Power Management Control plate for ARRI LF and Alexa cameraDirectly mounts onto cameraOn-Board Helix packs output up to 33.6vdcPrioritizes Block battery/AC Mains 2-pin Fischer InputOn-board LCD monitors power levelAlso accepts 14v v-mount packs(not for LF application)
PMC Mount plates
On-board HELIX packs output up to 33.6vdcProvides high voltage to the camera system to maximize efficiencyPrioritizes Block Battery/AC Mains and universalizes camera systems to 2pin FischerAccepts standard 14v v-mount and gold mount(for all applications besides LF)LCD provides full transparency on power levels and management
Technical data
Mount input: DC 11-34v Fischer 2-pin DC input: DC 19.5-34v Output for Camera/P-Taps: DC 11-34v/11-17v Unregulated

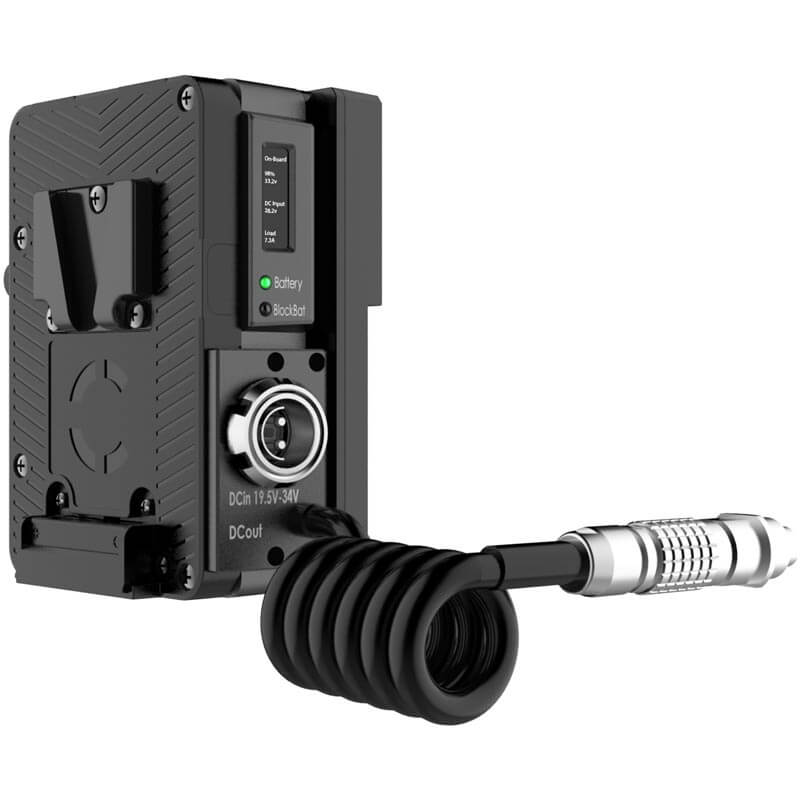

Core SWX Helix Power Management Control Mount for RED RANGER Cameras (V-Mount)
PMC (Power Management Control) Mount Plate for Red Ranger - V-mount
The HLX Power Management Control mount plates take power management concerns away from the camera, and provide a “hot swappable” platform between on-board and block battery/AC mains, while providing transparency to the AC on set. The mount plate system uses a standard 2-pin Fischer connector for the power input on the plates, simplifying the array of cables production companies and rental companies need to inventory, while addressing many different camera makes.
The on-board LCD monitors input percentage/voltage of the power sources, as well as current draw of the entire camera setup.
The HLX-RR-V is v-mount to v-mount for RED Ranger. FeaturesV-mount Power Management Control plate with V-mount backing for RED Ranger Camera4p Lemo CableOn-Board Helix packs output up to 33.6vdcPrioritizes Block battery/AC Mains 2-pin Fischer InputOn-board LCD monitors power levelsAlso accepts 14v v-mount packs
PMC Mount plates
On-board HELIX packs output up to 33.6vdcProvides high voltage to the camera system to maximize efficiencyPrioritizes Block Battery/AC Mains and universalizes camera systems to 2pin FischerAccepts standard 14v v-mount and gold mount(for all applications besides LF)LCD provides full transparency on power levels and management
Technical data
Mount input: DC 11-34v Fischer 2-pin DC input: DC 19.5-34v Output for Camera/P-Taps: DC 11-34v/11-17v Unregulated

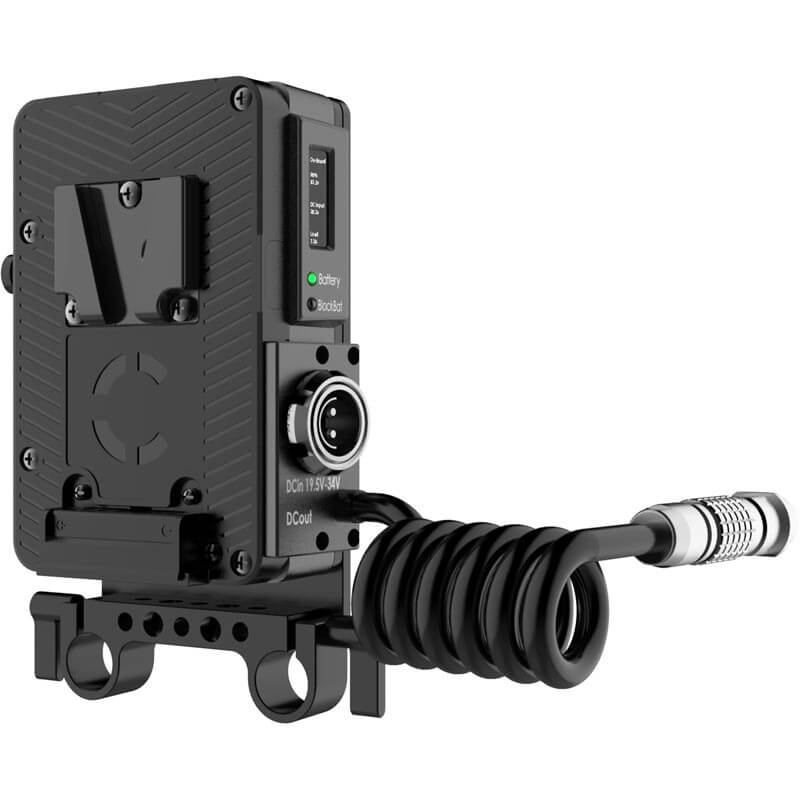

Core SWX Helix PMC Rail Mount for ARRI Cameras
SKU: HLXR-PMC-V
The HLX Power Management Control mount plates take power management concerns away from the camera, and provide a “hot swappable” platform between on-board and block battery/AC mains, while providing transparency to the AC on set. The mount plate system uses a standard 2-pin Fischer connector for the power input on the plates, simplifying the array of cables production companies and rental companies need to inventory, while addressing many different camera makes. The on-board LCD monitors input percentage/voltage of the power sources, as well as current draw of the entire camera setup. The HLXR-PMC-V mounts has rail mount for ARRI cameras, and has a v-mount front. Features:
V-mount Power Management Control plate for ARRI Mini LF and Mini Alexa cameraMounts to 15mm rods.On-Board Helix packs output up to 33.6vdcPrioritizes Block battery/AC Mains 2-pin Fischer InputOn-board LCD monitors power levelsAlso accepts 14v v-mount packs(not for LF application)
PMC Mount plates
On-board HELIX packs output up to 33.6vdcProvides high voltage to the camera system to maximize efficiencyPrioritizes Block Battery/AC Mains and universalizes camera systems to 2pin FischerAccepts standard 14v v-mount and gold mount(for all applications besides LF)LCD provides full transparency on power levels and management
Technical data
Mount input: DC 11-34v Fischer 2-pin DC input: DC 19.5-34v Output for Camera/P-Taps: DC 11-34v/11-17v Unregulated

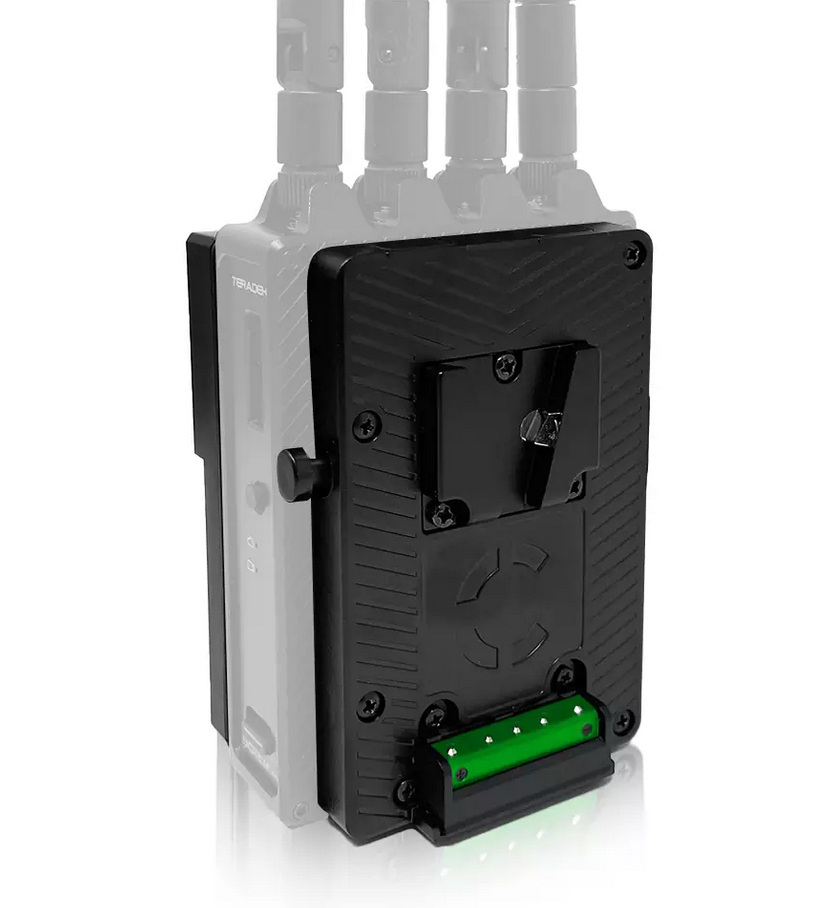

Core SWX Helix retrofit V-mount plates for Teradek MAX transmitters
SKU: HLX-TK-V
Core SWX’s Helix retrofit plates for Teradek MAX transmitters allows you to mount the Teradek transmitter in-line with Helix V-Mount on-board battery power while maintaining high voltage throughput to the camera.
Current Teradek MAX TX’s only support 14v battery systems. The Helix retrofit V-mount plates provide a solder-less, interconnect solution to exchange the current V plates, for Helix V battery mount plates. As the MAX TX’s can only accept up to 28v, there is a limitation for in-line usage of the transmitters in high voltage camera builds. The Helix retrofit plates provide a safe and secure power pass through to the high voltage accepting camera while providing a DC 12v 2pin connection to safely power the Teradek MAX transmitter.
To complete the conversion you must unscrew the two plates on the MAX transmitter and disconnect the power pass through(yellow 2pin connector) and transmitter power connector(red 2pin connector). Then connect the Helix power pass through connector through the transmitter, and reconnect the transmitter power connector from the Helix battery mount to the transmitter. The entire process takes less than 10minutes!
HLX-TK-V technical data
Input: DC 11-34v Output for Camera: DC 11-34v(dependent on on-board battery connected to mount plate) Output to transmitter: 12v Dimension: 8,26 cm x 13,97cm x 1,27 cm Weight: 0,18 kg Compatibility: Supports standard 14v V-mt for High Voltage, only supports Helix V-mt

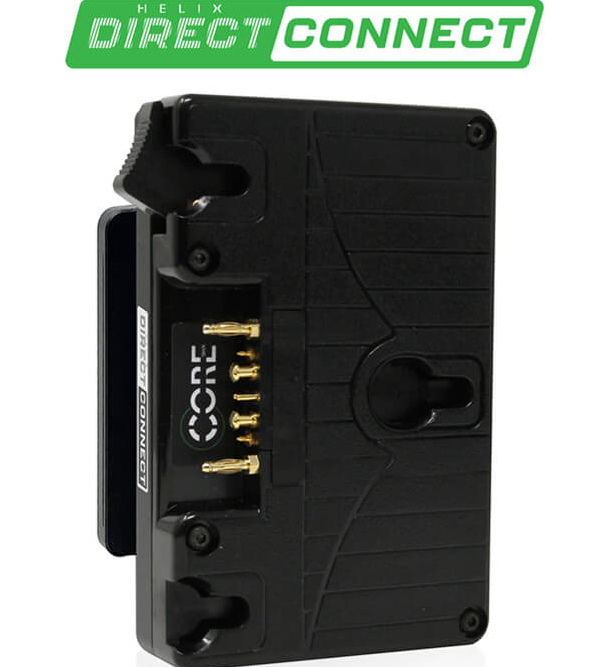

Core SWX HLX-BABG-S35
SKU: HLX-BABG-S35
The HLX-BABG-S35 mounts directly to ARRI Alexa 35 to provide a direct connection to the camera when removing the B-mount connection, to accept Helix G-mt battery packs. The mount plate provides high voltage to the camera and will also work in conjunction with ARRI PDM-1 and AEM-1 modules.
Direct connect to use 3-stud batteries on ARRI Alexa 35Seamlessly integrates with the ARRI Alexa 35Supports all Helix G-mt packs to provide high voltage to the cameraMount input: DC 20-34vOutput for Camera: DC 20-34v

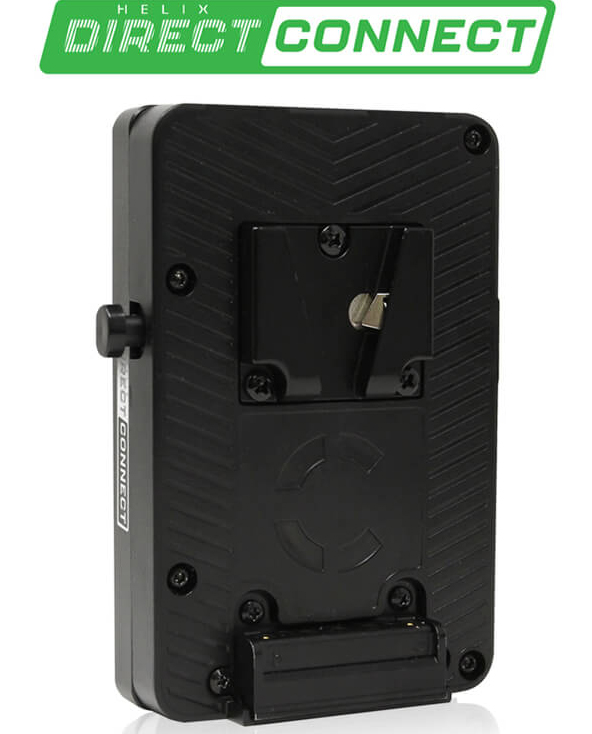

Core SWX HLX-BABV-DC
SKU: HLX-BABV-DC
The Core SWX HLX-BAB-V mounts directly to ARRI LF and Alexa to provide a direct connection to the camera and has a v-mount front. When coupled with HELIX packs, it outputs up to 33.6vdc. It also accepts standard V-mount 14v battery packs. Fearures:
V-mount Helix battery mount plate for ARRI LF and Alexa cameraDirectly mounts onto cameraOn-Board Helix packs output up to 33.6vdcAlso accepts 14v v-mount packs
Technical data
Mount input: DC 11-34v Output for Camera/P-Taps: DC 11-34v, Unregulated

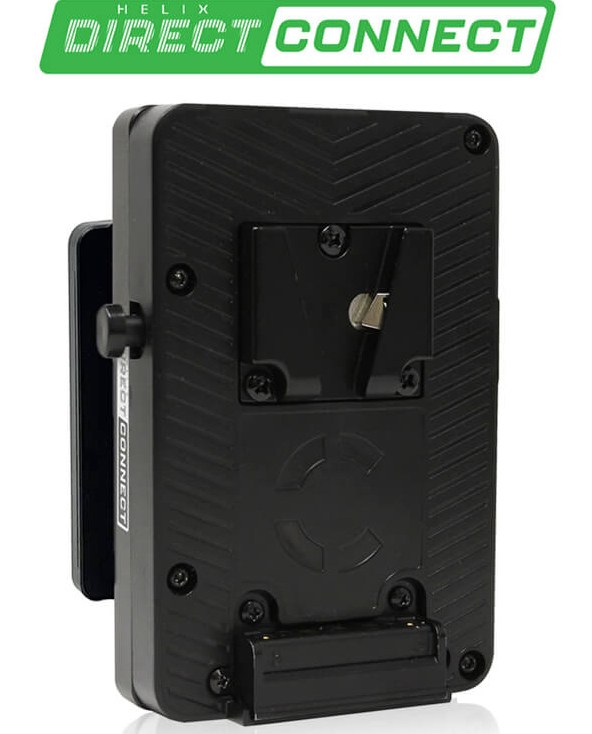

Core SWX HLX-BABV-S35
SKU: HLX-BABV-S35
The HLX-BABV-S35 mounts directly to ARRI Alexa 35 to provide a direct connection to the camera when removing the B-mount connection, to accept Helix V-mount battery packs. The mount plate provides high voltage to the camera and will also work in conjunction with ARRI PDM-1 and AEM-1 modules.
Direct connect to use v-mount batteries on ARRI Alexa 35Seamlessly integrates with the ARRI Alexa 35Supports all Helix V-mount packs to provide high voltage to the cameraMount input: DC 20-34vOutput for Camera: DC 20-34v

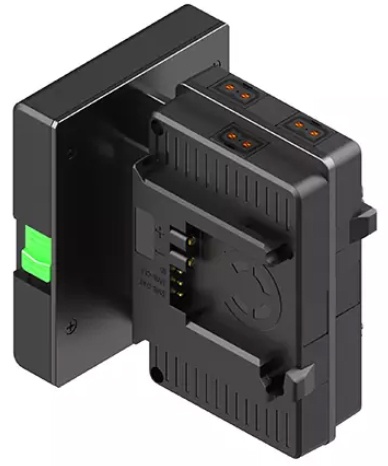

Core SWX HLX-TB-SFF
The HLX-TB-SFF is a B-mount to B-mount sharkfin plate that accepts HELIX B-mount battery packs. When two HELIX battery packs are on-board the adapter will output 20-34vdc with one pack or two.
To insure there is enough power in one of the packs to facilitate a hotswap either stagger the packs when in discharge(start operating with one pack on, and then place another pack on after 10min. of usage) or exchange one of the depleted packs off the hotswap mount when 10% is remaining. This way the remaining pack will have ample power to carry the load of the rig.
Features
B-mount hotswap/sharkfin plateWorks with ARRI’s B-mount standardAllows you to mount two packs on a B-mount deviceMount input: DC 20-34vOutput for Camera: DC 20-34v, Unregulated requires HLX mount plate for 20-34v transmission

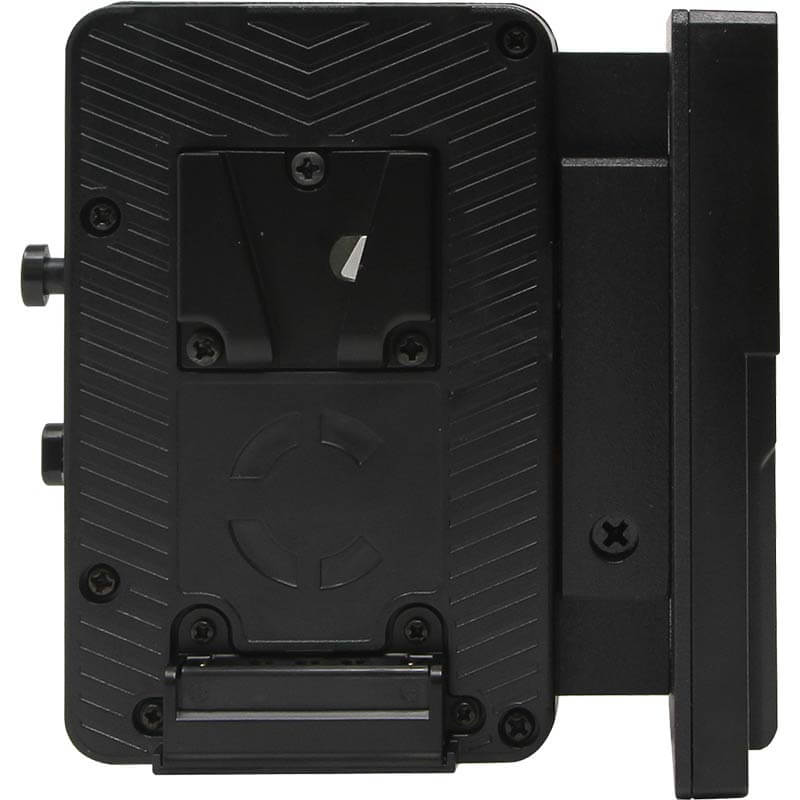

Core SWX HLX-TS-SFF
SKU: HLX-TS-SFF
The Core SWX HLX-TS-SFF is a v-mount to v-mount sharkfin plate that accepts HELIX battery packs and standard 14v packs. When two HELIX battery packs are on-board and connected to a HLX mount plate, the adapter can output both 11-17vdc and 22-34vdc. A separate pin set for high voltage allows for safe power transmission. Features
Hotswap/Sharkfin V-Mount PlateAccepts both Helix packs to connect to HLX-BAB-V mount plate to output 33.6vAlso accepts 14v V-mount packs for parallel standard voltage operation
Technical data
Mount input: DC 11-34v Output for Camera/P-Taps: DC 11-34v, Unregulated
€329.00*
gross: €391.51
