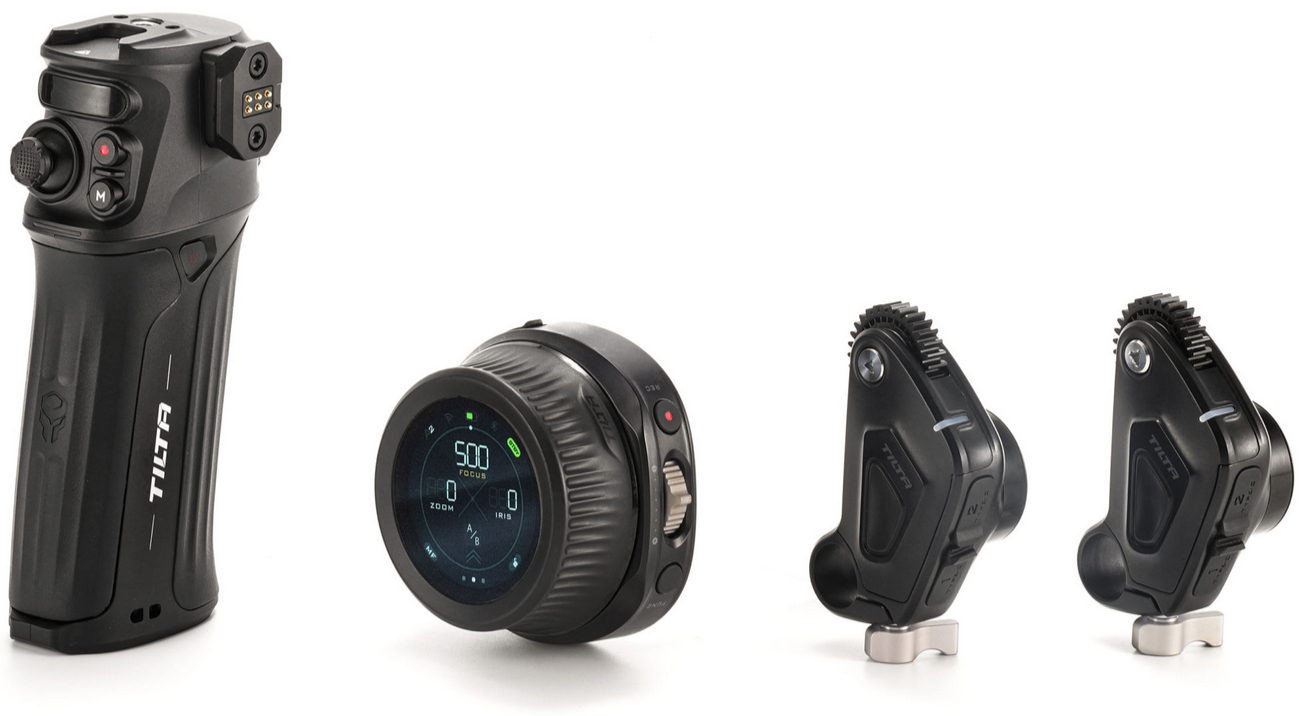

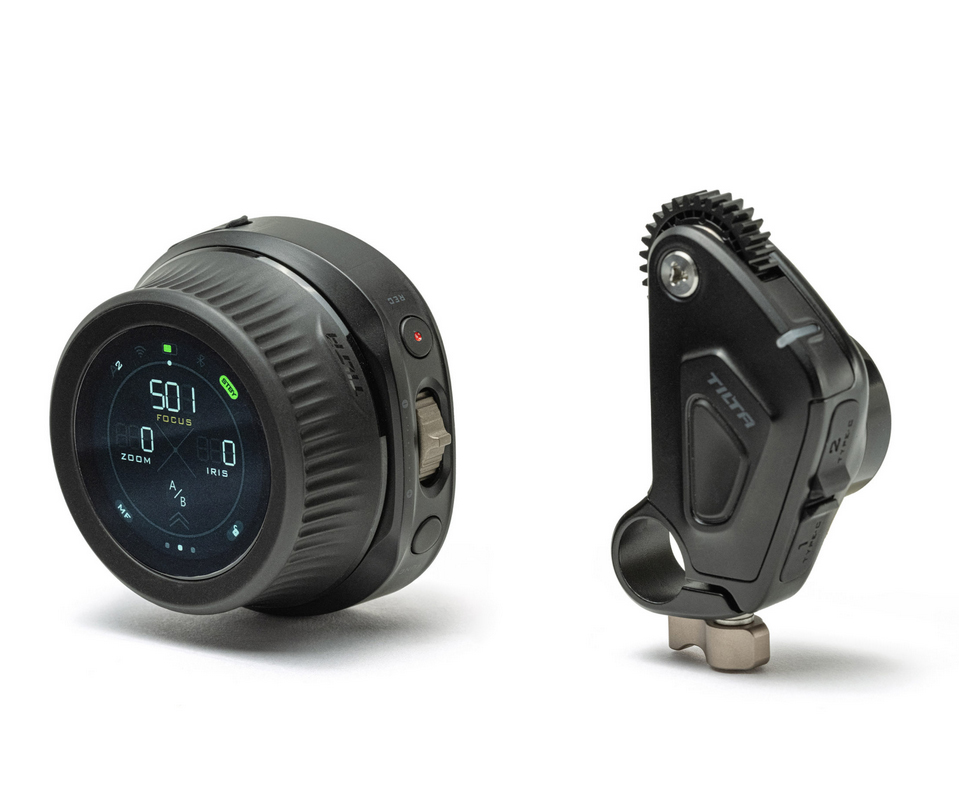

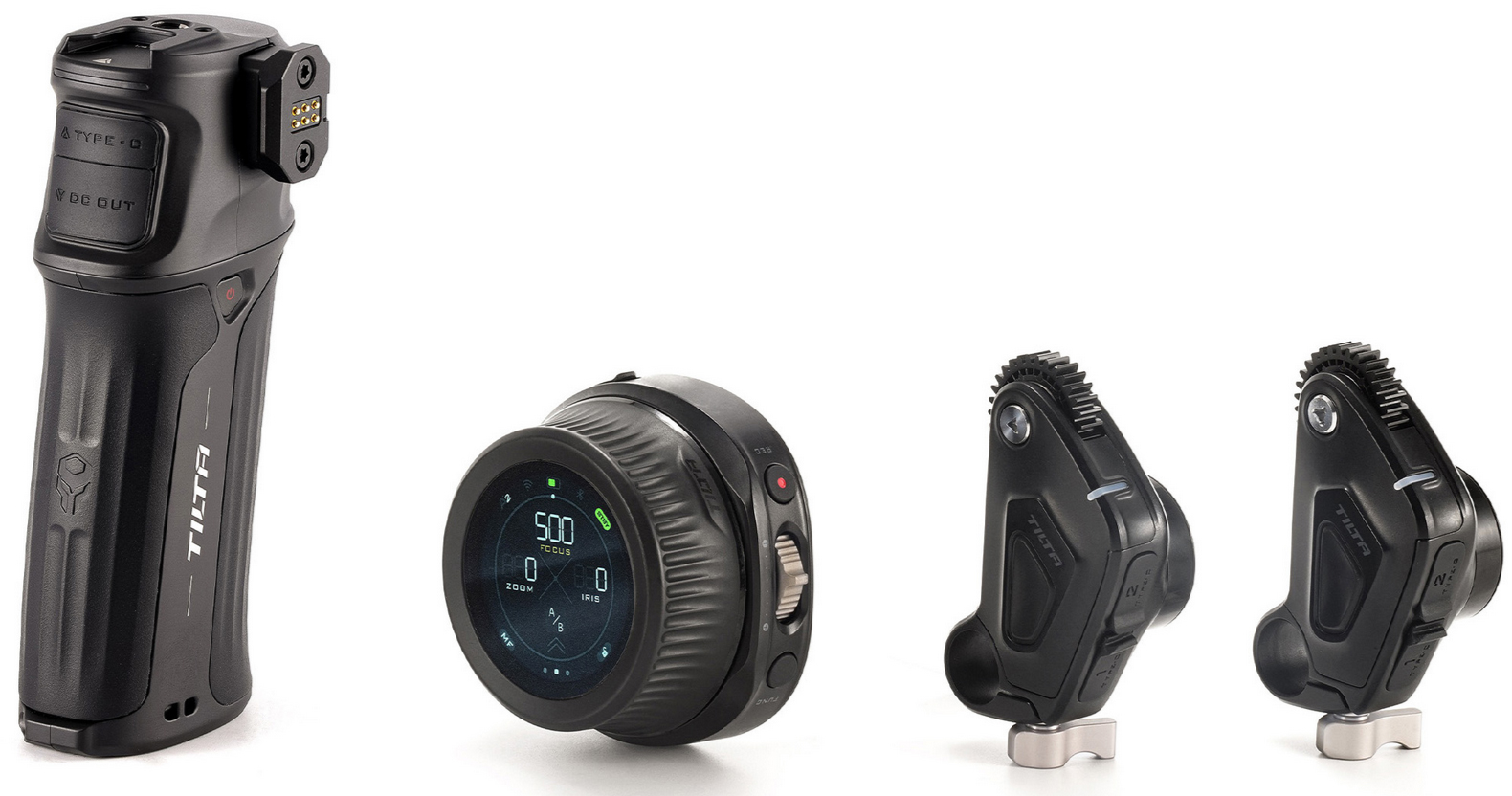

Tilta Nucleus Nano II Wireless Lens Control System
€300.00*
gross: €357.00
Tilta Nucleus Nano II
SKU: WLC-T05
The Nano II allows users to wirelessly adjust camera settings via WiFi, Bluetooth, and the motor’s USB-C port for compatible camera systems such as Canon, Sony, Black Magic Design and more.
Equipped with a high-performance motor, the TILTA NUCLEUS Nano II delivers five times the torque of its predecessor with convenient USB-C power input and output ports, perfect for chaining together multiple motors from a single power source.
The TILTA Nano II is our most compatible system to date featuring compatibility with DJI RS2, RS3 Pro, DJI Focus Motors, Nucleus M and the previous generation of Nucleus Nano, ensuring a smooth workflow for users who already utilize previous iterations of the Nucleus Ecosystem.
High Performance Motor
5 Times the torque of Nucleus N.
Auto-adjustable torque design.
High-efficiency cooling system.
Three Main Displays
Camera control, focus control, motor control, all in one.
Touch Control
Intuitive interaction at your finger tips.
Improved Power Supply
Upgraded USB-C port. Efficient power management.
Multi-channel Communication
Maximum 4-channel control. Create infinite possibilities.
In the box
1 x Nucleus Nano II Hand Wheel Controller(12009.00002.00.00)1 x Nucleus Nano II Motor(12009.00001.00.00)1 x USB-C Power Cable (30cm)(21114.00061.00.00)1 x 15mm Rod Holder to Dual 1/4″”-20 Adapter – Black(12013.00010.00.00)1 xAluminum Rod 15x100mm – Black(R15-100-B)1 x Photographic Lens Follow Focus Gear Ring(FR-T03)1 x 3/16 Allen Key(32123.00037.00.00)1 x Instruction Manual1 x Soft Carrying Case for Nucleus Nano II
Free shipping

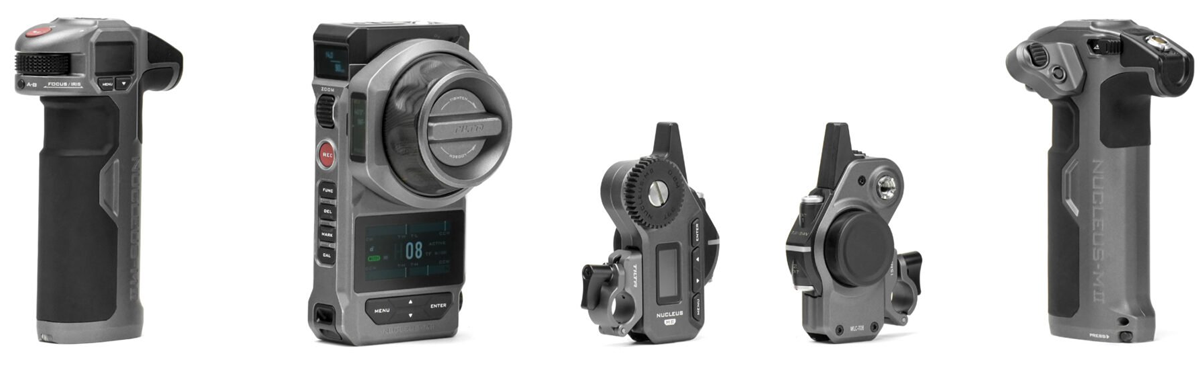

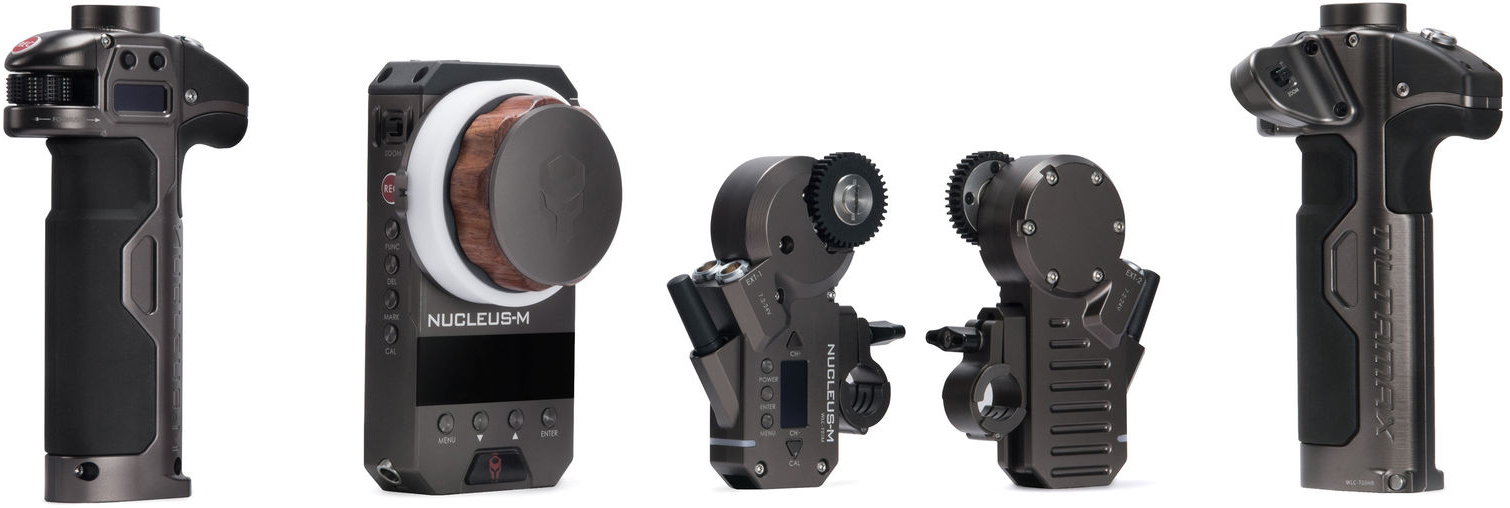

TILTA Nucleus-M Wireless Follow Focus System
€1,420.00*
gross: €1,689.80
TILTA Nucleus-M
SKU: WLC-T03
The TILTA Nucleus-M is a revolutionary wireless follow focus system. Have full control of focus, iris, and zoom on Cine lenses or compatible "cine-moded" DSLR lenses. Ideal for 3-axis gimbals, shoulder mounts systems, and drone shoots.
1. The Nucleus-M is a wireless 3 Channel system. 2. Connections between the FIZ hand unit and the two hand grips to the motors are completely wireless. 3. Each motor has a built-in MDR unit, saving space and setup time. 4. A single motor can be powered directly from the camera’s battery though a 7-Pin to P-TAP cable then daisy chained via 7-Pin to 7-Pin cable to run additional motors. 5. There is no limit on the amount of motors an operator can attach per channel. 6. The FIZ hand unit and two handle grips have a wireless range of 1000 feet. 7. The signal from the FIZ hand unit can be upgraded to 1 1/4 miles with an additional accessory. 8. Both hand grips and FIZ hand unit run off (2) 18650 batteries. (Batteries are NOT included.) 9. When fully charged the batteries in the hand grips can last up to 2 days. 10. The batteries in the FIZ unit can last up to 10 hours. 11. FIZ hand unit is capable of controlling 3 channels – focus, zoom, and iris as well as overriding the hand grips. 12. 0.8 mod, 35-tooth, 32 pitch gear with a face width of 10mm 13. Motors can calibrate on lenses without hard stops – such as photo-lens with follow focus gears. 14. Motors fit standard 15mm and 19mm Rods 15. Ideal for Gimbal, Drone, and Shoulder-mounted setups
Technical data
Color: Gunmetal Grey Material: Aluminum-Alloy Stainless Steel ABS Plastic Rubber Brazilian Rosewood Weight: FIZ Hand Unit (with focus disk but no batteries): 0,44 kg FIZ Hand Unit (with focus disk and batteries): 0,53 kg Right Handle Grip (no batteries or adapters): 0,26 kg Left Handle Grip (no batteries or adapters): 0,24 kg Arri Rosette Male to Handle Grip Adapter: 0,07 kg 25mm/30mm Gimbal to Handle Grip Adapter: 0,04 kg Motor (no rail adapter): 0,19 kg Motor with 15mm rail adapter: 0,22 kg Motor with 19mm rail adapter: 0,22 kg Motor Dimensions: Length/Height: 11,43 cm Width: 6,98 cm (motor plus rail adapter) Width: 6,68 cm (ports to tip of gear) Width: 8,25 cm (end to end furthest points) Depth: 1,60 cm (rail mount section) Depth: 1,90 cm (base section) Depth: 3,51 cm (motor section)
In the box
1 x Wireless FIZ Hand Unit2 x Brushless Wireless Motors with 19mm Rod Support and 15mm Rod Bushings1 x Wireless Handle Left (Focus)1 x Wireless Handle Right (Iris, Zoom)4 x Follow Focus marking disks1 x 7-Pin to 740mm P-TAP Motor Power Cable1 x 296mm 7-Pin to 7-Pin Straight Motor Connection Cable1 x 180mm 7-Pin to 7-Pin Straight Motor Connection Cable1 x 18650 4 Slot Battery Charger2 x Handle to Arri Standard Rosette Adapter2 x Handle to Gimbal Bar Adapter (Compatible with 25mm/30mm Diameter)1 x Wireless FIZ Hand Unit Strap1 x Hard Shell Waterproof Safety Case
ATTENTION! No 18650 batteries included. Nucleus-M set needs 6 x 18650
