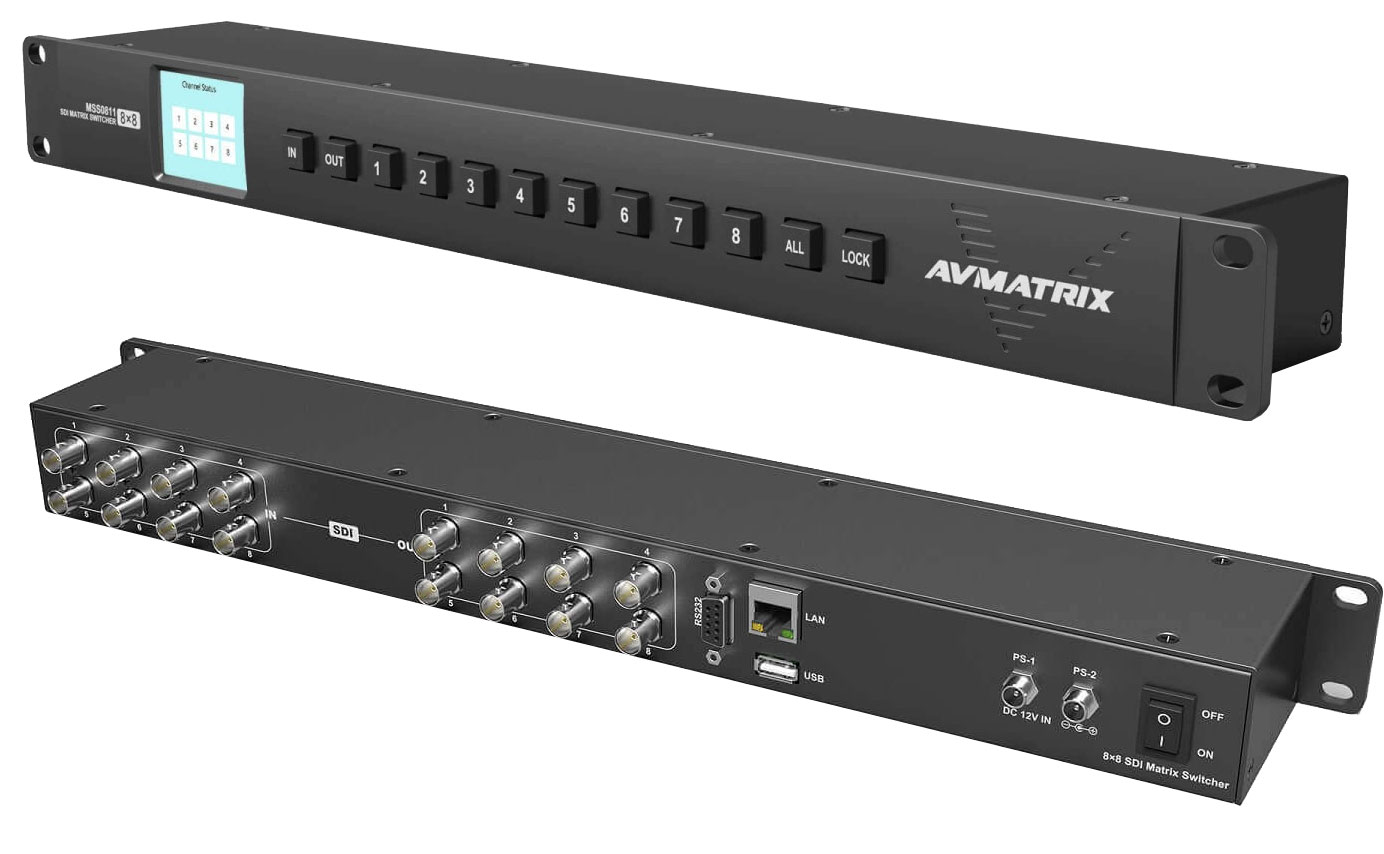

AVMATRIX MSS0811 8x8 3G-SDI Matrix Switcher (1 RU)
€799.00*
gross: €950.81
AVMATRIX MSS0811
The 1 RU 8 x 8 3G-SDI Matrix Switcher from AVMATRIX accepts eight channels of input and can drive them to eight separate output feeds. It includes a multi-format technology that detects multiple video format sources of SD/HD/3G-SDI (level A&B) and DVB-ASI signals at the same time and routes the multiple video destinations in 1080, 720, SD, NTSC, and PAL. It is controlled by manual switches on the front of the device and via RJ45 and RS-232 ports for software control as well as a USB Type-A port for keyboard control. Two 12 VDC power adapters are included to provide redundant power.
Features
Multi-format technology can auto-detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destinations in NTSC and PAL SD, 720p, 1080 at any frame rateFull control from the front panelThe current channel status can be viewed visually from the 2.2" LCD screenLock buttonPC control software allows you to connect a computer via Ethernet or via the RS-232 serial portUSB keyboardRedundant power supplyCompact design8 x 3G-SDI Inputs / 8 x 3G-SDI OutputsYUV Color SpaceLevel A and B Signals SupportedDVB-ASI Interface CompatiblePC Software ControlFront-Panel Button ControlsRJ45, RS-232 and USB for Remote ControlSDI Input Auto Detection and EqualizationRedundant Power Design
Free shipping

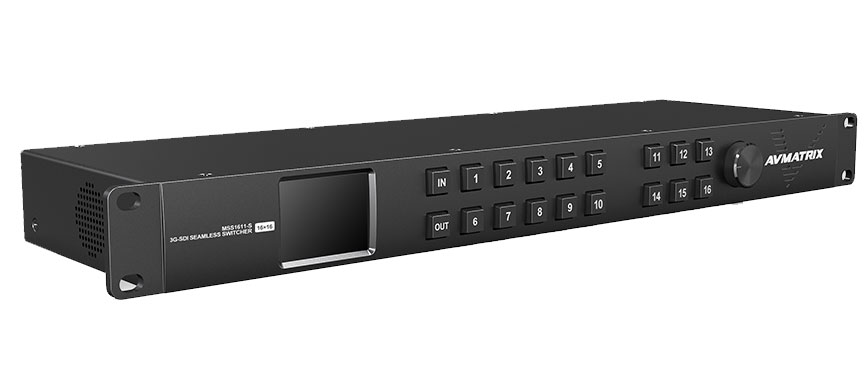

AVMATRIX MSS1611-S 16×16 Seamless SDI Matrix Switcher
€1,299.00*
gross: €1,545.81
AVMATRIX MSS1611-S
MSS1611-S is the perfect solution for a large broadcast project. The compact SDI routing switcher features 16 inputs and 16 outputs, redundant power connections and an elegant machined metal front panel with 2.2 inch LCD for routing label display. Routing can be performed by direct button selection and the spin knob controller. The 3G-SDI seamless matrix switcher supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 270Mbit/s and 3Gbit/s. Built-in frame synchronizer support simultaneous input of signal of different resolution frame rates, which can realize seamless switching without black screen. It can conveniently controlled by front panel button, PC software via LAN/RS-422.
Video input: 3G-SDINumber of inputs: 16Overhead inputs: 3G-SDIOverhead Outputs: HDMIOverhead Outputs: SDIInternal Recording: YesScaler on inputs: YesFeatures: Multiviewer/ Quadrature
