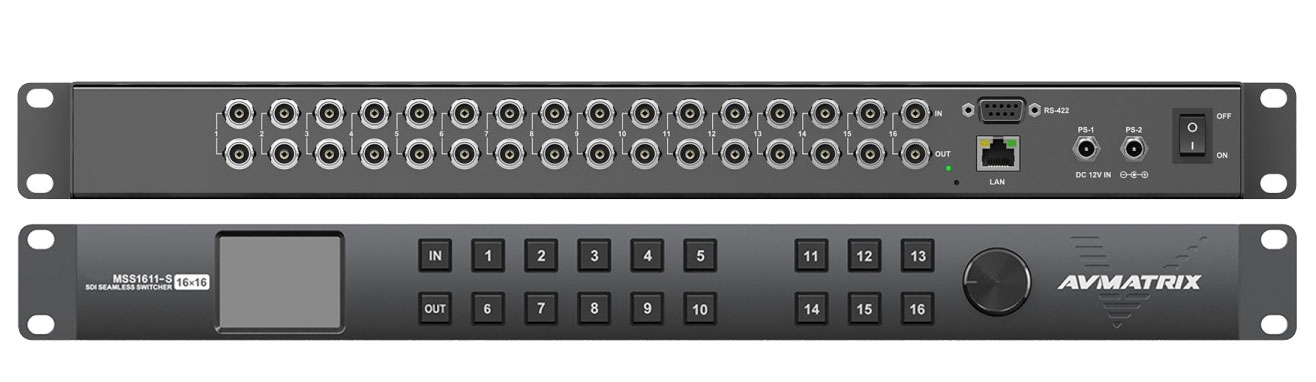

AVMATRIX MSS1611-S 16×16 Seamless SDI Matrix Switcher


MSS1611-S is the perfect solution for a large broadcast project. The compact SDI routing switcher features 16 inputs and 16 outputs, redundant power connections and an elegant machined metal front panel with 2.2 inch LCD for routing label display. Routing can be performed by direct button selection and the spin knob controller. The 3G-SDI seamless matrix switcher supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 270Mbit/s and 3Gbit/s. Built-in frame synchronizer support simultaneous input of signal of different resolution frame rates, which can realize seamless switching without black screen. It can conveniently controlled by front panel button, PC software via LAN/RS-422.

  • Video input: 3G-SDI
  • Number of inputs: 16
  • Overhead inputs: 3G-SDI
  • Overhead Outputs: HDMI
  • Overhead Outputs: SDI
  • Internal Recording: Yes
  • Scaler on inputs: Yes
  • Features: Multiviewer/ Quadrature
Related links of the manufacturer

Accessory Items

Free shipping
Lumantek ez-LINE VM16 16 x 16 HD-SDI ROUTER
Lumantek ez-Line Router VM16 ez-Line Router VM16 is a 16 x 16 router supporting SD/HD/3G SDI signals. Being able to send sharp and clear signals, the Lumantek VM16 can be a splitter and a selector. ez-Line VM16 has a few ways to control. One of the controllers is the RCP unit. You can install this unit along with the router to distribute your 16 signals to appropriate ports. Software Control Another function that ez-Line Router VM16 provides is the ability to control through computer software. The user can connect the router to a PC using an Ethernet cable and control through a software. SDK & API for your application If you need to modify the control to your needs, then LUMANTEK will provide SDK & API for you. Create your own commands to control ez-Line VM16. Technical data InputSDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x16Reference Input: B.B , TRI (BNC 75Ω ) x1OutputHD-SDI: SD/HD/3G-SDI (BNC 75Ω) x16ConnectionsRemote Control: RS-422 (RJ45)x1Ethernet: Ethernet Support (RJ45)x1Update : Debug (Micro-USB)x1ElectronicalPower Input : 100~240VAC @ 50/60HzPower Consumption: 18W(max.)PhysicalOperation Temperature: 0~40℃Dimension: 44(H) X 483(W) X 240(D) mmWeight: 2.0 kg

gross: €2,677.50
