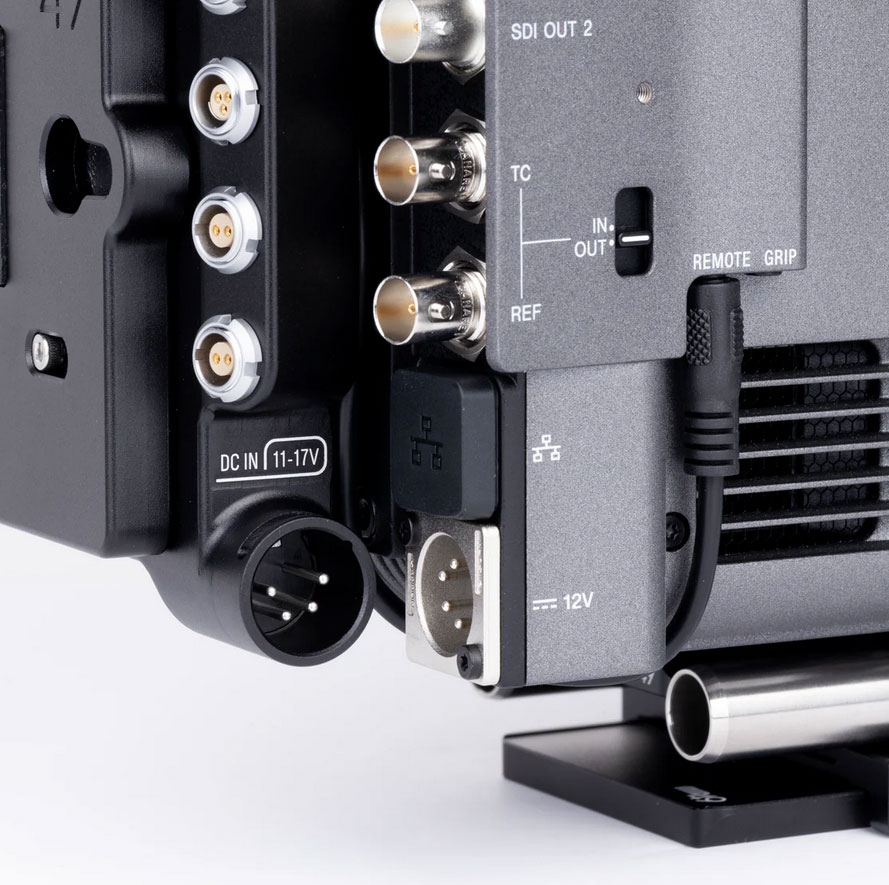

MID49 Power Distribution Box DB-8 (Sony Burano, Gold Mount) M49-DB8-G

Wooden Camera D-Box (Sony Venice, Venice 2, V-Mount) D-Box (Sony Venice, Venice 2, V-Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the Sony Venice, Sony Venice 2 camera. The D-Box main unit attaches to the back of the AXS-R7 or to the V-Mount plate on the camera rear and the Power Strip portion attaches to the top right side of the camera via a 3pin Fischer and the tape hook threaded hole. Connectors on the D-Box Power Strip are contoured to match the camera profile and connector angle which allows for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port including the ARRI UMC-4 / WCU-4. The DC input on the D-Box™ is the same as the camera's 4pin XLR connector allowing for an AC power supply, external power plate, or VCLX block battery to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the D-Box™ defaults to the DC input, leaving the onboard battery fully charged. Physical fuses have been replaced by a processor controlled amp limit which is settable to 3.8, 5.8, or 9 amps using the slide switch on the operator's side. Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again. The "DC IN" and "BATT" LEDs are dual LEDs. This means the LED If battery voltage is above 12.5V the LED will be green. If the battery voltage is below 12V the LED will be red. If the battery voltage is between those values the LED will be orange (red + green). Flashing may occur during phase transition. Highest quality Anton Bauer components are used in the V-Mount assembly and the unibody power plate design is both extremely durable and lightweight. Interfaces 1x V-Mount Power Plate2x 3pin Fischer at 24V with Run Stop- Regulator built in to convert battery voltage to 24V- Maximum 3A surge, 2.5A sustained shared between connectors2x 2pin at 12V unregulated- ARRI standard wiring- Maximum 7A current rating, shared between connectors2x D-Tap at 12V unregulated- Maximum 9A current rating, shared between connectors1x 5V USB - Maximum 2.5A1x 4pin XLR DC Input- For use with 14.4V block batteries- DC Input takes priority when voltage is between 12.9–18V- Accessories are powered when utilizing DC Input Specifications Weight: 484gDimensions: 31.8 mm x 114.3 mm x 133.35 mm

Wooden Camera D-Box (Sony BURANO) Add power accessory options on the Sony BURANO by adding the D-Box to your camera system, the D-Box provides additional 12V 2-pin, a D-tap port and a 3-pin 24V power options. The D-Box offers hot swap abilities when power is connected to the DC-In and an on-board battery. Choose from either a Gold Mount or V-Mount option. D-Box V Mount (Sony BURANO): Weight: 400.5 g | Dimensions: 96 x 47 x 135 mmD-Box Gold Mount (Sony BURANO): Weight: 394.6 g | Dimensions: 100 x 38 x 136 mm

Wooden Camera D-Box and B-Box System (Sony BURANO) Add power accessory options to your build by adding the D-Box and B-Box System to your Sony BURANO. The D-Box provides additional 12V 2-pin, a D-tap port and a 3-pin 24V power option. Additionally, the D-Box allows for hot swap abilities when power is connected to the DC-In and an on-board battery. Expand the power distribution of the D-Box by adding a B-Box, which adds two 2-pin 12V, a 3-pin 24V as well as a Remote-In port to your camera setup. This allows users to add even more functionality to the BURANO by adding the ability to power additional accessories. This connection is established using the included B-Box Link Cable attached to the EXT port on both of the units to allow power to be transferred. Establish more control with the use of the Remote Cable, allowing Run/Stop to the 3-pin connector port via the camera's Remote port when attached to the Remote-In port on the B-Box. D-Box unit is available in either a Gold Mount or V-Mount option. Included Items D-Box (Sony BURANO)B-Box System (Sony BURANO) Specifications D-Box (V Mount) and B-Box System (Sony BURANO): Weight: 451.3 g | Dimensions: 134 x 62 x 135 mmD-Box (Gold Mount) and B-Box System (Sony BURANO): Weight: 445.9 g | Dimensions: 138 x 62 x 136 mm

MID49 Power Distribution Box DB-8 (Sony Burano, V-Mount) Power Distribution Box DB-8 (Sony Burano, V-Mount) attaches directly to the back of the camera body using the V-Mount interface to provide intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable LANC cable enables remote start/stop capability using 3pin Fischer devices. Hot swap between onboard battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-8 will switch to an onboard battery. With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the Burano uses approximately 2.8A at 14V so when using a 10A capable battery, the remaining 6.2A is allocated for accessory use. If an accessory configuration exceeds the 6.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate showing the error and once the configuration has been adjusted to lower than 6.2A, the RESET button can be pressed and power will be re-enabled to accessory outputs. In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.The DB-8 is also compatible with Sony Venice and Venice 2 and start / stop capability can be added using the optional adapter cable.INPUTSBATT V-Mount plate with SMBus communicationDC IN 4pin XLR (11-17V)OUTPUTS2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)

MID49 Power Distribution Box DB-8 (Sony Burano, V-Mount) Power Distribution Box DB-8 (Sony Burano, V-Mount) attaches directly to the back of the camera body using the V-Mount interface to provide intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable LANC cable enables remote start/stop capability using 3pin Fischer devices. Hot swap between onboard battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-8 will switch to an onboard battery. With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the Burano uses approximately 2.8A at 14V so when using a 10A capable battery, the remaining 6.2A is allocated for accessory use. If an accessory configuration exceeds the 6.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate showing the error and once the configuration has been adjusted to lower than 6.2A, the RESET button can be pressed and power will be re-enabled to accessory outputs. In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.The DB-8 is also compatible with Sony Venice and Venice 2 and start / stop capability can be added using the optional adapter cable.INPUTSBATT V-Mount plate with SMBus communicationDC IN 4pin XLR (11-17V)OUTPUTS2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)
