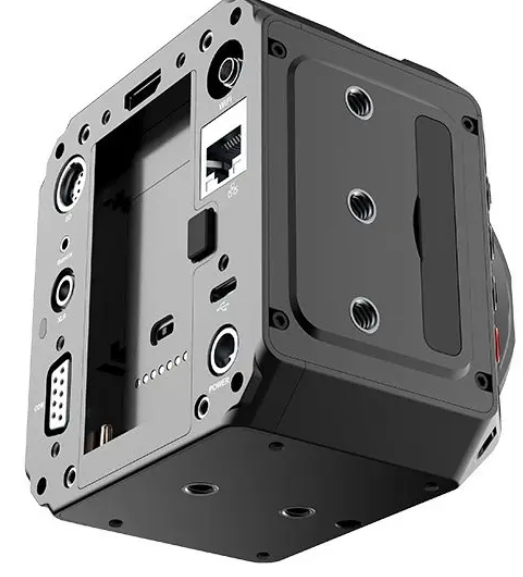

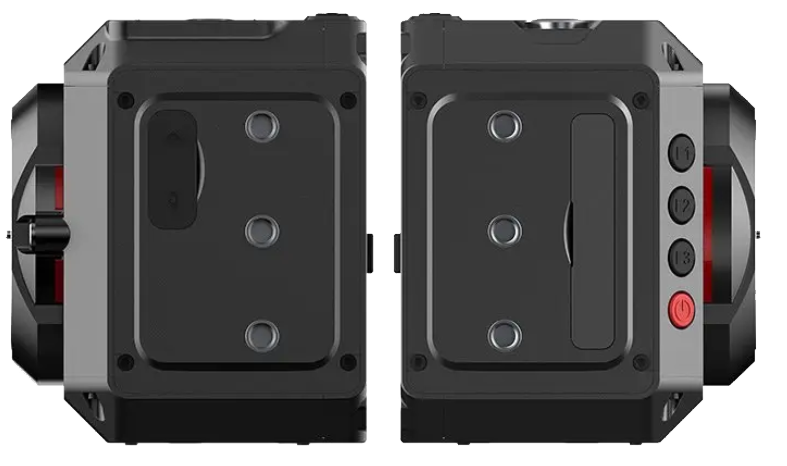

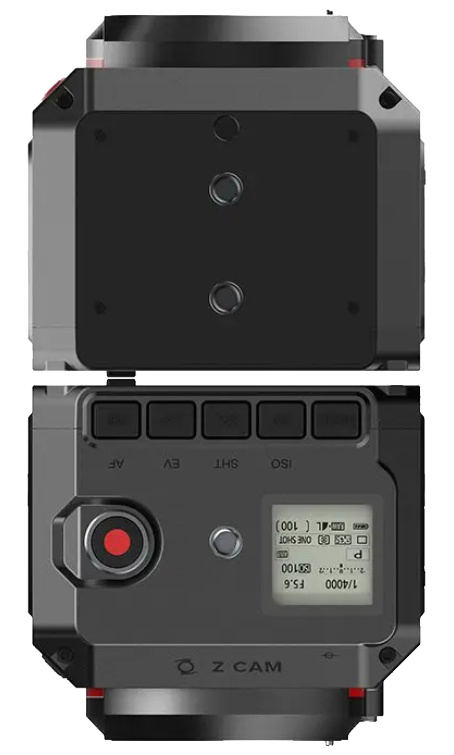

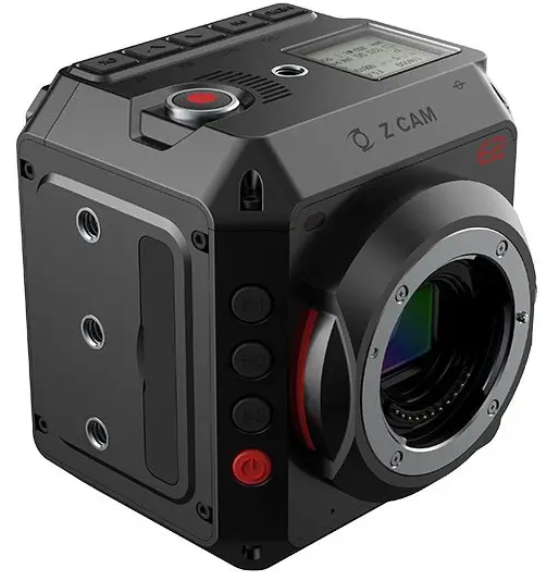

Z CAM E2 4K CINEMA CAMERA

Z CAM E2N 4K NDI CAMERASKU: ZCE2NAdd the E2N 4K NDI Camera from Z CAM to your NDI ecosystem and enjoy NDI and SSP support on a compact box camera that features an MFT lens mount and a 4/3" dual native ISO CMOS sensor with the capability of capturing resolutions up to 4K60.The E2N can handle H.265 and H.264 via NDI|HX3 and NDI|HX formats, as well as via SSP. The camera offers tally control via NDI and PoE+ (Power over Ethernet). An SD card slot provides internal recording options, but you can also record to an external recording system using the HDMI output. A web-based user interface and a full set of open API can be employed for control and monitoring.FeaturesCertified for NDI|HX3 Support4/3" Dual Native ISO CMOS SensorCaptures up to 4K60PoE+ & Tally Control via NDISD Card Slot for RecordingTechnical dataCameraCamera model: Z CAM E2NSensor Type: 4/3" CMOS sensorEffective Pixels: 10.71 mega pixelsDynamic Range: 11.5 StopsLens Mount: Micro Four Thirds (with Active Lock)Microphone: Built-in Stereo Microphone RecordingRecording Resolution4K, 3696x27721080pRecording Frame Rate23.98 / 24 / 25 / 29.97 / 50 / 59.9423.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120 / 240Streaming Resolution4K, 3696x27721080pStreaming Frame Rate23.98 / 24 / 25 / 29.97 / 50 / 59.9423.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120Color Bit-depth8-bitVideo EncoderH.265 / H.264Streaming ProtocolNDI_HX3, SSPAudio Format16-bit 48 kHzAudio EncoderAAC / PCM (for MOV only)File FormatMOV / MP4Record ModeVideo / Time Lapse Video / Still Image CaptureSettingsISO: Auto, Manual (500 ~ 102400), Native ISO: 500 / 2500 Shutter: Shutter Speed: Auto, Manual (1”~ 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°)White Balance: Auto, Preset, Manual (2300K ~ 7500K)Focus Mode: MF / AF / CAFImage Profile: Rec.709 / Concert / Vivi 0 / Vivi 1 / Vivi 2Audio Audio In / Out LevelTime Code Current Time / Manual InputStorageRecording Media: SDXC Class 10 SD card, recommend to use UHS-I Speed Class 3 (U3) type for 4K recordingFile System: exFATConnectivityHDMI: HDMI 2.0 Type A, up to 4K 60fpsUSB: USB 3.0 Type CAudio-in: 3.5 mm stereo jack socketAudio-out: 3.5 mm stereo jack socketWi-Fi: 5G band, 802.11ac, external antenna portEthernet Gigabit Ethernet port for control, setting & live streamingPowerPower Input: DC 12V 5A (2-pin LEMO socket), PoE+ (IEEE 802.3 at)Battery: LP-E6 series compatible (Battery not included)PhysicalWeight: 660g (without lens)Dimensions (HxWxL): 85.3 x 91 x 86mm (without lens)EnvironmentStorage Temperature -20 °C ~ 60 °COperation Temperature 0 °C ~ 40 °C

Z CAM E2C 4K Cinema CameraThe Z CAM E2C Professional 4K Cinema Camera shoots UHD 4K up to 29.97 fps, as well as HD up to 59.94 fps, and records to an SDXC Class 10 card (not included).The camera features a 4/3" sensor with 10-bit color support and nominal 11.5 stops of dynamic range. The camera supports recording video in MOV/MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and a recent firmware update allows the camera to record in the ZRAW format.Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only). You can use an available iOS app to control the camera via Wi-Fi and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers via PoE, an LP-E6-series battery (not included), or via a DC input port. An included LEMO to D-Tap power cable allows you to power the camera from a D-Tap source. An optional AC to DC power adapter can also power the camera.Features12-Bit ProRes RAW recording over HDMI to the Ninja V 5” HDR monitor-recorder4K @ 30fps, 10-bit color4/3" CMOS sensor11.5 stops dynamic rangeiOS app for control setting & live previewPOE supportedTechnical dataCamera FeaturesSensor Type: 4/3" WDR CMOS SensorSensor Size: 19.0 x 13.0 mmEffective Pixels: 10.28MDynamic Range: 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)Lens Mount: Micro Four ThirdsMicrophone: Built-in Stereo Microphone RecordingResolution4096 x 2160 (C4K) / 3840 x 2160 (4K)4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)3696 x 2772 / 3312 x 27602704 x 1600 / 1920 x 1080Frame Rate59.94 / 50 / 29.97 / 25 / 24 / 23.98 fpsMax Variable Frame Rate120 fps for 4096 x 2160 (H.265 only)120 fps for 3840 x 2160 (H.265 only)150 fps for 4096 x 1728 (H.265 only)160 fps for 3840 x 1620 (H.265 only)240 fps for 1920 x 1080 (H.265 only)Max Bit RateH.265 / H.264: 300 Mbps for 4K resolutions200 Mbps for 1920 x 1080StorageMedia: CFAST 2.0File System: exFATConnectivityHDMI: HDMI 2.0 Type A (video output up to C4K @60fps)USB: USB 3.0 Type CWi-Fi: 802.11n, 2.4G with external antenna portEthernet: Gigabit Ethernet port for control, setting & live streamingPowerBattery: Sony NP-F series compatibleExternal: Power Supply DC 12V 5A (4-pin LEMO socket)PhysicalMaterial: Aluminum AlloyWeight: 757 g (without lens)Dimensions (W x H x D): 91.2 mm x 99.2 mm x 89.1 mm (without lens)EnvironmentStorage Temperature: -20 °C ~ 60 °COperation Temperature: 0 °C ~ 40 °C

Z CAM E2-S6 Mark II SUPER 35mm 6K CINEMA CAMERASKU: ZCE2S6M2The Z CAM E2-S6 Mark II comes with a Super 35mm CMOS sensor, offering flexibility in professional production settings. It supports 6K recording at up to 60 frames per second and 4K at up to 100 frames per second. With its dynamic range of 14 stops, it delivers exceptional image quality for artistic and commercial projects. This model also features a native ISO range starting at 400, making it suitable for a variety of lighting conditions. The EF mount is standard but can be replaced with PL, M, or MFT mounts for maximum compatibility with different lenses. FeaturesSuper 35mm CMOS sensor for professional use6K video recording at up to 60 fps, 4K at up to 100 fpsDynamic range of 14 stopsSupports ProRes 4:2:2, H.265, and ZRAW formatsNative ISO range starting at 400 for versatile lighting conditionsStandard EF mount, compatible with optional PL, M, and MFT mountsBuilt-in gyroscope sensor for enhanced stabilizationPower over Ethernet (PoE+) and Genlock support for multi-camera setupsStorage on CFexpress Type-B cards Technical dataCameraSensor Type: Super 35mm CMOS SensorSensor Size: 23.5 x 15.7 mm (Diagonal 28.3mm)Effective Pixels: 26.11MDynamic Range: 14 stopsLens Mount: EF Mount w/active lock (interchangeable to optional PL, LPL and M)Microphone: Built-in Stereo Microphone RecordingVideo Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*RAW over HDMI: ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)Audio Format" 16-bit 48 kHzAudio Encoder: AAC / PCM (for MOV only)File Format: MOV / MP4Record Mode: Video / Time Lapse Video / Still Image CaptureResolution & Max Frame Rate30fps max @ Open Gate (6244x4168)48fps max @ C6K (6144x3240)60fps max @ 6K 2.4:1 (6144x2592)48fps max @ 6K (5760x3240)30fps max @ 5K 4:3 (5552x4164)50fps max @ 5528x311260fps max @ C5K (5120x2700)30fps max @ 5K 6:5 (4992x4160)60fps max @ 5K (4800x2700)30fps max @ C4K 3:2 (4096x2732)30fps max @ C4K Low Noise (4096x2160)75fps max @ C4K (4096x2160)100fps max @ C4K 2.4:1 (4096x1728)30fps max @ 4000x400030fps max @ 3840x384030fps max @ 4K Low Noise (3840x2160)75fps max @ 4K (3840X2160)50fps max @ 3456x345690fps max @ S16 16:9 (3392x1908)120fps max @ 2.8K (2868x1512)120fps max @ 1920x1080* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode

Z CAM E2-M4 Mark II 4K CINEMA CAMERASKU: ZCE2M4M2The Z CAM E2-M4 Mark II Professional 4K Cinema Camera adds connectivity and stabilization improvements to the previous camera model while maintaining its interchangeable Micro Four Thirds lens mount, Flagship Series housing, and the ability to record ProRes RAW to select Atomos recorder/monitors. The camera records DCI and UHD 4K at up to 160 fps, as well as HD to 240 fps, all to a CFexpress Type B card (not included). Live stream RTSP, RTMP, and SRT protocols directly from the camera via a Gigabit Ethernet connection. The camera features a 4/3" sensor with 10-bit color support and a nominal 13 stops of dynamic range with 16 stops when set to WDR. ISO settings include 500 and 2500 in native mode and a total manual range of 500 to 102,400.The E2-M4 Mark II features both HDMI and 3G-SDI output ports for expanded connectivity in comparison to its predecessor. On top of this, Timecode and Genlock BNC inputs are built-in, allowing you to forgo additional adapters. Use the USB-C, 2.5mm LANC, and Serial CTRL ports to facilitate camera control with compatible ecosystems. A Gigabit Ethernet port also helps control the camera and live stream, and it even supports PoE+. Audio connectivity includes a 3.5mm stereo jack input, 5-pin LEMO input, and 3.5mm stereo jack output. Technical dataCameraSensor Type: 4/3" CMOS SensorSensor Size: 19.0 x 13.0 mm (Diagonal 21.63mm)Effective Pixels: 10.71MDynamic Range: 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)Lens Mount: MFT Mount w/active lock (interchangeable)Microphone: Built-in Stereo MicrophoneRecordingVideo Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*RAW over HDMI: ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)Audio Format: 16-bit 48 kHzAudio Encoder: AAC / PCM (for MOV only)File Format: MOV / MP4Record Mode: Video / Time Lapse Video / Still Image CaptureResolution & Max Frame Rate30fps max at C4K Low Noise (4096x2160)120fps max at C4K (4096x2160)150fps max at C4K 2.4:1 (4096x1728)30fps max at 4K Low Noise (3840x2160)120fps max at 4K (3840x2160)160fps max at 4K 2.4:1 (3840x2160)30fps max at 3696x2772 Low Noise60fps max at 3696x277260fps max at 3312x2760170fps max at S16 16:9 (2752x1548)160fps max at S16 (2704x1600)240fps max at 1920x1080

Z CAM E2-F6 Mark II FULL FRAME 6K CINEMA CAMERASKU: ZCE2F6M2 The Z CAM E2 Mark II series represents the latest generation of professional cinema cameras, renowned for their exceptional image quality, robust design, and versatile functionality. With their compact and modular construction, these cameras can be easily adapted to meet a wide range of creative needs.They support various recording formats, including ProRes 4:2:2, H.265, and ZRAW, and feature advanced connectivity options like HDMI 2.0 and Gigabit Ethernet for live streaming and remote control.The Z CAM E2-F6 Mark II features a full-frame CMOS sensor, offering impressive resolution and versatility. It supports 6K recording at up to 60 frames per second and 4K at up to 120 frames per second. With a dynamic range of 15 stops, it captures incredible detail in both shadows and highlights.The native ISO range starts at 400, making the camera particularly effective in low-light environments. Equipped with a standard EF mount, it also supports optional lens mounts such as PL, M, and MFT to accommodate a wide range of cine and photography lenses.The E2 Mark II series cameras boast extended dynamic range, native dual-ISO capabilities, and the ability to record 6K and 4K video at high frame rates. They include precise Genlock synchronization for multi-camera setups and utilize CFexpress Type-B cards for fast and reliable data storage. With Power over Ethernet (PoE+) support and an integrated gyroscope sensor for stabilization, they are an excellent choice for demanding film projects. FeaturesFull-frame CMOS sensor for exceptional image quality6K video recording at up to 60 fps, 4K at up to 120 fpsDynamic range of 15 stopsSupports ProRes 4:2:2, H.265, and ZRAW formatsNative ISO range starting at 400, excellent for low-light performanceStandard EF mount, compatible with optional PL, M, and MFT mountsBuilt-in gyroscope sensor for enhanced stabilizationPower over Ethernet (PoE+) and Genlock support for multi-camera setupsStorage on CFexpress Type-B cards Technical dataCameraSensor Type: Full Frame CMOS SensorSensor Size: 35.9 x 24.0 mm (Diagonal 43.3mm)Effective Pixels: 24.63MDynamic Range: 15 stopsLens Mount: EF Mount w/active lock (interchangeable to optional PL, LPL and M)Microphone: Built-in Stereo Microphone RecordingVideo Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*RAW over HDMI" ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)Audio Format: 16-bit 48 kHz =Audio Encoder: AAC / PCM (for MOV only)File Format: MOV / MP4Record Mode: Video / Time Lapse Video / Still Image CaptureResolution & Max Frame Rate30fps max at Open Gate (6064x4040)48fps max at C6K (6064x3196)48fps max at 6K (5760x3240)30fps max at 5K 4:3 (5376x4032)60fps max at C5K (5120x2700)30fps max at 5K 6:5 (4848x4040)60fps max at 5K (4800x2700)50fps max at 4K 4:3 (4096x3072)*30fps max at C4K 3:2 (4096x2732)90fps max at C4K (4096x2160) *120fps max at C4K 2.4:1 (4096x1728)30fps max at 4K 6:5 (4080x3400)90fps max at 4K (3840x2160)170fps max at S16 16:9 (2112x1188)170fps max at 1080P (1920x1080) * supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode
