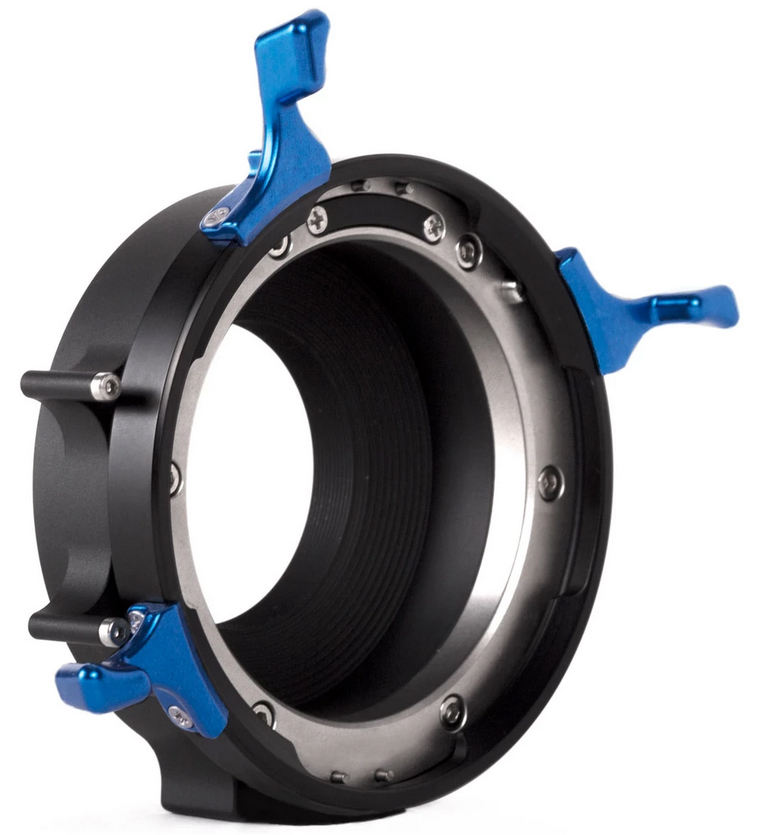

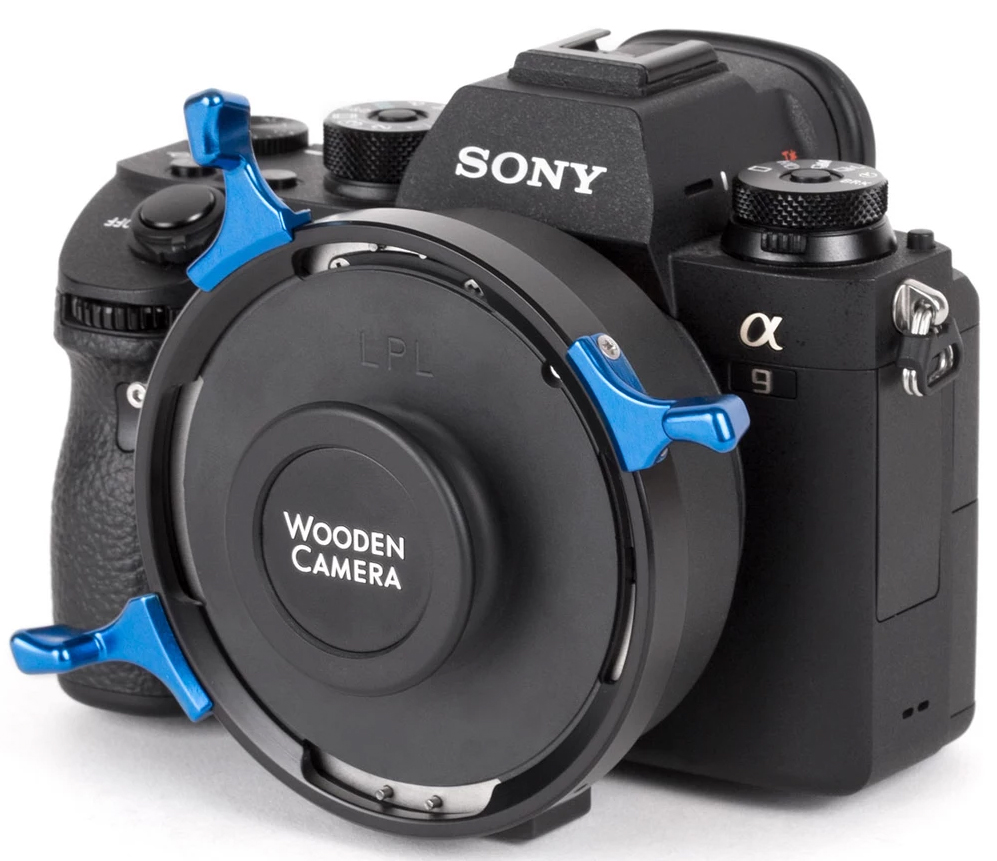

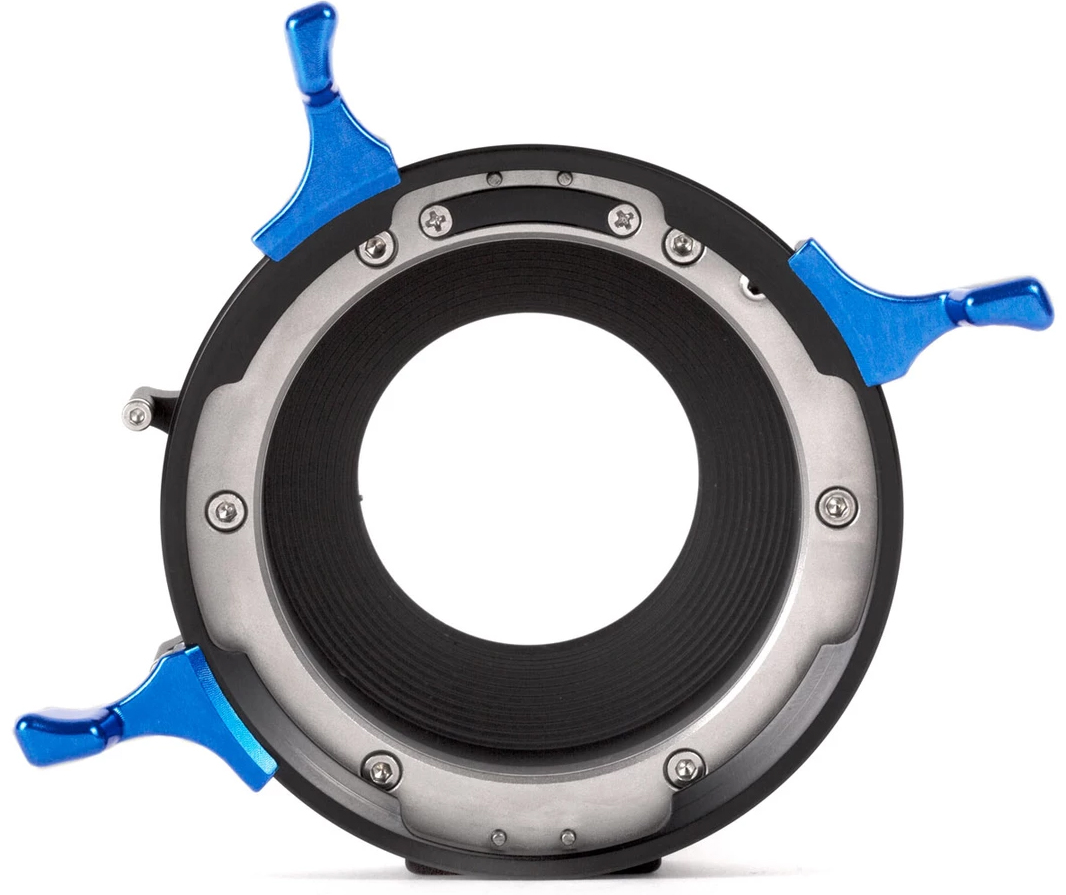

Wooden Camera Sony E-Mount to LPL Mount Adapter (Pro)

Wooden Camera ARRI LPL Mount for Sony Venice Cameras SKU: 269200 ARRI LPL Mount for Sony Venice Cameras allows ARRI LPL Signature Prime Lenses to be used on Sony Venice and connects lens pogos directly to the camera. According to ARRI, 2019 Q1 will bring an update to the Signature Primes that will allow for Cooke /i data to be outputted. At that time, the Sony Venice will be able to read the metadata via our pogo interface. LPL Cap included to prevent dust from entering sensor area when lens is not attached. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.

Wooden Camera Fujifilm G Mount (GFX) to ARRI LPL Mount Adapter SKU: 274400 Fujifilm G Mount (GFX) to ARRI LPL Mount Adapter allows ARRI LPL Signature Prime Lenses to be used with Fujifilm G Mount (GFX) cameras. Mount includes an integrated foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The support foot can also be attached to the Unified DSLR Cage natively using the vertical support hole and the Unified Lens Adapter Support Kit. LPL Cap included to prevent dust from entering sensor area when lens is not attached. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. ARRI's LPL to PL Adapter is also compatible, allowing easy change from standard PL lenses to LPL lenses. LPL Mount is passive and does not communicate lens data to the camera.  Shim Setstackable to achieve necessary thickness Silver .0127mm (0.0005")Amber .0254mm (0.001")Purple .0381mm (0.0015")Red .0508mm (0.002")Green .0762mm (0.003")Tan .1016mm (0.004")Blue .127mm (0.005") Specifications Weight: 223g Dimensions: 81.8 x 81.8 x 38.1 mm

Wooden Camera Canon R Mount to ARRI LPL Mount Adapter SKU: 276600 Canon R Mount to ARRI LPL Mount Adapter allows ARRI LPL Signature Prime Lenses to be used with Canon R Mount cameras. Other LPL lenses like Leica Thalia LPL are also compatible. The 1/4-20 threaded hole on the bottom reduces strain on the camera mount by attaching to a tripod or the vertical lens support hole on the Unified DSLR Cage. LPL Cap included to prevent dust from entering sensor area when lens is not attached. A third tab is included for use with mount when not installed in a DSLR cage.  In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. ARRI's LPL to PL Adapter is also compatible, allowing easy change from standard PL lenses to LPL lenses. LPL Mount is passive and does not communicate lens data to the camera. Shim Setstackable to achieve necessary thickness Silver .0127mm (0.0005")Amber .0254mm (0.001")Purple .0381mm (0.0015")Red .0508mm (0.002")Green .0762mm (0.003")Tan .1016mm (0.004")Blue .127mm (0.005") Specifications Weight: 216g Dimensions: 81.8 mm x 81.8 mm x 46.5 mm

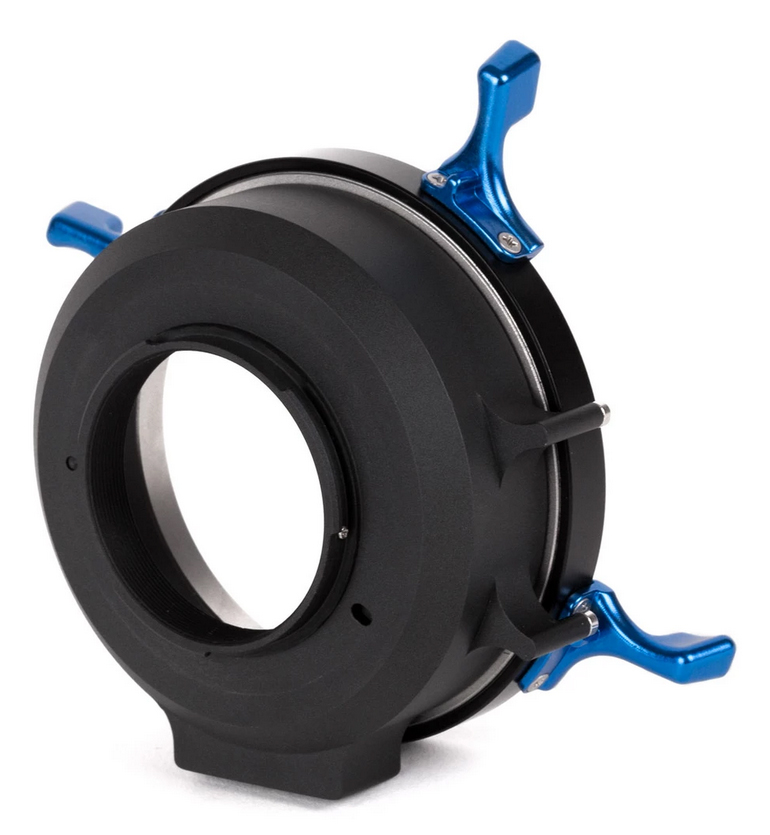

Vocas Sony E-mount to LPL adapter including 15 mm support SKU: 0900-0115 Sony E-mount to LPL adapter including 15 mm rail support allows the use of LPL lenses on E-mount cameras. The rail support provides support for the lens mount, especially recommended when using heavy LPL lenses. The separate Vocas LPL mount cap is included. Technical data Lens mount: LPLBody mount: E (Sony)Adjustable lens lock: YesPre shimmed: YesMaterial: AluminumColor: BlackWeight: 399g

Wooden Camera ARRI LPL Mount for RED DSMC2 Cameras SKU: 263600 ARRI LPL Mount for RED DSMC2 Cameras allows ARRI LPL Signature Prime Lenses to be used with RED DSMC2 Brains with a full frame, Vista Vision sensor (RED Monstro). ARRI's LPL to PL Adapter is also compatible allowing easy change from standard PL lenses to LPL lenses. An external LDS-2 port is present but not currently utilized. Once external LDS-2 metadata workflows are created, this port can be connected to a metadata recorder.Wooden Camera ARRI LPL Mount for RED DSMC2 Cameras is also compatible with the standard sensor size RED cameras like Helium, Gemini, Weapon, Epic Weapon (Epic-W), Scarlet Weapon (Scarlet-W), Raven, and other DSMC2 cameras. Also compatible with original DSMC1 cameras like Dragon, Epic, and Scarlet. Specifications Weight: 216g Dimensions: 81.8 mm x 81.8 mm x 46.5 mm

Wooden Camera ARRI LPL Mount for RED Ranger Camera SKU: 900212 ARRI LPL Mount for RED Ranger Camera allows ARRI LPL Signature Prime Lenses to be used with RED Ranger BRAINs with a full frame, VistaVision sized sensor (DSMC2 MONSTRO). ARRI's LPL to PL Adapter is also compatible allowing easy change from standard PL lenses to LPL lenses. An external LDS-2 port is present but not currently utilized. Once external LDS-2 metadata workflows are created, this port can be connected to a metadata recorder. Specifications: Weight: 216g Dimensions: 81.8 mm x 81.8 mm x 46.5 mm

Wooden Camera E-Mount to PL Mount Pro SKU: 233400 E-Mount to PL Mount Pro (Sony Alpha, FS7mkII, FX9) is a shimmable version of Wooden Camera's popular Sony E-Mount lens mount adapter that enables mounting of PL mount lenses onto the Sony E-Mount cameras including the Sony FX9 and FS7mkII. The FX9 and FS7mkII have positive locking E-Mounts which eliminate the need for the support foot, but if additional support is desired, use the 1/4-20 foot and combine with our Unified Baseplate (Sony FS7mkII, FX9) using the vertical support hole and the Unified Lens Adapter Support Kit. PL Cap included to prevent dust from entering sensor area when lens is not attached.If you are using the E-Mount to PL Mount Pro without a camera cage, you can use the included WC Lens Adapter Universal Support Foot to attach directly to the bottom of your camera and lens mount. This allows all the weight to be transferred from the lens mount to the bottom of the camera to avoid any flexing or damage that could occur when using heavier lenses. In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. Includes 2 M4x20mm socket cap screw1 1/4-20 Support Foot1 Universal Support Foot Specifications Weight: 251g Dimensions: 85.1 mm x 81.8 mm x 48 mm Features - 1/4-20 foot for attaching tripod plate or support Shim setstackable to achieve necessary thickness) Silver .0127mm (0.0005")Amber .0254mm (0.001")Purple .0381mm (0.0015")Red .0508mm (0.002")Green .0762mm (0.003")Tan .1016mm (0.004")Blue .127mm (0.005") Compatibility This adapter will also work with any Sony E-Mount camera like the below:Sony FS7Sony FS7mkIISony FS5Sony FX9Sony A7s, A7sII, A7r, A7rII, A6300Sony FS700Sony FS100Many more!

Vocas Sony E-mount to LPL adapter SKU: 0900-0116 Sony E-mount to LPL adapter, excluding 15 mm rail support. This adapter allows the use of LPL lenses on E-mount cameras. The separate Vocas LPL mount cap is included.
