Teradek Bolt 6 Monitor Module 1500 RX 10-2299-G7

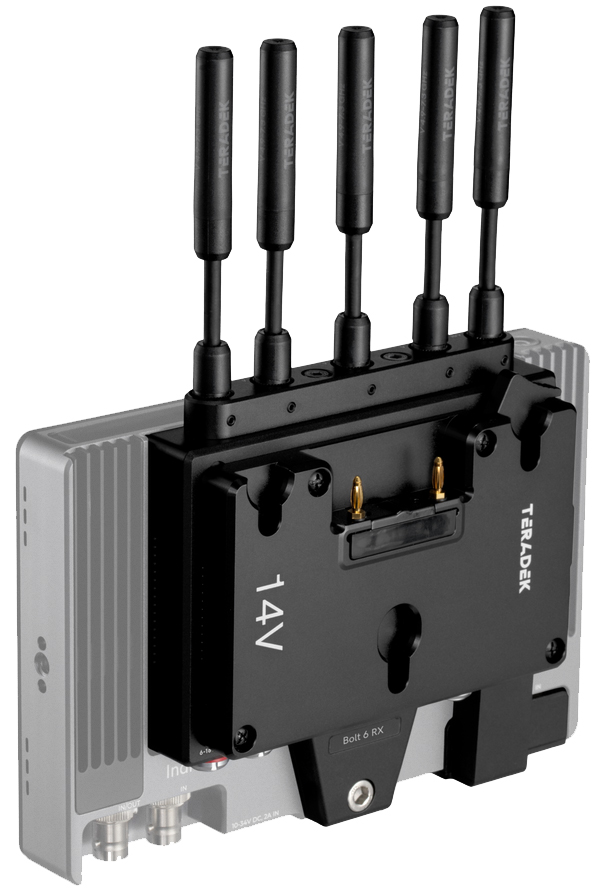

Teradek Bolt 6 Monitor Module 1500 RX

Key features of the Bolt 6 RX Monitor Module include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

With the Bolt 6 Monitor Module, Wireless Camera-Control is also made possible, because it integrates directly into SmallHD Smart Monitors. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The Bolt 6 RX Monitor Module is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 Receiver Monitor Module offers two line-of-sight options: 750 ft., and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

In the box

  • 1 x Bolt 6 Monitor Module 1500 RX V-Mount / Gold-Mount
  • 5 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
  • 1 x Screw Socket Head Black 1/4-20 x 3/8" length
  • 2 x Screw Socket Head Low Profile Black Oxide M3 x 20mm
  • 1 x Hex L key 2mm size 3-3/8" length
  • 1 x Hex L key 3/16" x 2 13/16" length
  • 1 x HDMI Adapter Bolt 4K RX Monitor Module

Details of the manufacturer

  • Teradek
  • 8 Mason
  • Irvine, California 92618, United States

+1 888.941.2111

https://teradek.com/pages/contact-us

Details of the person responsible for putting the product on the European market

  • New Media AV Bauer und Trummer GmbH
  • Johannes Bauer
  • Pirnaer Straße 20
  • 90411 Nürnberg, Germany

+49 911 5399-60

team@nmav.de

Warnings and safety information

TERADEK BOLT 6 - QUICK START GUIDE

TERADEK BOLT 6 - TECHNICAL DATA

TERADEK BOLT 6 - REGULATORY INFORMATION

TERADEK Link AX - QUICK START GUIDE

TERADEK ACE 750 - QUICK START GUIDE

TERADEK Ranger HD / Ranger 4K - USER GUIDE

TERADEK Ranger Micro / Ranger Mk II - USER GUIDE

TERADEK - EC DECLARATION OF CONFORMITY

TERADEK BOLT 6 XT - EC DECLARATION OF CONFORMITY

TERADEK BOLT 6 LT - EC DECLARATION OF CONFORMITY
