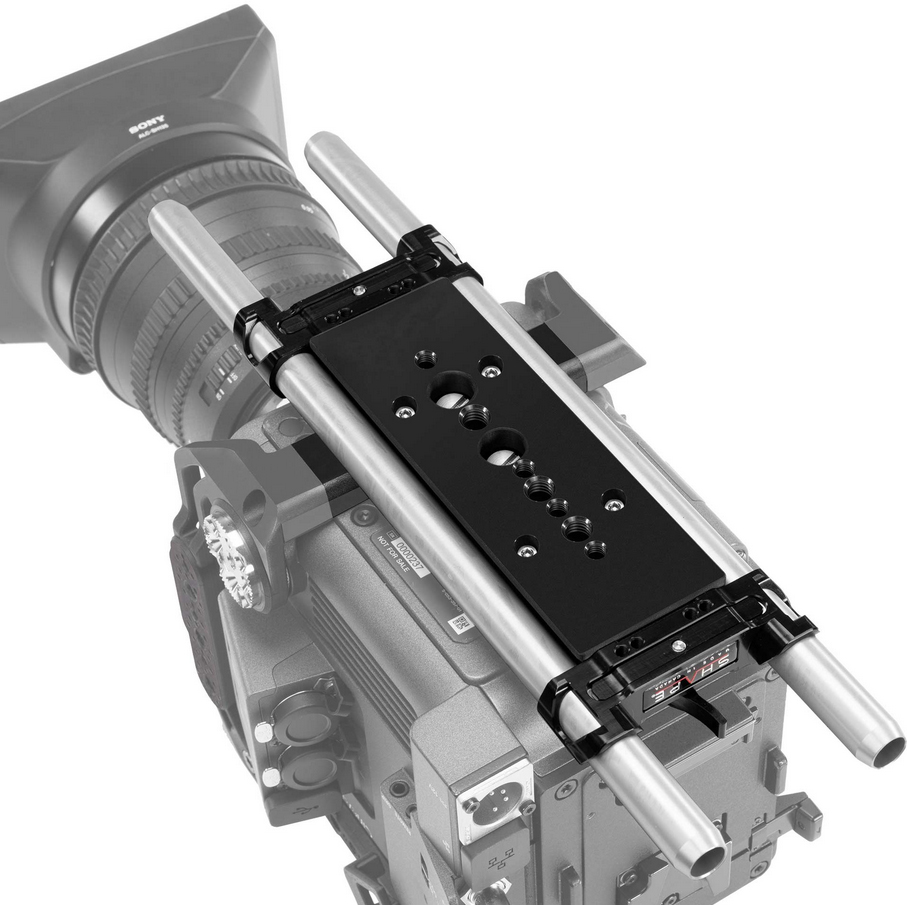

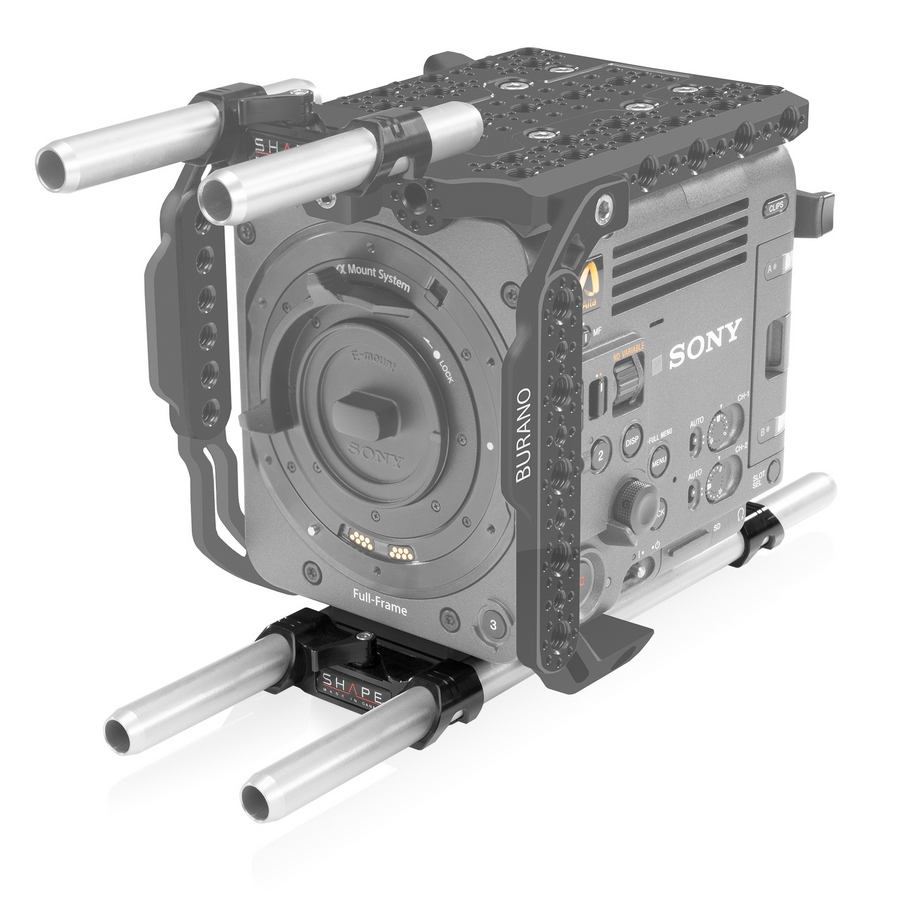

SHAPE 15mm LWS Baseplate for Sony Burano

MID49 Baseline 15mm LW (Sony Burano, FX6, Venice, Venice 2, Rialto, F55, F5 / Blackmagic URSA Mini, Mini Pro, Mini Pro 12K Baseplate)SKU: M49-BSL-LW0-AC12 Baseline 15mm LW (Sony FX6, Venice, Venice 2, Rialto, F55, F5 / Blackmagic URSA Mini, Mini Pro, Mini Pro 12K Baseplate) is a baseplate that holds 15mm lightweight rods at the correct distance from the center of the lens on the listed cameras. ARRI dovetail slot on the bottom attaches to the included Baseline ARRI Dovetail or other ARRI standard dovetails using a top-load locking mechanism. Loosen the thumbscrew and push the silver button on the operator's side to release the baseplate from the ARRI dovetail. To reattach, drop down and listen for the pop to know it has engaged. Adjust the position on the ARRI dovetail, then lock the ratcheting thumbscrew. Baseline ARRI Dovetail is the included lower ARRI mounting plate which can attach to tripod plates using 1/4-20 or 3/8-16 screws or ARRI standard bridgeplates with centered or offset screw spacing. ARCA dovetail slot on top holds the included ARCA Dovetail and can be top-loaded, or installed from the back by sliding in. When sliding in from the back, a safety pin will engage with a pop when properly installed. Adjust the position, then lock the ratcheting thumbscrew. Top-loading can be achieved by loosening the thumbscrew, pulling out on the ratcheting knob, and turning the thumbscrew until ARCA clamp has opened fully. Reverse the process to tighten. Center screw slot on ARCA Dovetail accepts 1/4-20 and 3/8-16 mounting screws, and a vertical rod hole clamps included 1/4-20 lens support posts for adaptors like Metabones, etc. Individual components of this kit are also available: Baseline Core 15mm LW (0mm Platform Height)Baseline ARCA Dovetail (12mm Height)Baseline ARRI DovetailTechnical dataProduct Weight: 334gProduct Dimensions (WxLxH): 123 x 140 x 33mm

Wooden Camera ARCA Baseplate (Sony BURANO) SKU: A00530 The ARCA Base Plate was designed for dual 15mm LW rods and maintains optimal lens height for studio-style builds. This Base Plate includes two 3/8”-16 screws and two anti-twist pins built into the bottom of the plate for a secure connection. Additionally, six 3/8”-16 and four 1/4”-20 with anti-twist ports on the sides and front of the plate allow users to mount more accessories along the Base Plate. Our ARCA system allows quick adjustments from a studio build to a Steadicam or Handheld build in seconds. Included Items: 3/16” Hex KeyWeight: 410.95 gDimensions: 125 x 130 x 26 mm

Wooden Camera Unified Baseplate (Sony FS7, Canon C100mkII, C300mkII, C100, C300, C500) SKU: 222100 Wooden Camera Unified Baseplate (Sony FS7, Canon C100mkII, C300mkII, C100, C300, C500) is a quick release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have two locking thumbscrews per side. The baseplate quick releases in two ways, giving the user the option to take the 15mm lightweight rods or to leave them behind. Camera Compatibility Sony FS7Canon C100Canon C300Canon C500Canon C100mkIICanon C300mkII Unified Baseplate Features Upper dovetail based on ARCA Swiss dovetail shapeVertical 15mm rod hole for optional support posts, ideal for lens adapters like Metabones, etc.Pass through 15mm lightweight rod openings with two locking thumbscrews per rodLower dovetail based on ARRI standard dovetail shape1/4-20 and 3/8-16 holes for attaching to tripod plates and Bridgeplates Wooden Camera Unified Baseplate Includes 2 x 1/4-20 low profile screw2 x 3/8-16 low profile screw Specifications Weight 362.8 gDimensions 50.8 mm x 152.4 mm x 152.4 mm
