RGBlink VUE NDI PTZ Camera 30x Optical Zoom

Free shipping

RGBlink VUE NDI PTZ Camera 30x Optical Zoom

€1,300.00*

gross: €1,547.00

Prices excl. VAT plus shipping costs

Free shipping

Available, delivery time: 1 day

Product number: SW26284

RGBlink VUE NDI PTZ Camera 30x Optical Zoom

SKU: RGB30X-PNDI-TLY

The RGBlink VUE NDI PTZ Camera 30x Optical Zoom is a professional broadcast PTZ camera in a sleek black design with a tally LED light on top. With its fast, silent rotation and zoom function, it is ideal for smaller productions, live events or in the education sector. Video output is via HDMI, 3G-SDI, USB 2.0 or IP streaming via network at up to 1080p60. Even in low-light conditions, it delivers top-notch image quality with rich colors thanks to dynamic noise reduction. The lens' high zoom factor and intelligent, fast autofocus allow for sharp distance shots.

The camera has one HDMI, 3G-SDI, USB and network port each, simultaneously outputting video signals at a maximum of 1080p60. Connected to a PC via USB, the camera is recognized as a UVC webcam without driver installation. It can be immediately integrated into OBS-Studio for streaming or into Zoom, MS-Teams or similar for video conferencing. The video signal can be output at 720p or 1080p with the frames common in broadcast. Optionally, date, time and the individual camera name can be displayed in the image. Audio signals from a microphone or line-in device are embedded in the HDMI, SDI or network stream via the 3.5 mm stereo jack. Power is supplied to the camera via the included AC adapter, or alternatively via LAN thanks to the PoE function if Power over Ethernet is supported by the router.

Features

High image quality with dynamic noise reduction in low light conditions
High-speed optical zoom
NDI|HX2 license: control, video over IP and embedded audio signal
Full HD resolution with up to 60 frames/sec simultaneously on all video outputs
Embedded audio in HDMI, SDI and network stream
H.264/H.265 dual streaming with all relevant network protocols
Tally LED light on top
OSD menu with manual IP entry/DHCP activation via remote control
Administration via web browser
PTZ camera control via VISCA or Pelco protocols
Power supply via PoE
Power saving sleep function with parking position of lens vertically downwards
1/4" tripod thread on the bottom side
Suitable for wall or ceiling mounting (accessories not included)

Technical data

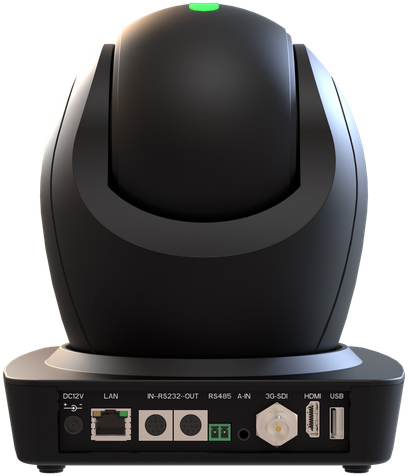

Interface

Output 3G SDI 1xBNC
HDMI 1xHDMI-A
USB 1xUSB-A
LAN 1xRJ45
Audio IN 1x3.5mm Stereo Jack
Control RS232 IN/OUT 2xDIN8
RS485 1x4pin Terminal
Power 1xDC12V Jack

Performance

Video format

1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 1080P59.94 1080I59.94 1080P29.97 720P59.94

Camera 30X
Optical Zoom f＝5.2～148.4mm
View Angle 2.14°～ 58.1°
AV F1.3 ～ F4.8
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto/Manual/One Push/3000K to 7000K(selectable)
Focus Auto/Manual
Aperture/Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/Dynamic Level Adjustment
Video Adjustment Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
SNR >55dB
Effective Pixels 2.07m,16:9

Pan-and-Tilt Parameter

Pan/Tilt Movement -170°～+170°/'-30°～+90°
Pan/Tilt Control Speed 0.1～60°/S；0.1～30°/S
Preset Speed/Quantity Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
360° TALLY full 360° view of TALLY

Power

Input Voltage DC12V/1.5A
Max Power 12W

Environment

Temperature -10℃～50℃
Humidity 20%～80%

Physical

Weight Net 1.7kg
Dimension Net 180mm(front)×188mm(side)×198mm(height)

In the box

1 x RGBlink VUE NDI PTZ Camera 30x Optical Zoom
1 x IR remote control (2 x AAA batteries not included)
1 x 230V power supply
1 x RS-232 serial cable
1 x user manual

Related links of the manufacturer

Further products by RGBLink

Accessory Items

Free shipping

BirdDog Eyes P200 Full NDI PTZ Camera WHITE

BirdDog Eyes P200 BirdDog Eyes P200 is 1080P Full NDI PTZ Camera w/Sony Sensor & HDMI/3G-SDI P200 PTZ camera utilizes BirdDog’s custom NDI® silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module. Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI® simultaneously. 3.5mm audio connectors allow P200 to work with BirdDog Comms, the world’s first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience. P200 has been designed for the most demanding on image quality. The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. P200 can also be used as a traditional PTZ camera with SDI, RS422, RS485, and RS232 control allowing you to move into the world of NDI® when you are ready. Features Full NDI PTZ CameraFull NDI using BirdDog’s custom NDI silicon chipSony CMOS Backlit SensorFull Sony Image Module1080p6030x Optical ZoomTriple output – NDI, SDI, and HDMI all simultaneousSuper low latencyCompatible with BirdDog Comms, the world’s best NDI Intercom SystemCompatible with BirdDog Central, the world’s best NDI delivery platformCompatible with BirdDog PTZ KeyboardAvailable in Black/ or White/

€2,000.00*

gross: €2,380.00

Free shipping

BirdDog Eyes P200 Full NDI PTZ Camera BLACK

€1,900.00*

gross: €2,261.00

Free shipping

Tip

BirdDog P120 Full NDI PTZ Camera

BirdDog P120 BirdDog P110 and BirdDog P120 set a new benchmark in format support, connection flexibility, and picture quality, with excellent lowlight performance. Housing a Sony Exmor R back-illuminated sensor and BirdDog’s custom NDI® silicon, P110 & P120 offer four output options including NDI®, SDI, HDMI for live production work, and UVC USB for connecting to Zoom & Teams. Output multiple flavours of NDI® including Full NDI®, NDI®|HX2, and HX3, as well as other options including SRT, h.264, and Cloud Connect. It even supports FreeD output for AR/VR workflows. There’s also an OLED display to show the IP address, 360° degree mohawk tally, filter thread, and free Auto-Tracking available. P110. P120. Same Same but Different P110 features 10x and P120 has 20x optical Zoom. Giving you ultimate flexibility to choose the perfect camera for your next production or meeting. In smaller studio and meeting spaces, P110 is your perfect companion, in larger areas with longer distance requirements, P120 adds additional reach and flexibility. Sony Exmor R Sensor. Lowlight is a highlight With a Sony Exmor R™ back-illuminated CMOS image sensor, P110 and P120 deliver beautiful images with significantly enhanced imaging characteristics including enhanced low noise sensitivity.*Exmor R is a registered trademark of Sony Corporation. Features Full NDI PTZ CameraP110 features 10x and P120 has 20x optical ZoomNDI® 5 support is built inNDI® GenlockSupports FreeDNDI® Video Scopes360° view TallyOLED display allows for information such as IP Address, Device Name, Stream Name, Resolution, and Frame Rate

€1,740.00*

gross: €2,070.60

Details

Free shipping

Tip

BirdDog Eyes P400 4K NDI PTZ Camera

BirdDog Eyes P400 BirdDog Eyes P400 features stunning 4K resolution NDI and allows chroma subsampling in your choice of 4:2:0 or 4:2:2. It teams up BirdDog’s custom NDI® silicon chip, a 4K Sony CMOS Backlit sensor, and a true Sony Image Module. Eyes P400 includes professional-level colour tools including Colour Matrix control, Black level, Gamma including 512 pre-set gamma positions. P400 debuts the world’s first 4K NDI with chroma subsampling at 4:2:2 which can be decoded natively in hardware by BirdDog’s 4K Family of NDI Encoders and Decoders. If decoding with a 4:2:0 receiver the stream will automatically serve 4:2:0 and this is what will be decoded. Think of it as an automatic and virtual handshake. Full NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes. With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps. BirdDog Cam Control BirdDog Cam Control allows full access to the entire colour matrix, black levels, and even the gamma to be able to shade your P400 professionally. Right click to view camera full screen on a secondary monitor to really dial in the look you want and then copy the settings to colour match cameras in seconds. Incredible low light performance In low light conditions the camera automatically switches from day to night mode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness. Triple output. NDI, 6G-SDI and HDMI With NDI®, 6G-SDI, and HDMI simultaneous outputs, the P400 is ready to go live with your full NDI® workflow today or if you are still in an old school SDI workflow you can use as an SDI camera and ease your way into the world of NDI®. lets you eliminate the need to add frame buffers. Superfine Robotics. Precise control at your fingers P400’s robotics are precise and sensitive. Wind down the panning and tilting speeds to create super professional shots that are dramatic, or crank up the speeds for high action sports to allow you to follow the movements. 20x Optical Zoom The 20x optical zoom offers a bright F2.0 aperture with a super smooth and fast zoom. Transition from wide to tele and recall pre-set positions quickly and with super fine precision. The incredible optical zoom function makes P400 perfect for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more. Tally light NDI has tally information built into the metadata so when P400 is connected to an NDI enabled switcher the tally light on the front of the unit to ensure your on-air talent will always know which camera is live. PoE or DC Power options P400 can be powered by Power over Ethernet (PoE+) for single cable operation that can carry Video, Audio, Power, Tally, and Intercom or you can choose to use the included power adapter. PTZ Keyboard Combine P400 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control P400 over NDI® or by RS422 / RS232 when using in SDI mode.

€3,133.00*

gross: €3,728.27

Details

Free shipping

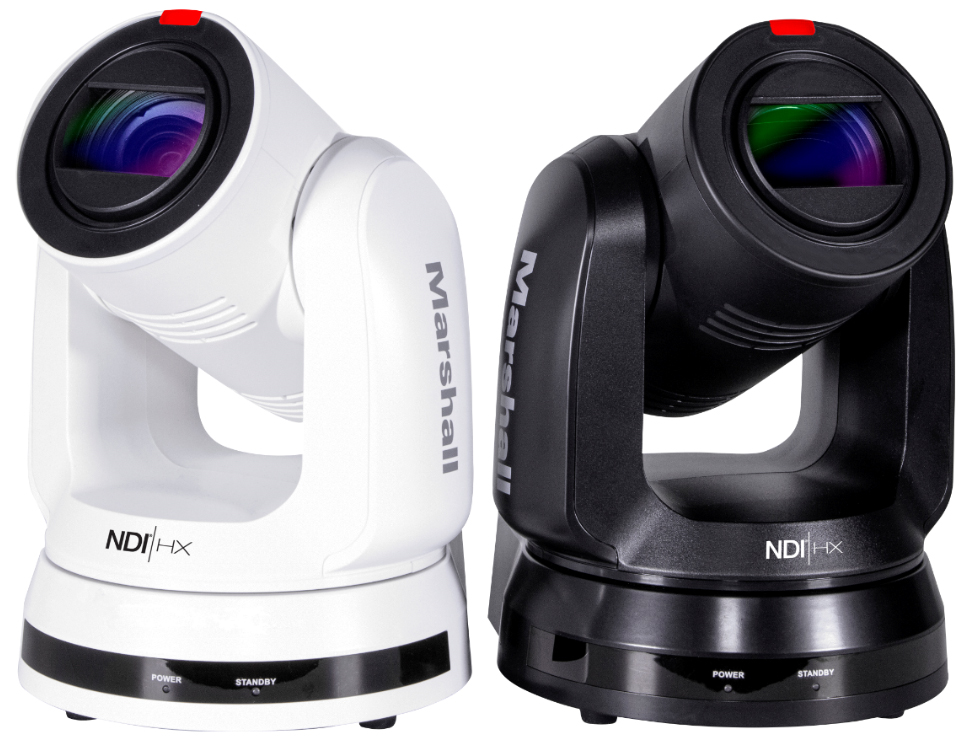

Marshall CV730-NDI 30X UHD30 PTZ Camera with NDI|HX
