RGBlink D8 8K Native Video Scaler

RGBlink D8

SKU: RGD8

RGBlink's D-Series has always been recognised as the leader in image quality and presentation level. The D8 is the most advanced 8K@60 level video processor in the industry. Create an incredible visual experience!

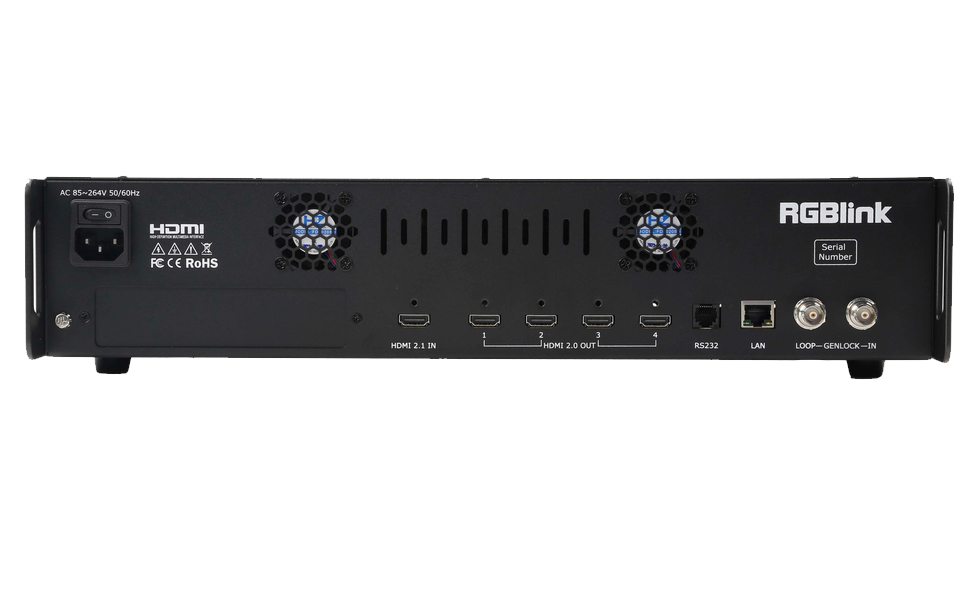

The RGBlink D8 has one HDMI 2.1 interface for one 8K input signal and four HDMI 2.0 outputs for four 4K signals. The output signals can be adjusted variably, e.g. cropping and scaling of layers or horizontal stretching across four screens. The RGBlink D8 is equipped with a 4-inch LCD monitor, which increases user-friendliness and provides an appealing front panel aesthetic.

The D8 is controlled via the RGBlink XPOSE software, but it also supports Android and Apple smartphones/tablets as well as IP-controlled web servers (PRELIMINARY). In addition, the D8 also provides an API interface to allow users to utilise third party devices that truly meet customers' diverse site control requirements.

Features

• 8K@60 input, HDCP 2.2 compliance
• 4 x HDMI 2.0 4K outputs
• Integrated 4'' LCD touchscreen for control
• 8K EDID management
• Genlock synchronization, unequal splicing, multiple splicing layouts available
• Layer cropping and scaling
• Genlock input and loop-through
• Standard output resolution support and output resolution customization
• XPOSE 2.0 control
• Hot-swap
• Open API

In the box

• 1x RGBlink D8 8K Native Video Scaler
• 1x AC power cable
• 1x network cable
• 1x DB9 to USB cable
• 1x DB9 to RJ11 cable
• 1x 8K HDMI cable
• 1x 8K DP cable
