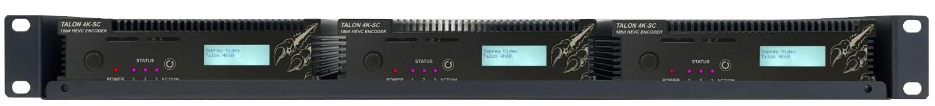

OSPREY Talon Rackmount Kit

OSPREY Talon 4K Encoder Encode, scale, and convert up to DCI 4K60 video for streaming and archiving with the Talon 4K60 12G-SDI/HDMI Hardware Video Encoder from Osprey. The encoder supports input of up to 4096 x 2160p60 video via one HDMI 2.0 and one 12G-SDI input, and output via USB 3.1 Gen 1, NVME, or network storage for archiving. There is also a 12G-SDI loop output for previewing your video. The encoder supports simultaneously streaming your video while archiving the stream to a hardware or network drive.This professional encoder supports up to 10-bit 4:2:2 color depth, deinterlacing, upscale and downscale, frame rate conversion, H.265/HEVC and H.264/MPEG-4/AVC encoding, eight channels of AAC-LC audio via HDMI, and sixteen channels of AAC-LC audio via SDI. You can stream video via its Gigabit Ethernet port using a variety of protocols such as RTMP, RTSP, RTP, and UDP, and it supports a variety of CDN integrations. You can save to MP4 and TS files via the USB 3.1 Gen 1 Type-A output, via the Ethernet port, and it supports NVME archiving using a separately available drive.The encoder also supports SRT secure reliable transport protocol with multiple security features, remote firmware upgrade, embedded closed captioning, a JSON REST API, and password protection. A status display shows the current settings of the unit, and status LEDs indicate active ports. It features a fanless design and has a locking power jack. Software Features Enhanced Security FeaturesRemote Firmware Upgrade from WebNetwork Time ProtocolJSON REST API for software integrationPassword ProtectedEmbedded Closed Caption supportSMPTE 2038 Support Hardware Features Fanless OperationLocking Power JackStatus DisplayStatus LEDsGigE Ethernet connection Technical data Video Inputs 1x 12G-SDI with Loopout1 x HDMI 2.0 (non-HDCP) Audio Inputs Embedded SDI 16Ch of audio (8 stereo pairs)Embedded HDMI 8Ch of audio (4 stereo pairs) Video Input Resolution Up to 4096 x 2160 (DCI) 60fps Color Depth Up to 10-bit 4:2:2 Streaming Transports RTMP, UDP, RTP, SRT™, Zixi™Number of Output Channels: 1Number of concurrent input channels: 1Simultaneous streaming and save to fileSaving to MP4 file Video Processing Upscale/Downscale, Frame rate ConversionDeinterlacing Video Compression H.264 (AVC), H.265 (HEVC) Encoding Controls Bitrate up to 100MbpsVBR & CBR Audio Compression AAC-LC Audio Sample Rate 44.1kHz, 48kHzAudio Bitrate 64Kbps to 512Kbps Video Archiving USB 3.0Network Storage Add-on Options Customizable Notice and ConsentSecure HTTP Web Based Management1U Rackmount with active cooling for up to 3 EncodersKLV Support for: In-band SDI; Out-of-band RTP IP Mechanical Operating Temperature 0 to 40°CPower 12V | 28W max

OSPREY Talon UHD-SCD Osprey Talon UHD-SCD Hardware Decoder with 2x 12G-SDI (parallel out) with a 10-bit 4:4:4 UHD output. Paired with the Osprey Video 4K and UHD Encoders the UHD Decoders enable low latency end to end transport of secure UHD video over IP Networks. Features Fanless operationStatus Display & LEDGigE Ethernet connectionEnhanced security featuresPassword protectedEmbedded closed caption support Technical data Video Outputs: 2x 12G SDIAudio Outputs: Embedded SDI 8CH (4 stereo pairs)Video Output Resolution: Upt to 3840x2160, 60fps (automatically matches input resolution)Color Depth: Up to 10bit 4:2:2Input Streams: RRMP(S)*, UDP, RTP, Zixi*, SRTSupported Video Input Compression: H.264 (AVC, H.265 (HEVC)Supported Audio Input Compression: AAC-LC, OPUS Audio* for UDP, RTP, SRT, ZixiSupported Audio Input Sample Rate: 44.1kHz*, 48kHz, Audio Bitrate 64kbps to 512kbpsPower: 12V /24W max * features added with future firmware releases In the box 1 x Osprey Talon UHD-SCD Decoder1 x Power Supply1 x Mounting Brackets
