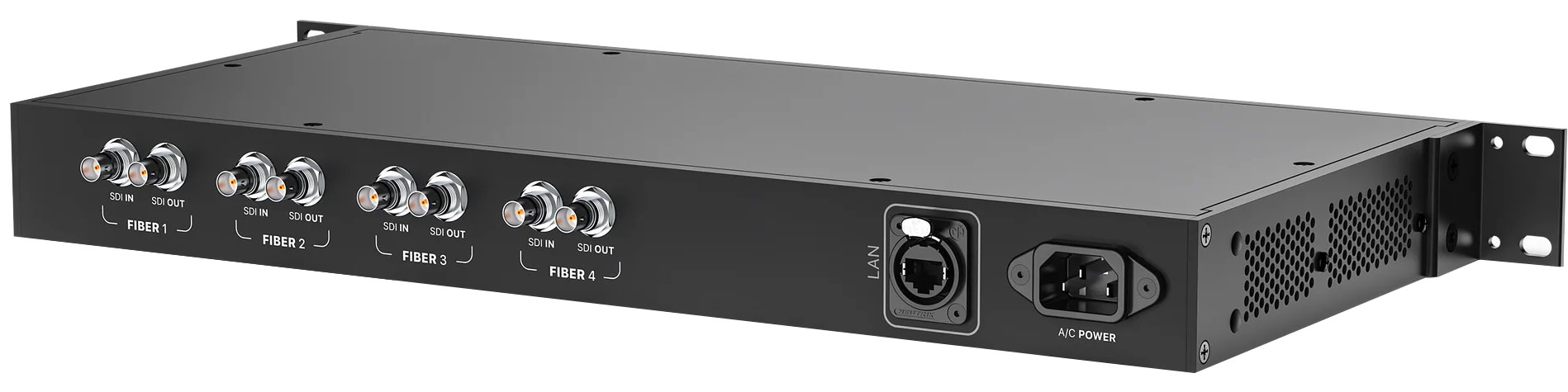

Middle Things Dispatch 4 PTZ 12G

Middle Things Dispatch 4 PTZ 12G

Built for on-location multi camera PTZ workflows in mind, the Fiber Dispatch 4 converts 4 pairs of SDI In/Out 4K video + IP LAN signals into 4 optical fiber outputs, using robust Neutrik OpticalCon Duo connectors. It is very similar to the Fiber Dispatch 5 12G, the difference is the added 1G LAN port at the back, adding LAN communication to all 4 fiber outputs, which makes it ideal for PTZ cameras!

Thanks to a compact 1U rack design, the Fiber Dispatch 4 converter will sit perfectly inside your existing video rack, allowing you to connect up to 4 PTZ cameras using the Fiber Camera Box PTZ (Slave version). Built-in fans ensure proper cooling of all the converters for a hassle free workflow.

Ever felt the time-consuming task of pulling three different SDI cables to a single camera , one for the video input, on for the return feed, and one for the LAN control? The Fiber Dispatch 4 merges each of these cable triplets into Duo Optical fiber cables, which are more lightweight and much more reliable than traditional copper BNC cables since they are insensitive to all electromagnetic interferences. You can run your fiber cable over thousands of miles with zero dropouts.

The Neutrik Optical ConDuo connector makes this converter compatible both with widespread LC / LC fiber cables, as well as the rugged Optical Con Advanced Duo & Duo Lite cables by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the fiber cores as soon as the cable is disconnected.

The Middle Things Fiber Dispatch 4 can be used with the Middle Things Fiber Camera Box PTZ 12G - Standard Version (Slave) . It is not compatible with the Master version of the camera box, since the Dispatch 4 is a Master. It supports single mode LC optical fiber cables, as well as Neutrik OpticalCon Duo and OpticalCon Duo Lite cables. Supported SDI video signals are 3G, 6G, and 12G (max 2160p60)

Technical Specifications

  • I/O connections: 4x SDI In, 4x SDI Out, 1x LAN 1G, 4x Neutrik OpticalCon Duo LC , AC Power
  • Input Voltage : 85V ~ 264V AC
  • Fiber type : Single Mode
  • Dimensions : 4.5cm x 48cm x 22.5cm
  • Weight : 3.0kg
  • Storage Temperature : -10 to 60°C
