MID49 Upper Cage for Canon C70

MID49 Upper Cage for Canon C70

SKU: M49-CAG-CAN-C70

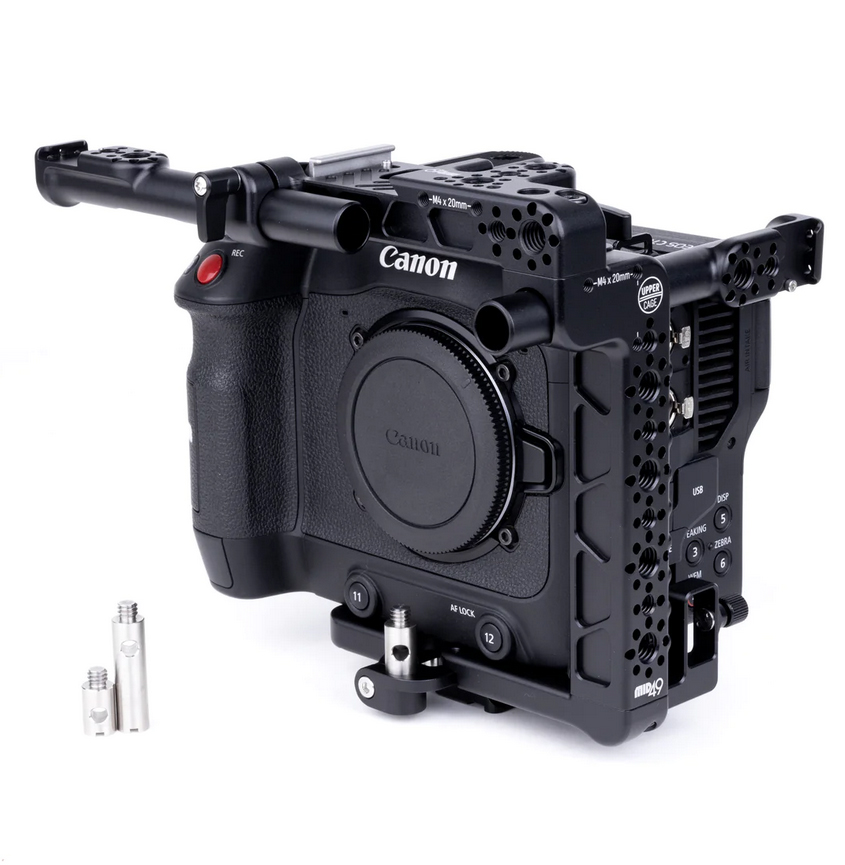

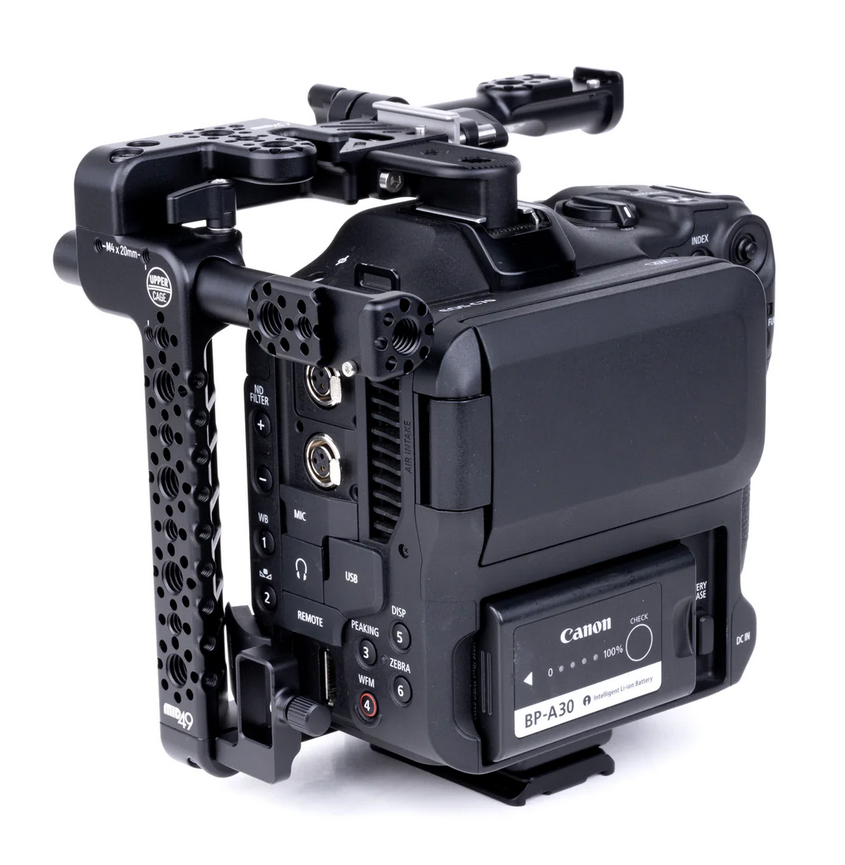

Upper Cage for Canon C70 is a form-fitting cage with 1/4-20, 3/8-16 with ARRI accessory pins, and M4x20mm ARRI-spaced threaded holes in several places. Included 15mm accessory rods provide threaded holes, a shoe mount, and special recess for the Audio Breakout AB-4 (Canon C70) which is available as an add-on, and converts the camera's two mini XLRs to standard, full-size XLRs. HDMI protector clamps cables securely, and front lens support mount attaches to 3rd party lens adapters like Metabones, etc. Top ARCA Swiss dovetail slot accepts products like our ARCA Top Handle or ARCA Top Plate which are sold separately. Lower ARCA Swiss dovetail attaches to our Baseline 15mm Baseplate to provide rods at the correct lens height and is also available separately.

Related links of the manufacturer

Accessories

MID49 Audio Breakout AB-4 (Canon C70)
MID49 Audio Breakout AB-4 SKU: M49-BOB-AB4 Audio Breakout AB-4 (Canon C70) is a passive adapter that converts the camera's two mini XLRs to two standard, full-size XLRs. Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates. Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-4 to attach using a 3/8-16 screw with ARRI locating pins. 30.5cm cable length with custom low profile right angle mini XLR connector. Product Weight: 56gProduct Dimensions (WxLxH): 35 x 362 x 28mm

€175.00*
gross: €208.25
MID49 ARCA Top Handle
MID49 ARCA Top Handle SKU: M49-HAN-ATH ARCA Top Handle is a lightweight sliding camera handle that attaches to ARCA Top Mount (RED Komodo, Komodo-X, V-Raptor) and has 1/4-20 and 3/8-16 mounting holes with ARRI locating pins in standard spacing. M4x20mm threaded holes available on multiple sides for attaching Rod Bracket (15mm LW) or other ARRI M4 accessories. Hot shoe mount on the front and rear for on-camera lights, microphones, and other shoe accessories. Product Weight: 120gProduct Dimensions (WxLxH): 37 x 110 x 67mm

€125.00*
gross: €148.75
MID49 ARCA Top Plate (114mm)
MID49 ARCA Top Plate (114mm) SKU: M49-ATM-PLT-114 ARCA Top Plate (114mm) is a lightweight top plate that attaches to ARCA Top Mount (RED Komodo, Komodo-X, V-Raptor) and has 1/4-20 and 3/8-16 mounting holes with ARRI locating pins in standard spacing. M4x20mm threaded holes available on multiple sides for attaching Rod Bracket (15mm LW) or other ARRI M4 accessories.114mm dovetail length.

€49.00*
gross: €58.31

Ähnliche Produkte

Free shipping
8Sinn Cage for Canon C70 V2
8Sinn Cage for Canon C70 V2 SKU: 8-C70 C The 8Sinn Cage for CANON C70 has been designed to provide practicality and safety to your camera, and at the same time, simplify your work. The unique and ergonomic shape of the cage is perfectly adjusted to the camera and provides access to all its features. It is filled with functionality thanks to multiple mounting options provided. There are several 1/4" mounting points and 3/8" mounting points with Arri locating points. There is a cold shoe mount and a built-in Safety NATO Rail, which is an extremely convenient addition to the cage. It allows you to mount NATO system accessories without the need for additional Safety NATO Rail. The cage is mounted to the camera with 3 mounting screws, two at the bottom and one at the top. The bridge that is added on the top of the cage is here to provide even more stability and keep the camera tighter in place. There is one of the cage-to-camera attachment points on it. What’s more, this part of the cage provides compatibility with the original Canon C70 top handle. Dimensions: 48mm x175mm x 108mmWeight: 335g Key features 4-piece cage (pre-assembled)3 points of cage-to-camera attachment (2 x bottom screws, 1x top screw)1/4" mounting points3/8" mounting points with Arri locating pointsM4 mounting points (top front)Built-in Safety NATO RailCold shoe mountAluminum madeCompatible with the original Canon top handleIncludes mounting point for the original Canon top handle (top bracket) 8Sinn HDMI Cable Clamp for 8Sinn Cage for Canon C70 NOT INCLUDED

€180.00*
gross: €214.20
Free shipping
Chrosziel Kit LWS + Cage + Handle for Canon EOS C70 401-C70-KIT
Chrosziel LWS kit + cage + mount for Canon EOS C70 SKU: 401-C70-KIT Lightweight bracketing (LWS), cage and grip kit for Canon EOS C70: LWS bracket with integrated shoulder strap, 2 rosette mounts, V-lock plate, tripod plate, 2 rods in 15mm standard and 205mm long. The cage has integrated 1/4 and 3/8 inch threads with anti-twist.

€1,660.00*
gross: €1,975.40
