MID49 Breakout Boxes and Side Plate Bundle for RED KOMODO-X
Free shipping
MID49 Breakout Boxes and Side Plate Bundle
SKU: M49-BOB-SPB-X

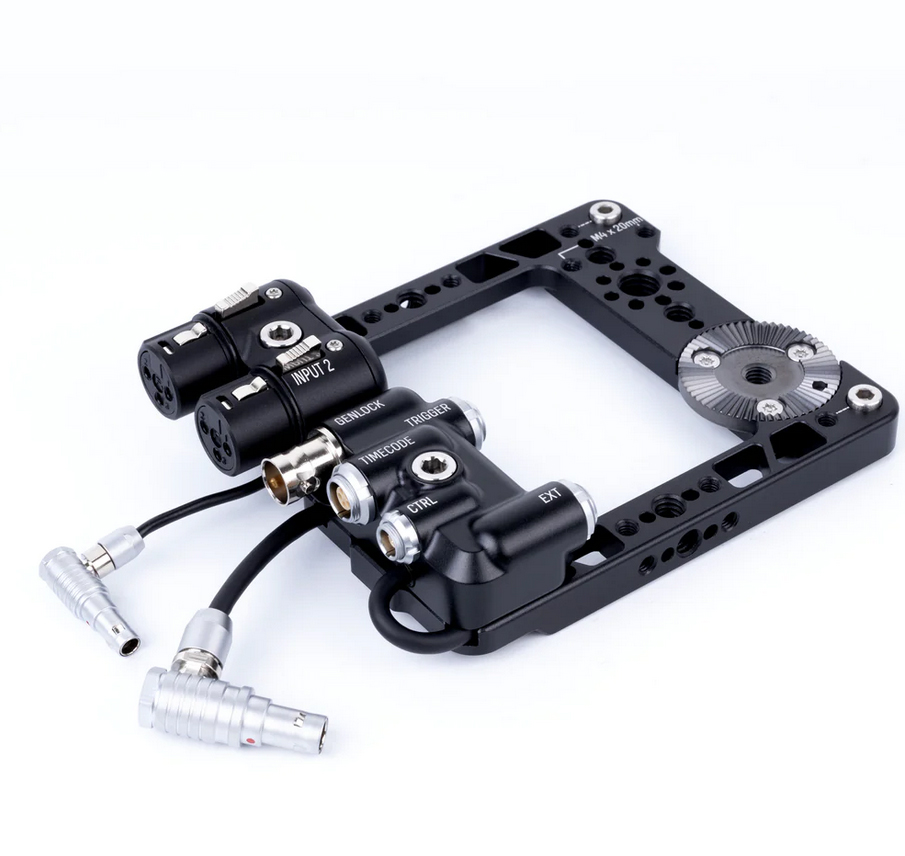

Breakout Boxes and Side Plate Bundle for RED KOMODO-X includes
Accessory Items
MID49 EXT Breakout EB-1 (RED Komodo, Komodo-X, V-Raptor)
€350.00*
gross: €416.50
MID49 EXT Breakout EB-1 SKU: M49-BOB-EB1
EXT Breakout EB-1 (RED Komodo, Komodo-X, V-Raptor) converts the camera's 9-pin 0B LEMO EXT port to industry standard connectors listed below.
Genlock: 75-ohm BNCTimecode: 5-pin 0BCTRL: 4-pin 00Trigger: 3-pin FischerEXT Pass-Through: 9-pin 0B
Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates like Breakout Side Plate Only (RED Komodo-X)(sold separately).
Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Mounting Bracket (ARRI 3/8-16, Rear Mount) (sold separately), which allows the EB-1 to attach using a 3/8-16 screw with ARRI locating pins. 8 inch (20cm) cable length with right angle LEMO-compatible connector.
Weight: 70gDimensions (WxLxH): 54 x 271 x 19mm
MID49 Audio Breakout AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini, Z CAM E-2)
€175.00*
gross: €208.25
MID49 Audio Breakout AB-1
SKU: M49-BOB-AB1
Audio Breakout AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini, Z CAM E-2) is a passive adapter that converts the camera's 5-pin 00 LEMO to two standard, full-size XLRs.
Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates like RED Komodo Breakout Side Plate(sold separately). Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows the AB-1 to attach using a 3/8-16 screw with ARRI locating pins.
Also compatible with Z CAM E2 (all models) but may conflict with CTRL 1 port or COM port due to connector angles.
20cm cable length with right angle LEMO-compatible connector.
Product Weight: 42gProduktabmessungen (B x L x H): 35 x 277 x 28mm
MID49 Breakout Side Plate for RED KOMODO / KOMODO-X
€139.00*
gross: €165.41
MID49 Breakout Side Plate
SKU: M49-BOB-SPL-KX
Breakout Side Plate for RED KOMODO and RED KOMODO-X attaches to the side of the RED Komodo and Komodo-X and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Two offset M4 holes matching RED's spacing allow certain 3rd party products to be attached like GDU Atlas Side Handle (Komodo, Right)When used on RED Komodo-X, rear 1/4-20's provide ideal mounting locations for Audio Breakout AB-1 (RED Komodo-X) and EXT Breakout EB-1 (RED Komodo, Komodo-X).When used on the original RED Komodo, combine with Audio Breakout AB-3 (RED Komodo) and EXT Breakout EB-1 (RED Komodo, Komodo-X).The Side Plate is compatible with RED's PL Mount support, as seen in this installation guide.Recessed cable loops in the side plate allow for clean cable management.
