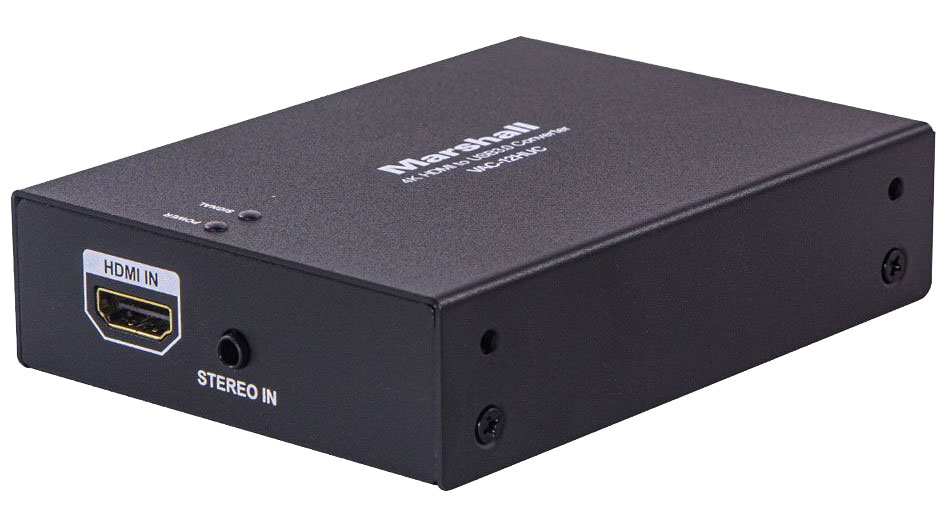

Marshall VAC-12HUC HDMI - USB-C Converter

Marshall VAC-23SHUC The VAC-23SHUC converts either 3GSDI or HDMI 2.0 to USB-C (USB3.0/USB2.0) up to UHD 3840x2160p at 30fps. 3GSDI and HDMI inputs have active loop-thru allowing the original high-quality source to be routed to monitors or other equipment as a pass thru. Common applications include live streaming, video conferencing and other PC or MAC-based applications. Power is supplied by the USB-C connection to the host computer reducing clutter and eliminating the need for an external power supply. The rugged and compact design makes for easy portability and mobility. The VAC-23SHUC's simple plug-and-play design uses UVC protocol to enable itself as a Camera Device. UVC protocol allows the host computer to set the parameters for the USB stream such as resolution, frame rate and aspect ratio. Features 3G/HDSDI input with active loop-through output supports formats up to 1080p50/60HDMI 2.0 input with active loop-through outputUSB 3.0 output is YUY2 format (equivalent to SDI 4:2:2 sampling). USB 2.0 mode is MP4.USB output audio sampling rate is 44.1 KHz (not rate converted)All power derived from USB port10 Bit input sampling for improved image processing.Plug-and-Play operation. No special drivers requiredCompatible with popular applications including Zoom, Skype, OBS Studio, and many more HDMI Color Sampling Formats supported 1080p/720p: YCbCr 4:4:4 8/10/12bits, YCbCr 4:2:2 8bits and RGB 8/10/12bits 2160p: YCbCr 4:4:4 8bits, YCbCr 4:2:0 8/10/12bits, RGB 8bits 3GSDI Color Sampling Formats supported: YCbCr 4:2:2 10bits

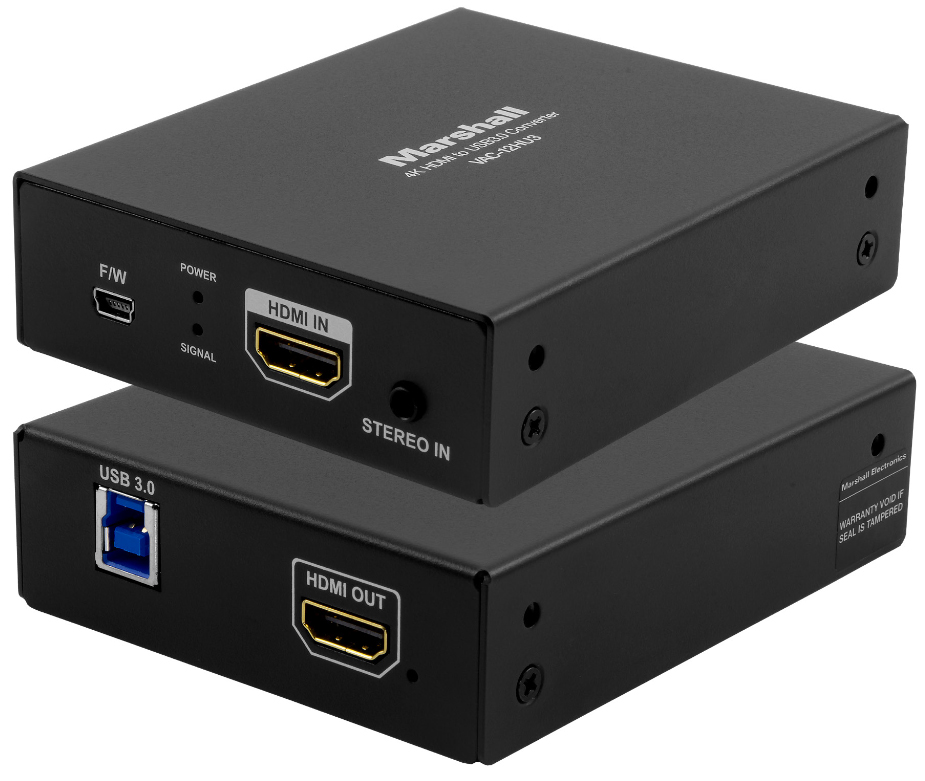

Marshall VAC-12HU3 Marshall Electronics VAC-12HU3 converts HDMI 2.0 input to USB 3.0 output with active HDMI loop-through for use in live screen capture, video conferencing, or any other professional PC-based applications. The VAC-12HU3 features a rugged and compact design for enhanced portability with power provided through the USB 3.0 output. The Marshall VAC-12HU3 is suitable for use in live streaming and Professional AV workflows including podcasting, web conferencing, video production, and screen capture. The VAC-12HU3's simple to use plug-and-play design offers an instant hassle-free setup for going live, right out of the box. HDMI 2.0 Input with active loop-through output (supports formats up to UHD)Stereo analog audio input activates automatically when audio source is plugged inUSB 3.0 computer interface with UVC control and scaling (backwards compatible to USB 2.0)All power derived from USB 3.0 portPlug-and-Play operation. No special drivers required.Compatible with popular applications including Zoom, Skype, OBS Studio, and many more
