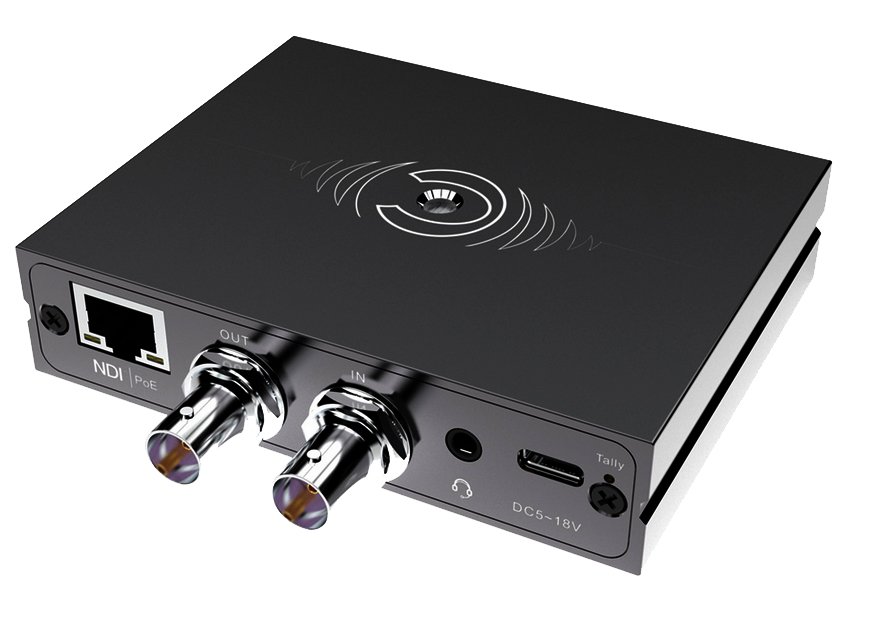

Kiloview N3-s 3G-SDI NDI Bi-Directional Video Encoder/Decoder

Kiloview N3-s

Kiloview N3 3G-SDI/Full NDI converter is a bi-directional converter that supports 3G-SDI video input (encoder) to Full NDI with 3G-SDI loop through for view on monitor, or 3G-SDI video output (decoder) from full NDI. Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, Kiloview N3 is your best choice to get access to the fabulous NDI world for professional broadcast-grade IP production.

NDI encoding + decoding, one unit, dual use

Plug-and-play operation, SDI to NDI®, or NDI® to the screen
Equipped with SDI input and output interfaces, which can be looped out on the monitor during streaming, or output SDI signal during decoding
Preset 10 outputs, including 9 decoding addresses and 1 blank preset box (customizable background color), and USB extended keyboard for switching

High quality and low latency transmission

Encoding and decoding both support 1080p60 (HD) resolution, backward compatible with SD/HD/VESA resolution and other special resolutions
Ultra-low latency, end-to-end latency is less than 100ms
FULL NDI high-quality encoding ensures excellent image quality, and lossless audio encoding ensures high-fidelity sound quality

More advanced functions at your palm

Built-in large-size Tally light to indicate PGM or PVW status
Support for PoE (Power over Ethernet) and 5-18V DC input powered by USB, mobile power or camera battery
Support voice intercom via USB headset
PTZ control with protocols of Visca/Visca over IP/Pelco (special PTZ control protocols can be customized)
Integrated with KiloLink Server for centralized management
SDK/API provided for secondary development

Technical data

Video input: 1x3G-SDI
Video output: 1x3G-SDI（Loop or decoding output）
Audio port: 1x3.5mm
Network: 1xRJ45 1000Mbps Ethernet port (with PoE)
Video resolution: Up to 1080p60 (backward compatible with SD/HD/VESA)
NDI codec capacity: 1xNDI encoding or 1*NDI® decoding
NDI codec feature: FULL NDI HD encoding, typical bitrate: 125Mbps@1080p60
LED indicator: Tally light, power light and status connection light
Power: PoE, DC, D-Tap (camera) optional. 5-18V wide range supported
Voice intercom: Customization
PTZ Control: Network PTZ and Serial Port
DHCP: Support
Management: Web UI and remote management with KILOVIEW KiloLink Server
Power consumption: 6w
Working Temperature -20~45℃ (Storage temperature: -20~70℃)
Dimension: 100 mm x 80 mm x 24 mm /0.2 kg
