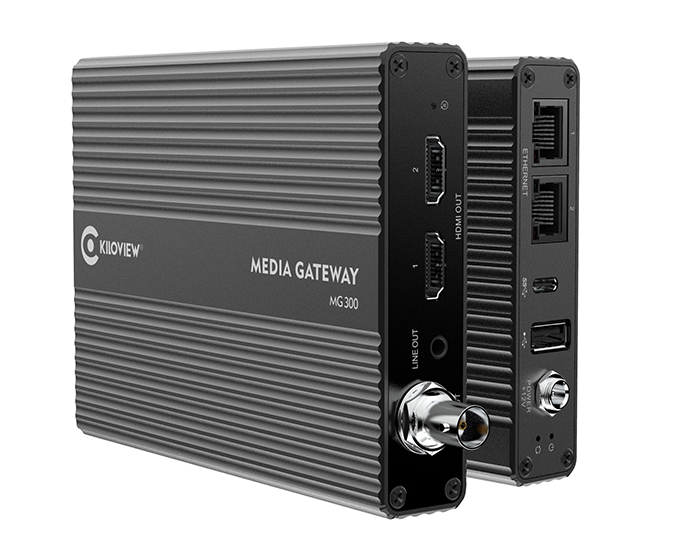

kiloview MG300 V2 IP Video Media Gateway

kiloview MG300 V2

Kiloview MG300 V2 media gateway is a high-performance embedded multi-functional device. It integrates functions such as multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to SDI and HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.

MG300 V2 is compatible with NDI|HX (2.0) , SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.It supports the decoding with all those different protocols, at the same time supports up to 9 protocols cross conversion. Each input stream is converted into 4 same or different protocols output.

Multi-channel video streams can be re-published as a Multiview video source with free layout; Up to 9 channels of IP streaming distribution (including the Multiview video source) and each stream can be pushed to up to 4 same or different targets simultaneously.

Kiloview MG300 V2 highlights video transcoding between H.264 and H.265. It can also combine multiple video streams into a merged video and push it to the live broadcast platforms.

Technical data

• Network: 2*100M/1000M RJ45 adaptive Ethernets
• Decoding output: 1*SD/HD/3G-SDI, up to 1080P 60Hz, 1*HDMI, up to 3840*2160@60Hz
• Analog audio output: 1*3.5mm Line out
• Analog audio input: 1*3.5mm Line in
• USB: 1*USB 3.0 Type-A
• Access protocol: NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize)
• Output protocol: NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP
• Protocol conversion: 9 channels1080P video conversion
• Streaming distribution: 50 channels of RTSP, 36 channels of RTMP/SRT (Not more than 600Mbps)
• Streaming distribution capability: 9 channels*4 channel 1080P
• Number of decoding: 4K 30Hz H.264/H.265: up to 4 simultaneous channels, 1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels, 1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265：up to 9 channels simultaneously
• Video decoding standard: H.264, H.265
• SDI output format: 1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60
• HDMI output format: 4K 3840x2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50, Compatible with VESA standard format
• Video rate range: 128Kbps ~ 40Mbps
• Audio decoding: AAC G.711 (aLaw/uLaw)
• Audio rate range: AAC: 8Kbps ~ 320Kbps G.711: 64Kbps
• Decoding delay: ≤200ms
• Split display style Support: 1/2/3/4/5/6/7/8/9 splitting, Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding
• Management interface: Web
• Remote management: Support
• Remote firmware upgrade: Support
• Operating temperature: -25 ~ 60°C
• Dimension & weight: 140*105*28mm (380g)
• Power supply: 12V/1A
