Core SWX MACH-Q4MBi B-mount charger

Core SWX MACH-Q4MBi

Core’s Micro Intelligent Charger Series continues to be the most advanced in the industry. Now with the inclusion of Adaptive Charge Control (ACC) and SafeFly Standalone Discharge function, the new Mach4 Micro chargers are at the pinnacle of technology. An upgraded charge circuit design now allows you to four 98wh packs in less then 1hr40min.   The units have an all aluminium build and made in the USA.

Adaptive Charge Control(ACC): Core SWX’s new Adaptive Charge algorithm’s can improve battery longevity and performance up to 30% over the life of the pack. The new ACC algorithm evaluates the battery pack based on age, cycle count, and last full charge capacity, to determine the appropriate charge routine for the pack. While in charge mode, the charger continually monitors the pack for feedback during the charge process to adjust as needed. This process insures top performing packs are charged as fast as possible, while older packs are charged efficiently while accounting for changes in cell performance overtime to minimize degradation and capacity loss.

SafeFly Standalone Discharge:  In addition to battery management, the Mach4 Micro Chargers include SafeFly mode. The updated chargers add standalone discharge when AC mains power is not present. This feature provides additional value and allows you to carry one charging system for both charge and discharge of the battery packs. With one touch of the onboard membrane button console or via the Voltbridge App, the chargers will discharge all packs connected to under 30%. By initiating SafeFly mode when the charger is connected to AC mains, the charger with either discharge or charge packs to 30%, to insure all packs are ready for shipment.

Features

Four position charger, 4A Simultaneous rapid charge, Adaptive Charge Control
Four independent charge bays with Simultaneous charging
Approximately 90min. charge time for four 98Wh batteries
Red and green status LEDs with diagnostic LCD and Test function
Compatible with Voltbridge and Voltbridge Mesh Enterprise
90-240 VAC worldwide compatible input voltage
Recessed carry handle
Quick Charge Current: 4A Simultaneous
Discharge Current: Up to 2A per channel
LCD: 4x20 Character Backlit
Input Voltage: 90-240VAC 50/60Hz

Details of the manufacturer

  • Core SWX LLC,
  • Ross Kanarek
  • New York HQ
  • 91 Commercial St.
  • Plainview NY, 11803, Unites States

(516) 595-7488

support@coreswx.com

Details of the person responsible for putting the product on the European market

  • VISION2see GmbH
  • Alexander Kirst
  • Bajuwarenring 14
  • 82041 Oberhaching, Germany

+49 89 693 991 50

info@vision2see.de

Warnings and safety information

APX-360V / APX-360HV / HLX-360MXAG / HLX-360MXB / HLX-360MXS - MATERIAL SAFETY DATA SHEET

HLXPRIME AG / HLXPRIME S - Safety Data Sheet

HLX-275MXAG / HLX-275MXB / HLX-275MXS - Safety Data Sheet

XPL150A / XPL150S LG BASED - Safety Data Sheet

PB70C300 - Safety Data Sheet

XPL95R - Safety Data Sheet

Hypercore98S / Hypercore98A / HCS98S / HCS98AG - Safety Data Sheet

NANO-G150 / NANO-V150 - Safety Data Sheet

Nano-VBR98 / Nano-U98 - Safety Data Sheet

PBEBMPC4 - Safety Data Sheet

SL-E6 - Safety Data Sheet

HLX-XLS / HLX-XLAG - Safety Data Sheet

NEO9AG / NEO9S - Safety Data Sheet

CoreN98AG / CoreN98S - Safety Data Sheet

EX-J65 - Safety Data Sheet

APX360V - Safety Data Sheet

PB70B - Safety Data Sheet

HCK-250 - Safety Data Sheet

HLX-150AG / HLX-150S / HLX-150MXAG / HLX-150MXS / HLX-150MXB - Safety Data Sheet

HCXL-AG / HCXL-V - Safety Data Sheet

Hypercore 190AG / Hypercore 190S - Safety Data Sheet

Nano-VBR98 / Nano-C98 / Nano-V98 - Safety Data Sheet

XPL130S / XPL130A - Safety Data Sheet

NANO-V50 - Safety Data Sheet

EVO - Safety Data Sheet

Nano-VBR98 / Nano-C98 / Nano-V98 - Safety Data Sheet

HCM9AG / HCM9S / HCM9R - Safety Data Sheet

MV6 Maverick - Safety Data Sheet

XPL190A / XPL190S / XPL190 RED LG BASED - Safety Data Sheet

HLX-150AG / HLX-150S - Safety Data Sheet

PBEDGE - Safety Data Sheet

TLF970 - Safety Data Sheet

NANO-G150 / NANO-V150 Safety Data Sheet

PBES - Safety Data Sheet

PB70BMCC - Safety Data Sheet

PB-EDGE / PBE-LITE - Safety Data Sheet

Nano-VBR98 / Nano-C98 / Nano-V98 - Safety Data Sheet

NP-L60 / NP-50 - Safety Data Sheet

Hypercore PRIME 190AG / Hypercore PRIME 190S - Safety Data Sheet

HC8S / HC8R / HC8AG - Safety Data Sheet

NEOS98AG / NEOS98S - Safety Data Sheet

PBELINK - Safety Data Sheet

HLX-9AG / HLX-9S - Safety Data Sheet

Nano-VBR98 / Nano-C98 / Nano-V98 - Safety Data Sheet

NANO-G150 / NANO-V150 - Safety Data Sheet

Hypercore 150AG / Hypercore 150S - Safety Data Sheet

Hypercore Slim 7AG / Hypercore Slim S / Hypercore Slim RED - Safety Data Sheet

APX-360V / APX-360HV / HLX-360MXAG / HLX-360MXB / HLX-360MXS - Safety Data Sheet

Hypercore 150AG / Hypercore 150S / Neo-150AG / Neo-150S - Safety Data Sheet

HLX-9AG / HLX-9S / HLX-9MXAG / HLX-9MXS / HLX-9MXB - Safety Data Sheet

HCK-166 - Safety Data Sheet

Nano-V98 / Nano-C98 / Nano-G98 - Safety Data Sheet 2024

Related links of the manufacturer
Skip product gallery

Accessory Items

Core SWX GPM-X2B
Core SWX GPM-X2B Mini Dual Travel Battery Charger (B-Mount)

Core SWX GPM-X2B Charge your B-mount batteries while traveling with the GPM-X2B Mini Dual Travel Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this compact travel charger can charge a single battery at a 3A rate or two batteries simultaneously at 1.5A. Since it sits vertically with two batteries mounted, the GPM-X2B takes up less space than traditional chargers. Features 2 position travel charge for Helix B-mount battery packsCharges Core Helix B-mount packsRed and green status LEDsLightweight and compact90-240 VAC worldwide compatible input voltageInput: 100V-240AC 50/60HzCharge Current: 1 battery 3.0A, 2 batteries 1.5ASize: 14 cm x 11,4 cm x 7,6 cmWeight: 0,5 kg

Regular price: €275.00
gross: €327.25

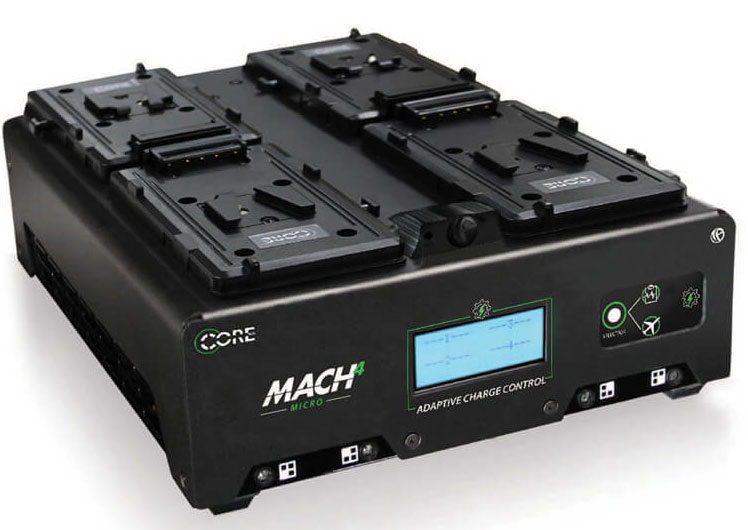

Core SWX MACH-Q4MSi
