Chrosziel Mount Adapter Burano-to-PL
SKU: MA-BURPL-HR12

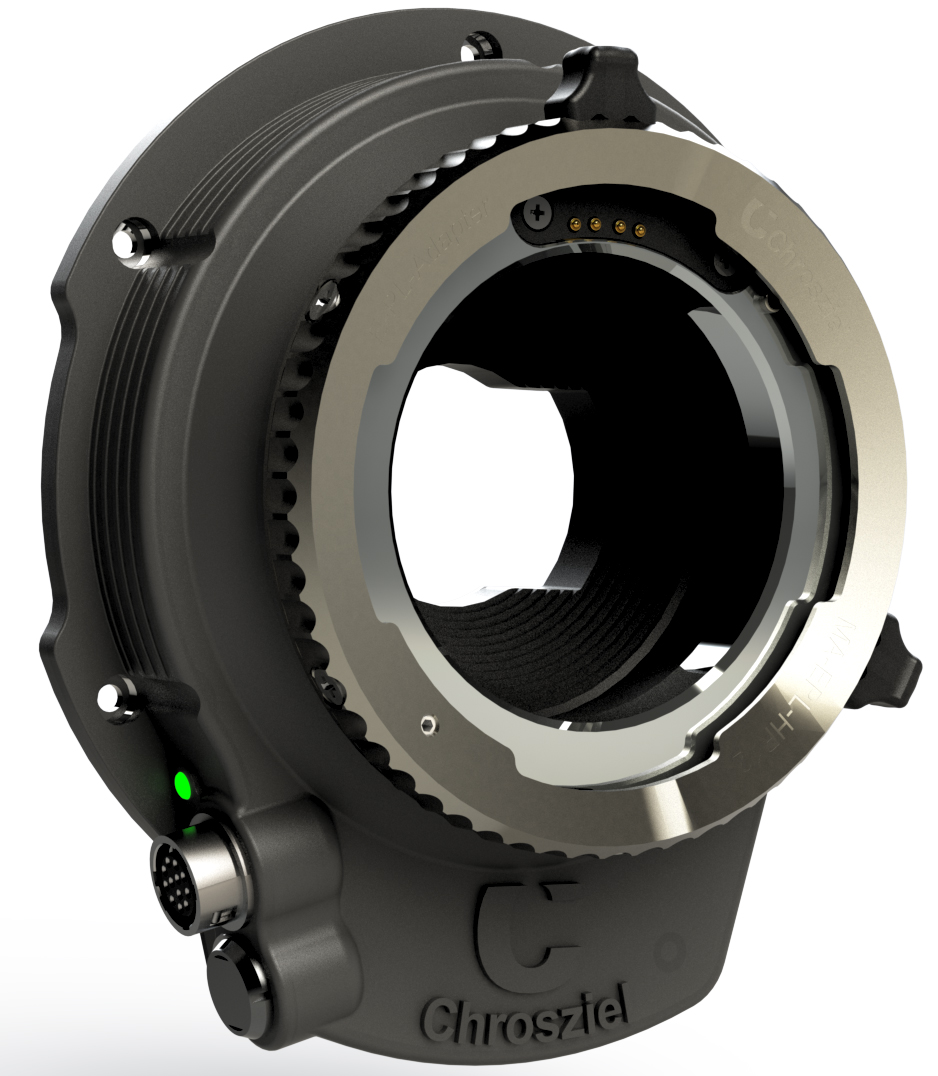

The Chrosziel Burano Mount is a Sony Burano camera to PL lens “hot mount” adapter with metadata communication. Each mount has the required pin contacts necessary to transmit lens metadata through to the camera and conversely the contacts provide lens control through a 12-pin Hirose out connection to an ENG lens.
When the Burano Mount is used with cine lenses with LDS or Cooke /i-Data the metadata such as iris setting, focus distance and zoom focal length are transmitted through the adapter and appear in the viewfinder, on the monitor and are recorded in the video file for use in post processing.
Using the Burano Mount with an ENG servo motor-controlled broadcast lens, the Focus/Iris/Zoom servo’s can be controlled through the camera and are compatible with the Sony Burano GP-VR100 hand grip, Sony FX9 top handle, RCP or camera’s web GUI. This allows for easy and full control of an ENG broadcast lens through the Sony Burano camera. The Meta Mount is shimmable with the included shim set.
Key Features
- Sony Burano Mount Camera to PL mount Lens
- Electronic contacts for metadata communication and lens control
- Lens metadata displayed in camera and recorded to file
- Shimmable with included shims
- Full focus/Iris/Zoom control on servo motor ENG lenses
Technical data
- Burano Mount camera to PL mount lens
- Contact and electronics for Metadata communication
- 12-pin Hirose out for ENG lens control
- Mounted with 5 screws to the native camera body
- USB Type min A-B (for firmware updates only)
- Power supply 10-16V (Lemo compatible 0B 5-pin)
- Power consumption max. ca. 350mAh @ 12V
In the box
- 1x Burano Mount PL adapter (MA-BURPL-HR12)
- 1x MN-AB (power supply cable 12 Volt A/B D-Tap – 0B 5-pin Lemo)
- 1x F55-A2-P-CAM
- 1x Shim Set
Details of the manufacturer
- Chrosziel GmbH, Dr. Till Vogels
- Otto-Hahn-Strasse 12-14
- 85521 Ottobrunn b. München, Germany
+49 089 / 901091 - 0
