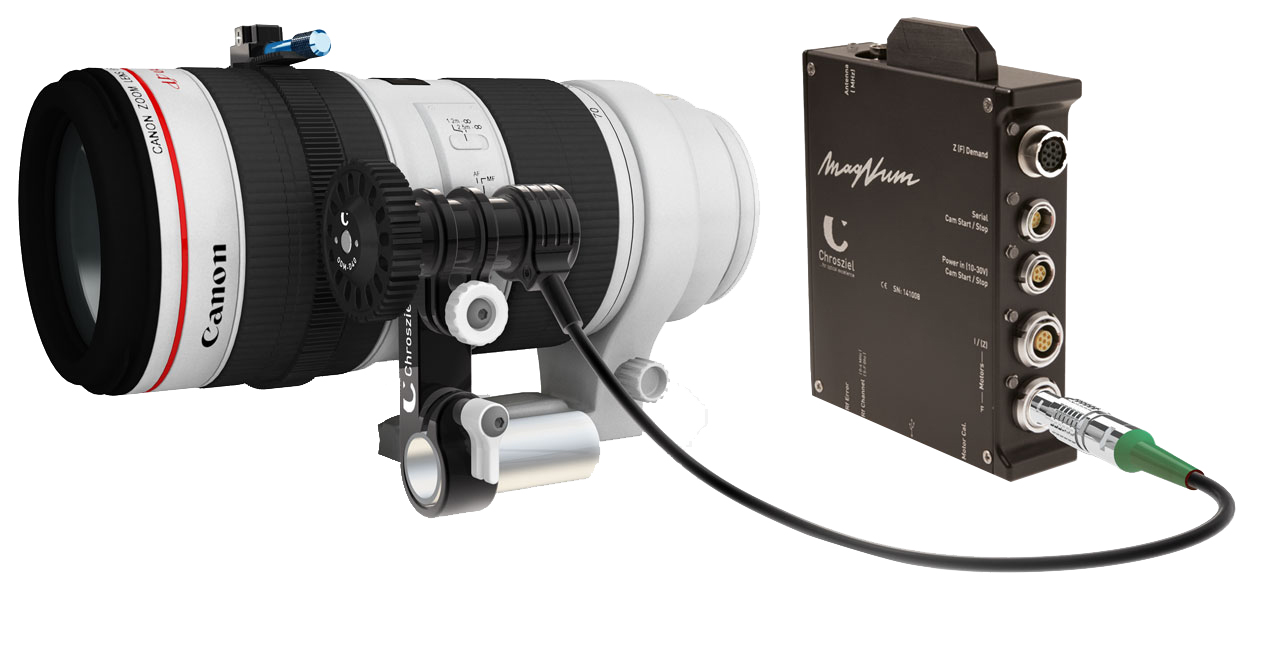

Chrosziel CDM-100 Digital Motor

Chrosziel Zoomer SKU: CDM-UNI-Z2 The Zoomer is a compact and universal zoom motor that can be pivoted to almost any lens by simply mounting it on a 15mm rod. The universal motor unit CDM-UNI-Z2 fits seamlessly into the operating functions of the Sony cameras of the FX9 / FX6 / FS7 / FS5 series. The servo drive is controlled via the zoom rocker on the handle. The motor control can be addressed via Sony's camera-specific protocol and also works independently of the camera signals when a LANC zoom rocker is plugged directly into the servo. Due to the included Chrosziel Flexi toothed ring (#206-30), the Zoomer can be used with almost any zoom lens even without toothing. The multi-function handgrip, which in addition to the recording function and a zoom rocker also provide control over the camera menu and other freely selectable functions, are extremely popular on current video cameras with large sensors and are indispensable for effective operation. The Chrosziel Universal Zoom Servo Drive now allows optimal use of all manual zoom lenses together with the multi-function handgrip. For this purpose, the Zoomer is slid onto a 15mm rod and swiveled onto the zoom lens. Two plug-in cables establish the connection with the camera. One cable is used for the power supply from the camera battery, the second for the connection to the control commands between the handle and the camera. When using a standard LANC zoom rocker or handle with the Sony PXW-FS5, PXW-FS7 and PXW-FS7II, the servo is connected between the handle and the camera via an input and an output jack to receive all zoom control signals. For setup with the Sony PXW-FX9 camera, a Y-cable is used that accepts the Sony multi-connector and connects to both the input jack of the Zoomer and the input jack of the camera. For the Sony ILME-FX6 camera, a Y-cable is used and connects the 3.5mm connector of the Sony handgrip, input jack of the Universal Zoom Servo Drive, and the Sony camera.  FEATURES Universal zoom motorControlled via Sony and LANC handgripCamera control signals forwarded Technical data Power supply 10-30V (Lemo compatible 0B 5-pin)2.5mm socket (control command In)3.5mm socket (control command In&Out)USB Type min A-B (firmware updates)Torque 0.5NmPower consumption max. approx. 350mAh @ 12V IN THE BOX 1x CDM-UNI-Z2 Digital motor unit1x LANC cable1x LANC extension cable1x MN-AB-A90 (power supply cable 12 Volt A/B D-Tap – angled 90° rotated 0B 5pin) 1x 206-30 Flexi Gear Ring (Ø 60-120mm)1x Gear Drive, mod. 0.8 (Ø 40mm)1x CAB-FX9 for Sony PXW-FX9 compatibility1x CAB-FX6 for Sony PXW-FX6 compatibilityUSB Mini Adapter

Chrosziel Digital Motor CDM-100M for Freefly MoVI Pro Gimbal Chrosziel Digital Motor CDM-100M with connector for Freefly MoVI Pro Gimbal Camera Stabilizer, 24V operating voltage, with cable 400mm length and Molex Micro-Fit 3 6pin connector plug, incl.EU15-19 Universal Rod Clamp for Ø 15/19mmCDM-D40 Gear Drive, mod. 0.8, Ø 40mmCDM-D60 Gear Drive, mod. 0.8, Ø 60mm
