Blackmagic Studio Camera 4K Plus G2
Free shipping
Product number:
SW27422

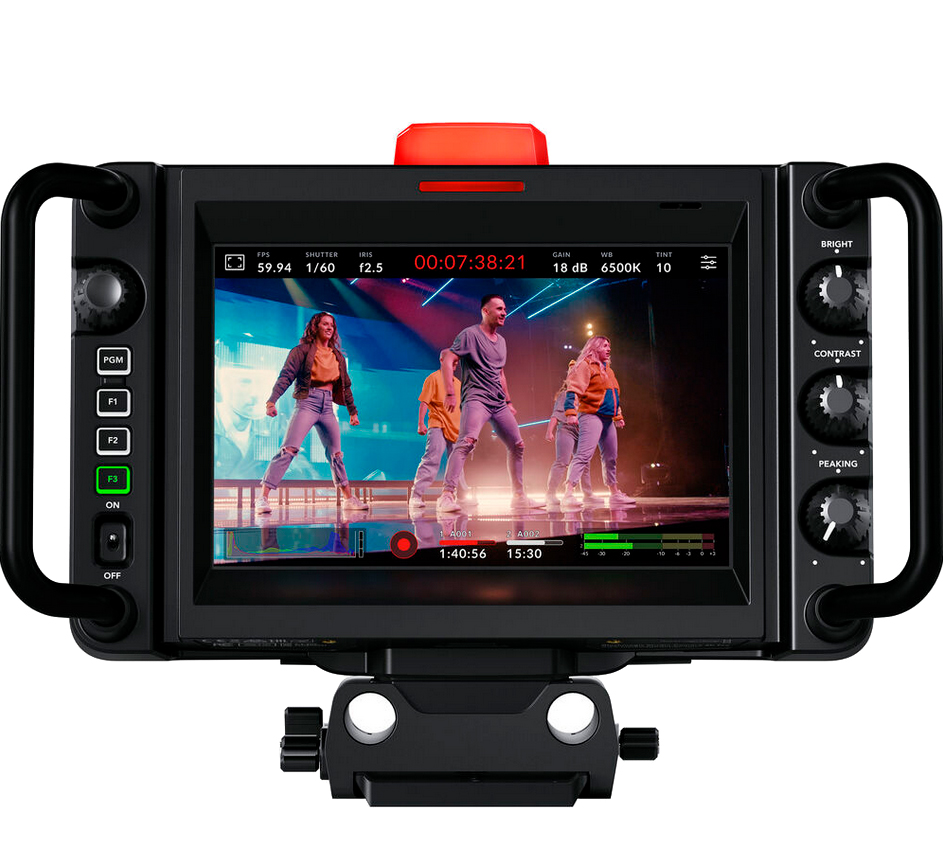

Blackmagic Studio Camera 4K Plus G2
SKU: CINSTUDMFT/G24PDDG2
The Blackmagic Studio Camera 4K Plus G2 has the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so you can create amazing images even in dimly lit venues. It even works under moonlight! Advanced features include tally, camera control, built in color corrector, Blackmagic RAW recording to USB disks and much more! You can even add a focus and zoom demand for lens control!
Camera Features
- Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
- Lens Mount: Active MFT Mount
- Lens Control: Iris, focus, zoom on supported lenses
- Dynamic Range: 13 Stops
- Dual Native ISO: 0dB and 18dB gain
- Sensitivity at 0dB Gain: f11 with 2160p59.94 / f12 with 2160p50 at 2,000 lux with 89.9% reflectance
- Signal to Noise Ratio: 63dB for 2160p
- Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps
- Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD
- Focus: Auto focus available using compatible lenses
- Screen Dimensions: 7 inch 1920 x 1200
- Screen Type: LCD capacitive touchscreen
- Screen Brightness: 600 nits
- Controls: Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials
- Mounting Options: 2 x 1/4 inch tripod mount, 1 x 3/8 inch tripod mount
Connections
- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 1.5G, 3G, 6G, 12G
- HDMI 2.0 Video Outputs: 1
- Analog Audio Input: 1 x 3.5mm Stereo Input. Can also be used for Timecode input
- Analog Audio Output: 1 x 3.5mm TRRS mini jack for headphones with mic
- Reference Input: Program SDI Input on camera or on Blackmagic Studio Converter
- SDI Audio Output: 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
- Remote Control: Remote camera control over SDI, HDMI or USB Ethernet
- Computer Interface: 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A
