Z CAM E2-F8 Mark II Full Frame 8K NDI Camera

Z CAM E2-F8 Mark II Full Frame 8K Professional NDI Camera

SKU: ZCE2F8M2N

The Z CAM E2-F8 Mark II Full-Frame 8K Professional NDI Camera is designed for professional film, broadcast, and live production environments where high resolution, a compact design, and flexible network integration are essential. With its full-frame CMOS sensor and a maximum resolution of up to 8K, the camera provides a solid foundation for high-quality cinema, commercial, event, and multicam productions. The high sensor resolution enables detailed footage, provides headroom for reframing and downsampling, and supports flexible post-production workflows.

The E2-F8 Mark II NDI combines classic cinema camera features with modern IP-based production capabilities. This makes it particularly well-suited for setups where camera signals need to be efficiently integrated into network environments - such as live productions, studio installations, streaming workflows, or remote control applications.

For professional workflows, the camera supports various recording formats and image profiles, including ZRAW, ProRes, H.265, H.264, as well as profiles such as Z-Log2, Rec.709, FLAT, and HLG. A 10-bit 4:2:2 output up to C4K 60 fps is available via HDMI 2.0. The camera uses CFast 2.0 media and offers connections such as Gigabit Ethernet, USB-C, Wi-Fi, 3.5 mm audio, LEMO audio input, LANC-compatible remote control, and serial ports.

Thanks to its compact aluminum housing, the Z CAM E2-F8 Mark II NDI is suitable not only for traditional rig setups but also for gimbals, drones, specialized mounts, and space-constrained multicam installations. The EF mount offers a wide range of lens options; optional mount adapters for M, MFT, PL, and LPL further expand its versatility.

Features

• Full-frame 8K cinema camera for professional film, broadcast, and live productions
• NDI version of the Z CAM E2-F8 Mark II for IP-based production and streaming workflows
• Full-frame CMOS sensor with 61 megapixels
• Up to 8192 x 3456 at 30 fps and 7680 x 4320 at 30 fps
• 14 stops of dynamic range
• Dual Native ISO 400 / 1250
• Support for ZRAW, ProRes, H.265, and H.264
• 12-bit ProRes RAW via HDMI with compatible Atomos Ninja V
• HDMI 2.0 Type A with video output up to C4K 60 fps, 10-bit 4:2:2

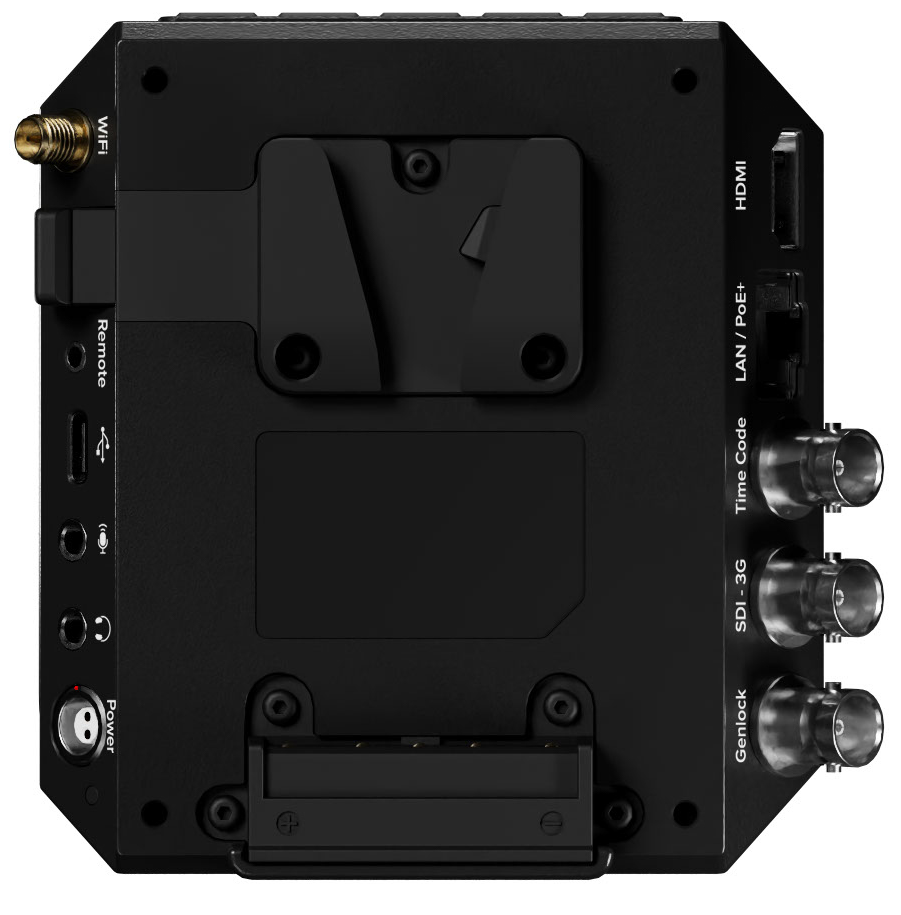

• Gigabit Ethernet, USB-C, Wi-Fi, serial ports, and LANC-compatible remote connection
• EF mount with optional mount adapter solutions for M, MFT, PL, and LPL
• Rugged, compact aluminum housing for rigging, gimbal, studio, and multicam setups
