Wooden Camera Ultra QR Articulating Monitor Mount (Baby Pin, C-Stand)

Wooden Camera Ultra QR Articulating Monitor Mount

SKU: A20003

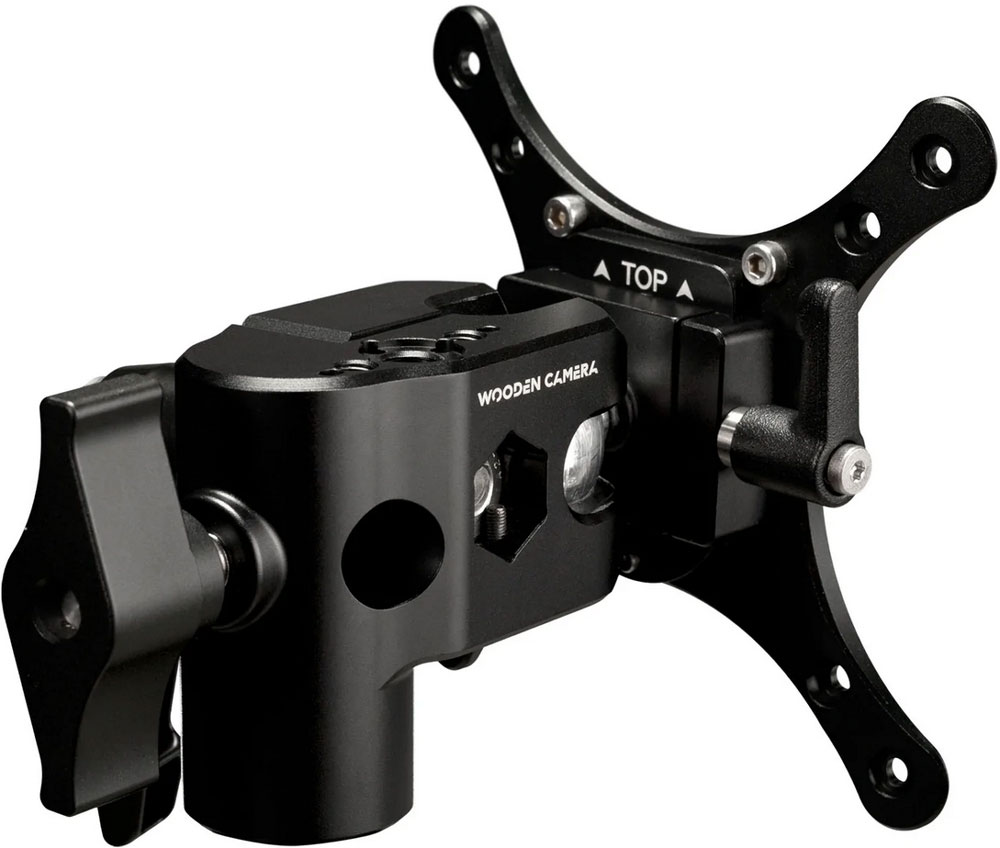

The Ultra QR Monitor Mount (Baby Pin, C-Stand) is an articulating monitor mount for securely attaching production monitors up to 20kg to a C-Stand or 5/8” (15mm) Male Baby Pin. Integrated ARCA Swiss dovetail clamp allows for quick release (QR) of the monitor from the C-Stand.

Installing the Ultra QR to a monitor can be done in two ways; utilizing the VESA Hole Standard (75mm or 100mm) or via the ARCA Swiss dovetail clamp with select SmallHD production monitors that utilize the ARCA Swiss Slide-On Rail.

The Ball Clamp system allows for a wide range of articulation while retaining friction, allowing users to adjust the position of the monitor without loosening the handle. Variable positioning includes upwards and downwards tilt, side-to-side pan, and complete 360* rotation from landscape to portrait viewing mode.

Featuring ARRI-Standard 3/8"-16 and 1/4"-20 mounting points located directly on the top of the monitor mount for attaching wireless receivers, secondary monitors, and more.

Compatible with SmallHD 4K monitors and many more.

  • 4x Mounting Screws (M4 x 10 mm)
  • Weight: 562 g
  • Dimensions: 140 mm x 120 mm x 120 mm
