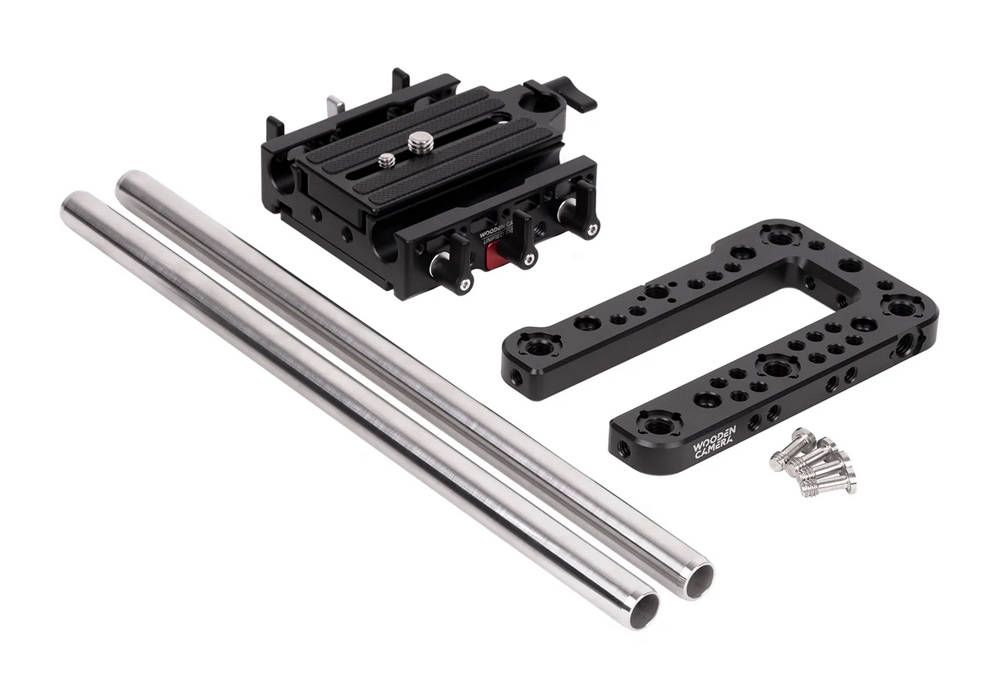

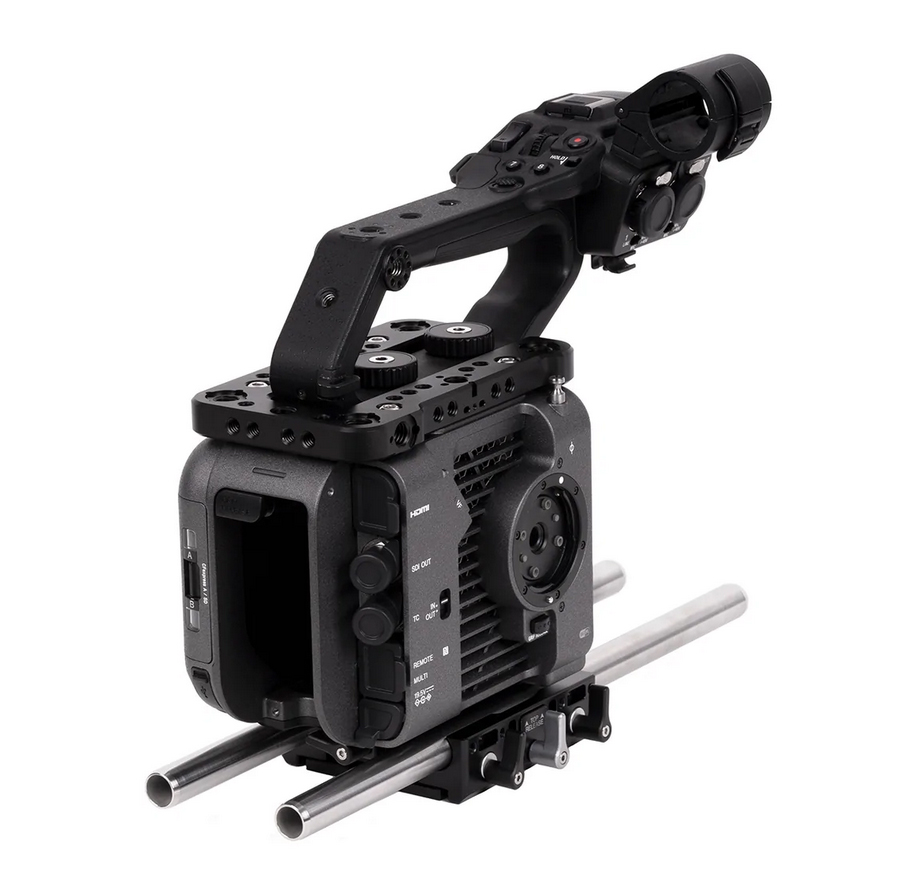

Wooden Camera Sony PXW-FX6 Unified Accessory Kit (Base)

Wooden Camera Unified Baseplate SKU: 222200 Unified Baseplate (Sony FX6, Venice, Venice 2, Rialto, URSA Mini, Mini Pro, Mini Pro 12K) is a quick release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have two locking thumbscrews per side. The baseplate quick releases in two ways, giving the user the option to take the 15mm lightweight rods or to leave them behind. To remove the camera and leave the LW 15mm rods behind, unlock the right side thumbscrew, slide the camera backwards a short distance, and lift straight up. The dovetail attached to the bottom of the camera is an ARCA Swiss standard shape which can integrate with many third party products. Additionally, there are threaded 1/4-20 holes on the bottom for attaching to gimbals or tripod plates when necessary. Also on this upper dovetail is a vertical 15mm rod opening which can be used to support a lens adapter foot directly in front of the camera body. The bottom of the baseplate is comprised of the Lower Quick Dovetail which has 1/4-20 and 3/8-16 threaded holes for attaching to tripod plate or ARRI standard bridgeplate such as Unified Bridgeplate (19mm) or Unified Bridgeplate (15mm Studio). To remove the camera from the included Lower Quick Dovetail and take the 15mm lightweight rods with you, unlock the left thumbscrew, slide the baseplate backwards a short distance, and lift up. This action exposes an integrated ARRI dovetail slot on the bottom which can attach directly to any 2060 Dovetails, Safety Dovetails, or Shoulder Rigs.For VCT-14 compatible mounting options, the Unified Baseplate can be attached to the Unified VCT Wedge Plate, providing easy counterbalance ability while on the shoulder. This could then be attached to the Unified VCT-14 Tripod Plate which would be attached to the tripod head. Includes 2 x 1/4-20 low profile screw 2 x 3/8-16 low profile screw Specifications Weight: 362.8 g Dimensions: 50.8 x 152.4 x 152.4 mm

Wooden Camera Top Plate (Sony FX6) SKU: 282900 Wooden Camera Top Plate (Sony FX6) is a top cheeseplate for the Sony FX6 that contours to the shape of the camera body. Arrays of 1/4-20 holes in standard spacing and 3/8-16 holes with ARRI accessory mounts are also available in several placesIncludes 4 x Screws (for attaching top plate directly to camera)

Shape Sony FX6 15 mm base SKU: B15FX6 The Shape Sony FX6 15 mm base is the lightweight baseplate with a 15 mm rod system is designed to match the Sony FX6 optical center. It features two attachment points (1/4-20 and 3/8-16) for securely mounting the Sony FX6 body. The baseplate also comes with a pair of 15 mm rods that are 12” long through the length of the baseplate. The bottom of the plate features several 1/4″-20 and 3/8″-16 mounting holes for mounting and balancing your camera on equipment like a tripod. Features Attaches underneath the camera with 3/8″-16 and 1/4″-20 screws Comes with an adapter plate Comes with (1 pair) 15 mm 12″ rods Mounting holes for securing the camera or a tripod plate Ratchet key knobs to secure rods removable rod bloc system at each end of the riser Rubber pads at the top of the base to protect your SONY FX6 Made of CNC aluminum In the box 1 x Sony FX6 15 mm base1 x 15 mm 12″ rods (1 pair)
