TVLogic LUM-242H
TVLogic LUM-242H

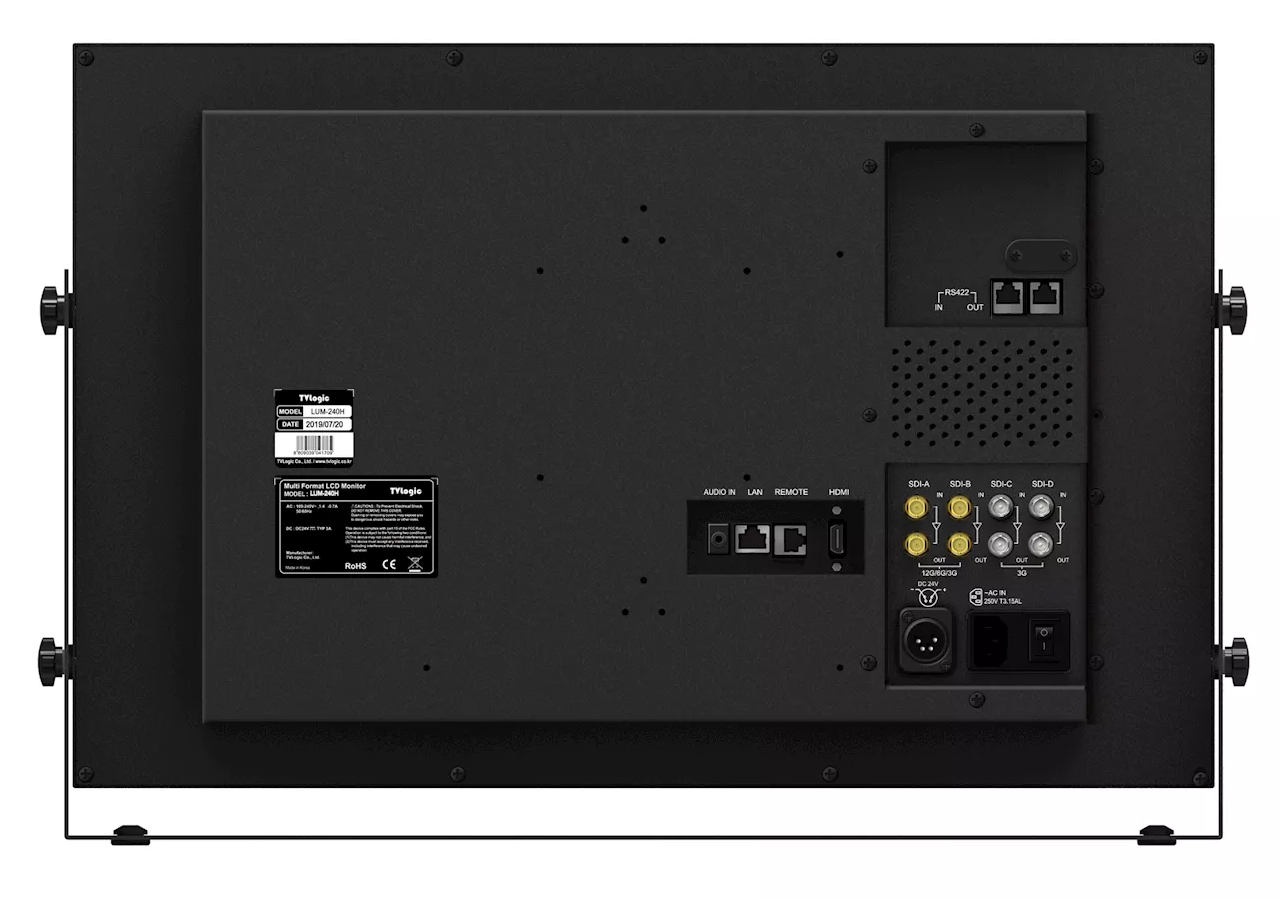

The LUM-242H is a 24 inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,000cd/㎡, a 10-bit color depth, high contrast ratio of 1,000 : 1 and wide viewing angle. The TVLogic LUM-242H supports various standard color gamuts including 90% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0 input.
24" DCI-UHD Monitor: 3840 x 2160 10bit IPS LCD, 1000:1 contrast ratio, 12-bit processing, 1000 cd/m2 90% of DCI-P3 Coverage 2x12G-SDI, 2x6G-SDI, 4x3G-SDI in/out. 1x HDMI 2.0 (4K 60p) input. Built-in 3D LUTs for Rec. 709, DCI-P3, Rec. 2020 emulation.
A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
Product Highlights
- 24” True UHD Resolution (3840×2160)
- Peak Luminance 1,000nits
- 1.07 Billion Colors (10bit)
- 90% Coverage of DCI-P3 Color Gamut
- HDR (PQ, HLG)
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
- Waveform / Vectorscope
- 16ch Audio Level Meter
- Focus Assist / Marker
- Timecode Display
- UMD Display
- Blue/Mono Only
- Various Aspect
- Luma(Y’) Zone Check
- Closed Caption (CC-608, CC-708)
- H/V Delay
- Tally
