TransVideo StarliteHD-m Metadator OLED Monitor-Recorder (metadata agregator)

TransVideo StarliteHD-m Metadator

Monitor only - PN 917TS0142 / EAN 3700592604552

Despite of its small form factor, the TransVideo StarliteHD-m is an advanced electronic toolbox. This remarkable monitor provides the necessary tools, whatever the job or the requirement:

For the focus puller (zoom, peaking, focus puller view)
For the script assistant (record/playback, metadata view, PDF report)
For the user of stabilized equipment (virtual horizon)

But the essential power of the StarliteHD-m resides in its ability to gather information from the different smart devices it is connected to:

Metadata transmitted through the SDI signal
Camera information through the Ethernet link
Lens metadata through Cooke /i or Zeiss eXtended serial link

Lens file and post production

Recent developments of lenses give access to critical information: shading, distortion map, inertial data or illumination tables that are available through a direct serial connection.  Basic information are often available though the camera mount and transfered to the HD-SDI output but the advanced data, necessary for the post production and special FX must be collected directly from the lens.

The StarliteHD-m is the missing link - It agregates data from lenses and cameras. Files are generated onto a SD card and are immediately available to be processed through the plugins developped by the lens manufacturer, providing a non-negligible gain of time. No need of complicated software to do that.

A set of cables is all you need to recover the lens data

HD-SDI BNC cable

Basic lens information provided by Cooke /i, LDS (Arri)
Camera information from RDD18 (Sony) or ARRI protocol.

Lens Reader™

Cooke /i3, /i², /i and Zeiss eXtended basic and advanced metadata.

Ethernet cable

More information gathered to the metadata file.

TC in (Mini Jack 2.5mm)

Gather’s precise Time Code (LTC type) from the camera

Related links of the manufacturer

Accessory Items

Free shipping
TransVideo StarliteHD+ 5” High-end Monitor-Recorder
TransVideo StarliteHD+ 917TS0177 monitor onlyARRI 917TS0178 monitor only917TS0177-p packageARRI 917TS0178-p package Transvideo StartliteHD+ built-in tools include a high-resolution waveform monitor, a precise vectorscope and a luminance histogram, while an embedded recorder delivers dailies in H.264 on to SD cards.  The StarliteHD+ monitor accepts 3G SDI Level A and Level B A new concept of human interface uses the power of the touch screen panel and rids the user of incomprehensible and endless tiered menus.The housing is extremely rugged, machined in aviation-grade aluminium – a wide range of accessories is available from battery support to detachable sun hood and more Tools PDF reportVirtualHorizonAutoREC controlReverse modeViewfinder modeAnamorphic Desqueeze 1.3x, 2x, ...H&V FlipZoom switchAnd much more Smart corners Waveform, Histogram, VerctorscopeFocus Puller viewPeakingMetadata view (camera dependent)Centered ZoomQuick access to last recordHistogram & Waveform can be pinned on the picture by a simple touch on the screen Records & Snapshots Record status on screenStart / Stop iconQuick access to playback galleryQuick access to snapshots galleryIntuitive navigationPossibility to convert file format H264 to MP4 by default Play function Play status displayedRewind / ForwardQuick access to records galleryPossibility to delete record In the box StarliteHD+ 917TS0177 includes monitor only, without accessory and deliverd in a box. StarliteHD+ standard package - 917TS0177-p includes: 1 x StarliteHD+ P/N 917TS01771 x Power cable mini-Lemo2 mini to RS3 - P/N 906TS01691 x HD BNC Cable - P/N 906TS0219 or 906TS02201 x Class10 SD cardMicrofiber pouch StarliteHD5+ ARRI - 917TS0178 - includes monitor only, without accessory and delivered in a box. StarliteHD5+ ARRI package - 917TS0178-p includes: 1 x StarliteHD5+ ARRI - P/N 917TS01781 x Cable Lemo5 to Lemo6 with wiring for the EXT connector of the AMIRA/MINI*1 x BNC cable - P/N 906TS0219 or 906TS02201 x 3D swing Arm (short version : P/N918TS0261)1 x Class 10 SD cardMicrofiber pouch

gross: €1,368.50
Free shipping

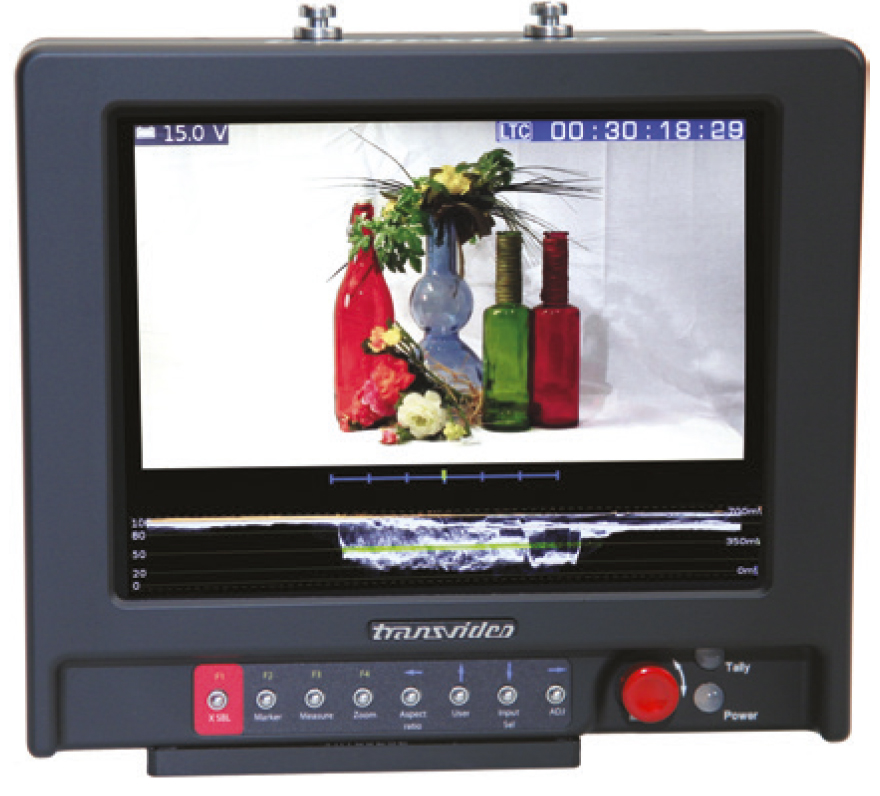

TransVideo CineMonitorHD8 X-SBL Evolution
TransVideo CineMonitorHD8 X-SBL Evolution SKU: 917TS0152 The CineMonitorHD8 X-SBL Evolution is a 8 inch SuperBright on-board monitor with a complete tools package. It is rugged and fully sealed (no holes, no noisy fans), with precision machined aluminium housing and high quality connectors. The wide viewing angle display offers up to 2500Nits and is protected by a military grade optically bonded anti-reflection glass. It includes the acceleration compensated VirtualHorizon2 and a Bluetooth function to connect to the optionnal wireless VirtualHorizon3 module. The 4:3 screen is partitioned in 2 areas: the picture zone displays the picture in 16/9 format whereas tools and measurements are displayed in the remaining free area of the screen. CineMonitorHD Evolution can be set in 2 operating modes either for outdoor viewing or color monitoring. In Full Bright mode, details in both the dark areas and highlights are maintained even in full sun without hood. Featuring Transvideo's proprietary technology with RealFrameRate processing (RFR™), the CineMonitorHD Evolution provides true monitoring of existing in-camera images with 1 -frame delay or less. Transvideo's processing technology displays crystal clear images without aliasing or motion-blurs. In the box CineMonitorHD Evolution, with 2 shoulder strap pins and 1 bottom slideScreen protective coverMicrofiber cloth and bag4.5GHz HDTV BNC Cable (1m)mini HDMI cableUSB adapter for SW updatesPrinted documentationIn a hard case case with custom shaped foam

gross: €5,593.00
Free shipping
TransVideo StarliteHD-m full package (ARRI, RED, VENICE, VARICAM, BMC)
StarliteHD-m Metadator: Monitor only - PN 917TS0142 / EAN 3700592604552
TransVideo StarliteHD-m full package SKU: 917TS0185 TransVideo StarliteHD-m full package includes StarliteHD-m monitor and all the necessary cables for the most popular cameras5" OLED video-assist monitor recorder with lenses and cameras data agregator. Advanced metadata agregator for ARRI Alexa Mini / SXT / LF, Panasonic Varicam, Red DSMC2, Sony Venice. Lens files are generated onto a SD card and are immediately available. All delivered in a hard case. StarliteHD-m Full Package includes: 1 x StarliteHD-m P/N 917TS0142 (incl. removable front part with magnetic attachment)1 x Mini-Lemo2 mini to RS3 power cable for ARRI & SONY - P/N 906TS01691 x Mini-Lemo2 mini to DTap power cable for RED - P/N 906TS01701 x Power cable Lemo2 mini to Hirose4 for Varicam - P/N 906TS01921 x 1m Thin BNC cable - P/N 906TS02201 x Lemo4 to Lemo4 cable for Lens - P/N 906TS02141 x RJ45 - Ethernet cable - P/N 906TS02251 x Ethernet to RS232 converter for RED DSMC2 camera - P/N 906TS02261 x Class10 SD card1 x Microfiber pouch P/N 918TS0270

gross: €2,618.00
