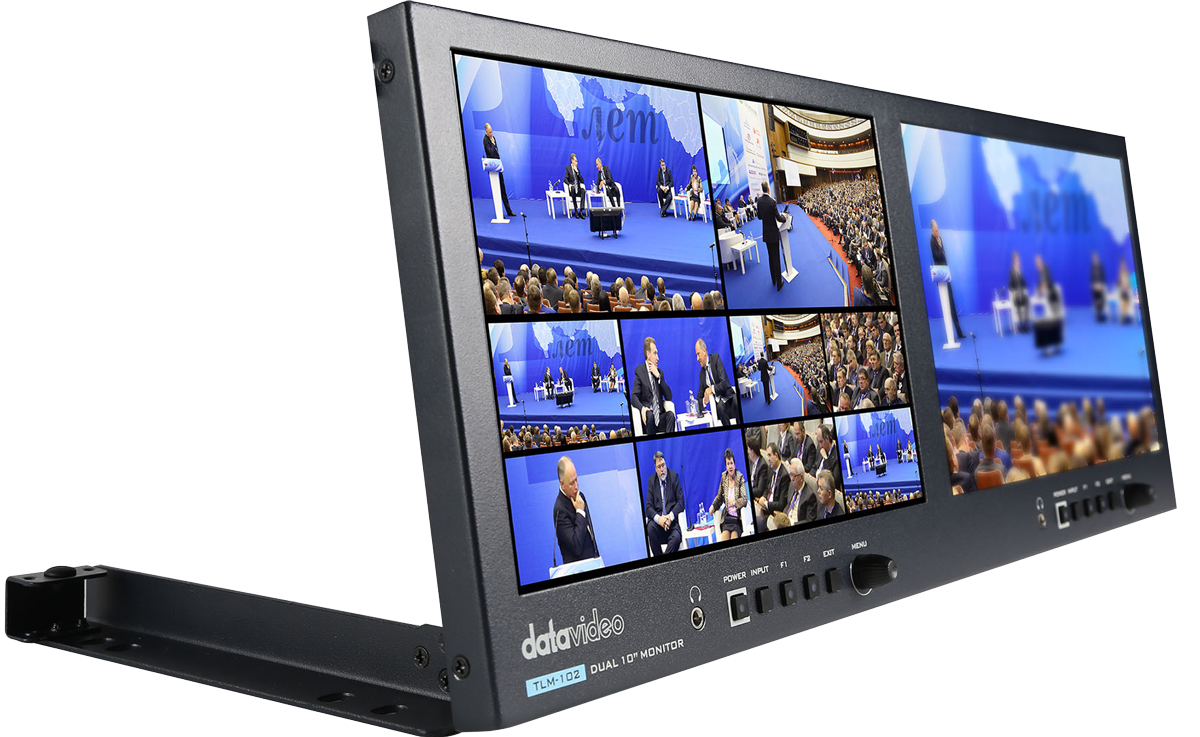

Datavideo TLM-102 Dual 10" MonitorThe Datavideo TLM-102 Dual 10” monitor is a 4RU Rack mount dual monitor which is designed for the broadcast quality monitoring application. Datavideo TLM-102’s 4RU rack design, SDI and HDMI inputs and outputs and different mounting methods make it the best solution for various applications such as live vans, on-site monitoring and video wall.The Datavideo TLM-102 Dual 10” monitor brings high quality and user friendly viewing experience for users via its excellent display quality and advanced auxiliary functions. Please see following chapters for more details about the TLM-102 Dual 10” monitor.TLM-102 provides a 90-degree angle adjustment design, so you can install it on a rack or place it on a desk. The thoughtful angle design allows you to freely adjust the most appropriate viewing angle when monitoring, making work very easy and convenient.Technical dataScreen: Dual 10.1" LCDChassis: 4RU Rack MountResolution: 1280x800Viewing Angle(H) +85/-85°(V) +85/-85°Luminance/Contrast300cd/m²800:1Video Inputs2x 3G/HD/SD-SDI2x HDMILoop Through2x 3G/HD/SD-SDI2x HDMIAspect Ratio: 16:9, 4:3Aspect Marker: YESSafty Marker: YESTally LEDLive (Red)Cued (Green)Audio In/OutEmbedded Audio on SDI and HDMI Headphone JackSpecial Features: time code, waveform, vector scope & audio level meter , peaking, zoom, pix to pix, underscan, SDI, HDMI cross conversionDimension (WxHxD): 482 x 178 x 38 mmWeight: 3.6 kgOperating Temp. Range: 0~40 °CPower: DC 12V, 28WSupported Input Resolutions1080p(23.98/24/25/29.97/30/50/59.94/60Hz)1080i(50/59.94/60Hz)720p(23.98/24/25/29.97/30/50/59.94/60Hz)480i(NTSC), 576i(PAL)In the Box1 x TLM-102 product1 x AD Switch DC 12V with AC Cord1 x Tally Convertor2 x Screw φ3.0*6m/m4 x Screw M5 x 10mm

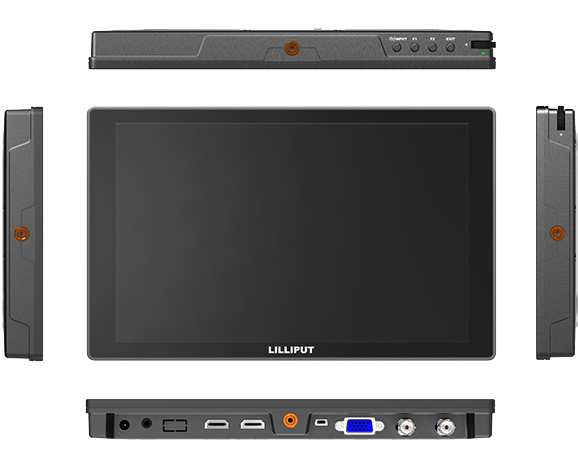

Lilliput A11 The 10.1" A11 4K HDMI & 3G-SDI Monitor from Lilliput is a field monitor designed for on-camera use with video, DSLR, and mirrorless cameras. This Full HD panel monitor features both 4K HDMI input/output, 3G/HD/SD-SDI input and output, a VGA input, 1000:1 contrast, and 320 cd/m² brightness. FeaturesDisplay: 10.1inch1920x1200,320cd/m2,1000:1Interfaces: 3G-SDI, HDMI, VGAFunction: Level Meter/Histogram, Exposure, Peaking Filter, Aspect Marker, False Color Filter, Zoom, etc Contents12V DC AdapterSunshadeHDMI A/C cableShoe mountNP-F series plateVESA mount plateManual
Lilliput Q10The Lilliput Q10 is a professional camera-top monitor specifically designed for photography and film makers. Fitted with an amazing 1500 nit Ultra Bright LCD screen, it is especially geared for outdoor video and film shooting.The 10.1" LCD panel has 1920×1200 Full HD native resolution and with 200:1 high-contrast it provides crystal-sharp superior picture quality. Supporting 4K HDMI 2.0 and 12G-SDI signal inputs and loop outputs, it is possible to receive 2× 12G-SDI signals and display both at the same time via the picture-in-picture function, (the size and position of which can be adjusted) and HDMI signals up to 4K 60Hz through an HDMI 2.0 interface - making it compatible with the very latest DSLR cameras on the market. Features10.1" inch panel with 1920*1200 resolution1500cd/m²brightness, 1000:1 contrast, 170°/170°viewing angleInput Ports: 2x12G-SDI, 1xHDMI 2.0, TallyOutput Ports: 2x12G-SDI loop, 1xHDMI 2.0Audio: Built-in speaker, Earphone jack12G-SDI Multiview modeHDMI 2.0 supporting up to 4K 60HzFunctions: Multiview, 3D-LUT, HDR, Delicate Milled, camera auxiliary functions etcVESA 75mm Battery plate Technical dataDisplayAspect Ratio; 16:10Brightness: 1500 nitsContrast Ratio: 1000:1Display Screen: 10.1"Look Up Table Support: 3D LUT .cube FormatResolution: 1920 x 1200Viewing Angle: 170° / 170°HDR: ST2084 300 / 1000 / 10000 / HLGSupported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User definedConnectionsAudio: SDI - 16CH, 48Khz, 24-bit : HDMI - 8 CH 24 Bit : Ear Jack - 3.5mm : Built in Speaker x1HDMI Video Input: 1x HDMI 2.0 - 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50SDI Video Input; 2x 12G SDI - 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,1080i 60/50, 720p 60/50SizeDimensions: 251mm × 170mm × 30.5mmWeight: 4KG (Shipping Weight)PowerInput Voltage: DC 7-24VPower Consumption: <=37W (12V)EnvironmentOperating Temperature: 0°c to 50°cStorage Temperature: -20°c to 60°c

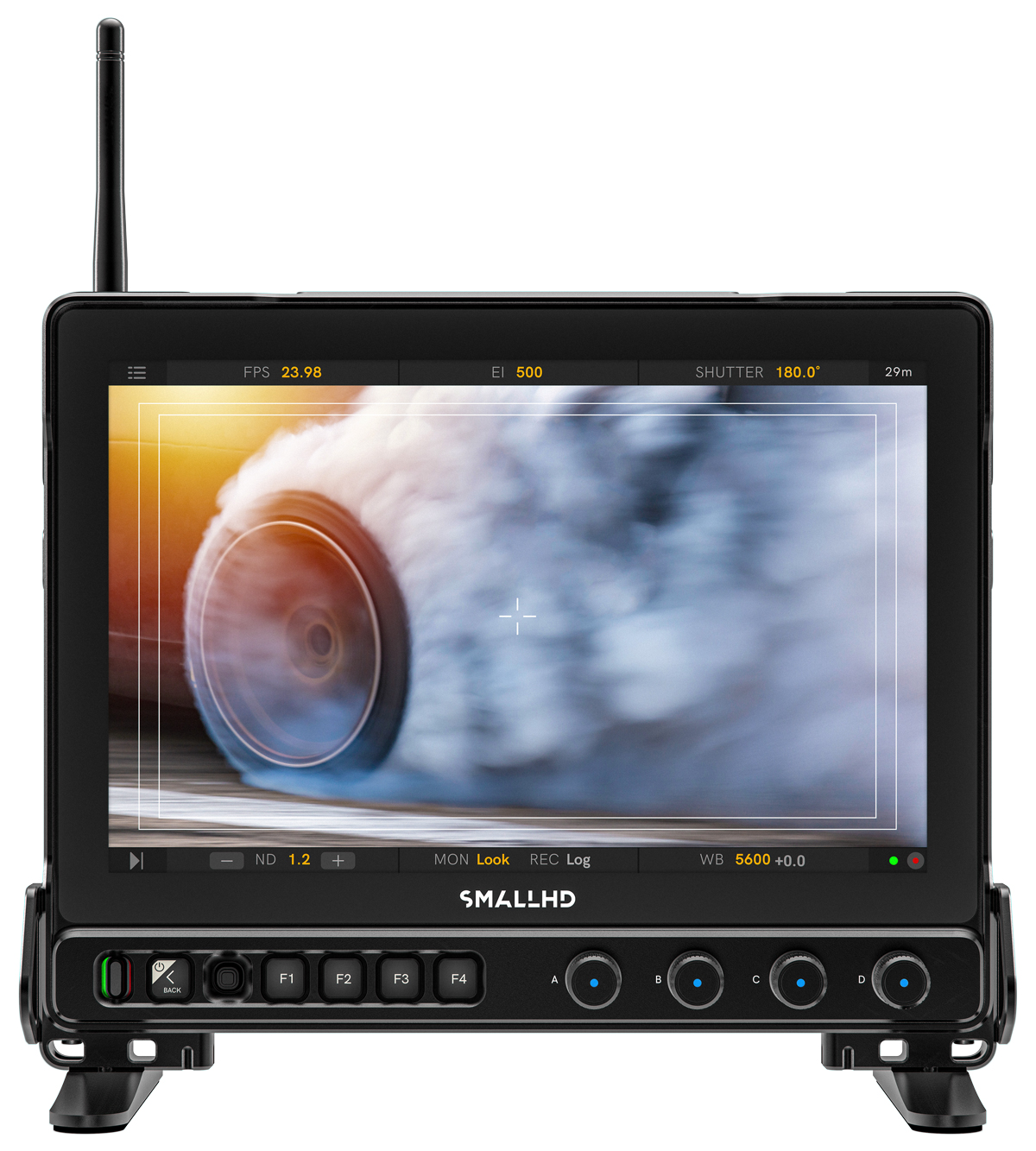

smallHD Ultra 10 smallHD Ultra 10 hits the sweet spot in power, performance and size between production monitors and our Ultra Bright Series with the largest touchscreen monitor we’ve ever made. Portable, powerful, and rugged, Ultra 10 packs 2000nits of brightness, 6G-SDI architecture, intuitive multi-function rotary encoder knobs, and the full power of PageOS into a 10-inch display. Perfect for focus pullers, pursuit vehicles, Directors, DITs, multi-camera studios, and anyone who desires maximum flexibility from their monitor. With a rating of IP54, the Ultra 10 is protected from dust and water spray from any direction.This monitor includes raised edges around the display glass and shock-absorbing, user-replaceable silicone bumpers. Four customizable encoder knobs let you change PageOS tools and settings on the fly with capacitive-touch, long-push, short-push, and rotary functionality.Ultra 10 includes ports for Ethernet, GPI, 2-pin power input and 5-pin USB port as well as ¼”-20 mounting points along the top and sides of the monitor for mounting accessories. Features2000nits max brightnessDust and water resistant with an IP54 rating6G-SDI for modern 4K end-to-end workflowsCamera Control compatible with all current SmallHD licensesFunction knobs, buttons and a joystick for tactile controlInput Signal3G-SDI Input TypesYCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i1026G-SDI Input TypesYCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95HD-SDI Input TypesYCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100SD-SDI Input TypesYCC 4:2:2 @ 10-bits: 480i59.94, 576i52HDMI Input TypesYCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52Output Signal3G-SDI Output TypesYCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102HD-SDI Output TypesYCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100SD-SDI Output TypesYCC 4:2:2 @ 10-bits: 480i59.94, 576i52 HDMI Output TypesYCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51Audio Output TypesHDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
TVLogic F-10H10” FHD High Brightness Field MonitorWith 1400 nits of brightness, the F-10H is the latest 10” monitor in the rugged and reliable F-series.This 10” Full HD display offers advanced features such as Sharpness and Peaking Boost, enhancing visibility and precision when evaluating light and colorProduct Highlights10”, Full HD Resolution (1920 x 1200)4K CompatibleMax Luminance 1400nitsDCI-P3 Coverage 95%Tempered Glass TreatmentHDR (PQ / HLG / Slog3)Camera LUTs (Log-C, C-Log, S-Log1/2/3, Red Gamma3/4)Custom 3D-LUT ImportSharpness + Peaking BoostARRI Metadata DisplayScan / Anamorphic Desqueeze / Zoom / Split Zoom3 x 3G SDI (1 x 3G SDI Selectable I/O)HDMI 2.0 SDI Cross ConversionLuma(Y’) Zone Check (Zebra / Color)H/V Flip, Auto FlipHorizontal MeterWaveform / VectorscopeDC 12V ~ 34V Technical dataSize: 10,1”Resolution: 1920 x 1200 (16:10)Pixel Pitch: 0,1128(H) x 0,1128(V) mmColor Depth: 16.7M Colors (8 bit)Viewing Angle: 170°(H) / 170°(V)Brightness: 1400cd/m2Contrast Ratio: 1100 : 1Display Area: 216.58(H) x 135.36(V) mm
