MID49 Mid Kit for FUJIFILM GFX ETERNA

€1,080.00*

gross: €1,285.20

Prices excl. VAT plus shipping costs

Product number: SW29143

Manufacturer: MID49

EAN: 737879864012

Manufacturer product number: M49-KTM-FUJE

Delivery time: 14-21 days

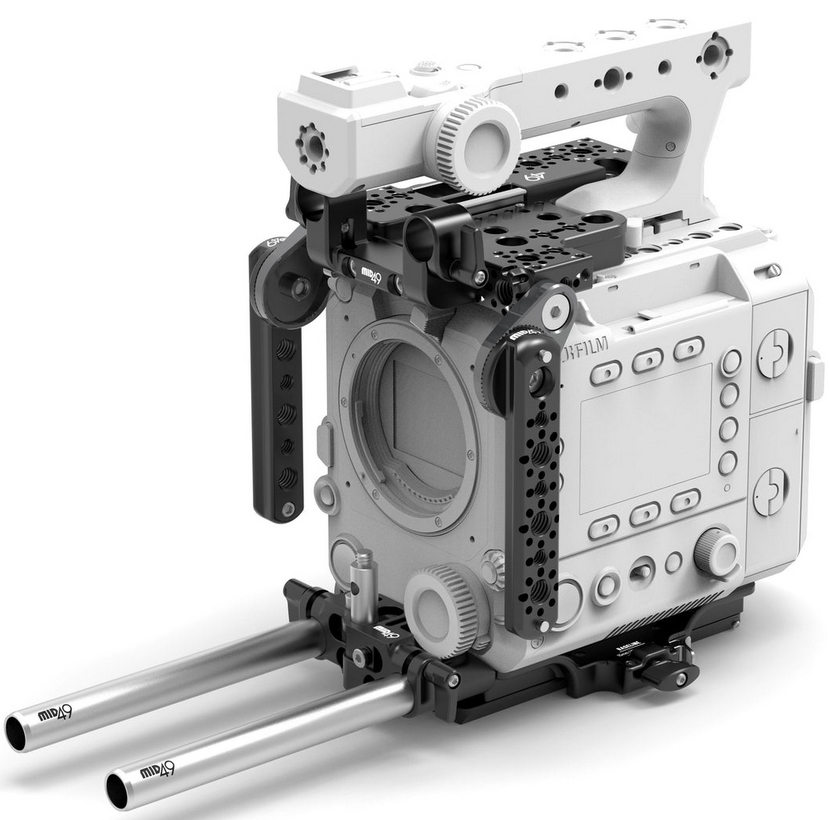

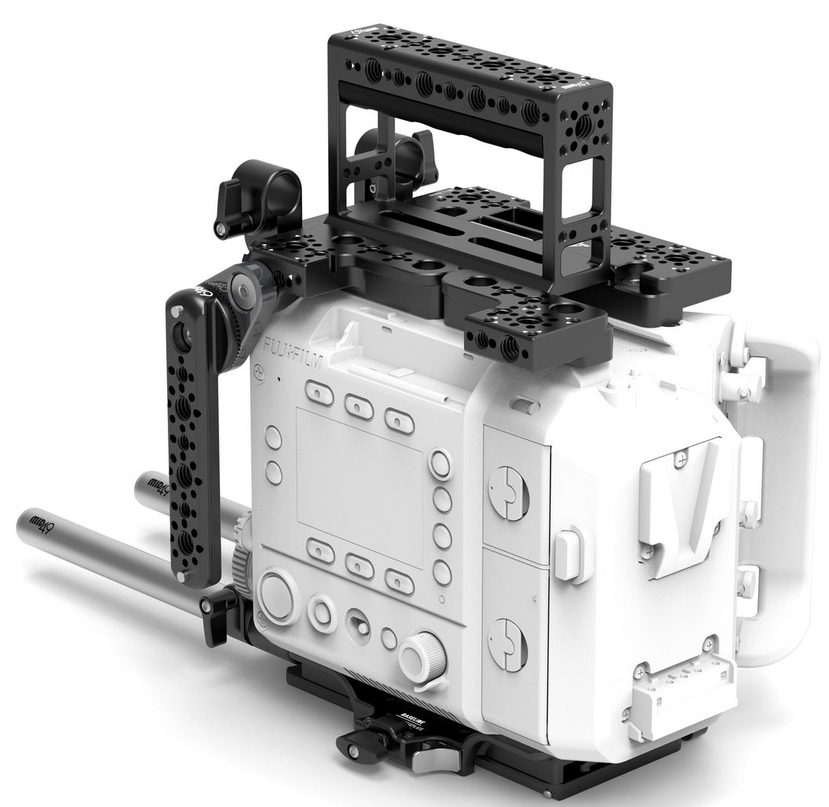

MID49 Mid Kit for FUJIFILM GFX ETERNA

SKU: M49-KTM-FUJE

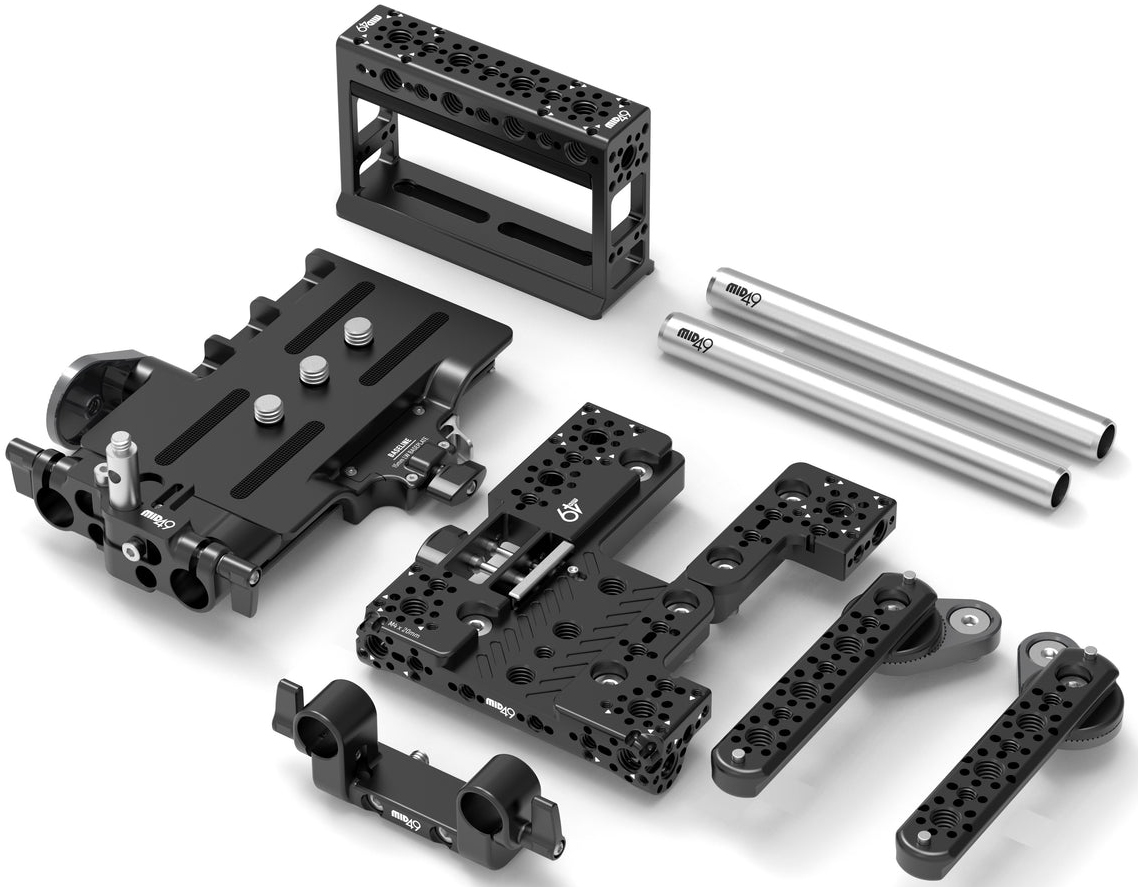

Mid Kit for FUJIFILM GFX ETERNA includes

Top Plate (FUJIFILM GFX ETERNA)

Attaches to the top of the camera and provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, and M4x20mm ARRI standard threaded holes. Segmented design allows the original ETERNA handle to be installed in the camera's dovetail slot over the Top Plate. When the ETERNA top handle is removed, the smaller section of Top Plate can be added.

Baseline 15mm LW (FUJIFILM GFX ETERNA)

A baseplate that holds 15mm lightweight rods at the correct distance from the center of the lens and attaches to the bottom of the camera by three 3/8-16 screws. The center of the LW 15mm Bracket has a 1/4-20 vertical support post, which can be used to support lens adapters like Metabones, etc.

2x Cage NATO Side Arm (ARRI 3/8-16)

Attaches to the sides of the Top Plate and provides an ARRI Rosette adjustable NATO accessory rail with safety pins on each end.

Top 15mm Rod Bracket

Attaches to the front of the Top Plate and holds two 15mm LW rods for adding focus motors, viewfinder mounts, and other accessories over the lens area.

2x 15mm Rod (6")

Stainless steel iris rods.

Rainbow Handle (Black)

Rainbow Handle has an ARCA Swiss dovetail shape that interfaces with the Top Plate. If additional support is needed for heavy camera builds, or if you want to skip the ARCA clamp, two 3/8-16 screws are included for attaching the Rainbow Handle directly to cheeseplates with 3/8-16 screws spaced up to 76mm apart, center to center. Other colors are available, email info@mid49.com if you prefer a different colored grip.

Details of the manufacturer

MID49
1205 Castle Street, Suite 100
Dallas, Texas 75208, United States

(214) 444-9262

Info@mid49.com

Details of the person responsible for putting the product on the European market

NEFAL service & consulting e. K.
Am Heerdter Hof 24
40549 Düsseldorf, Germany

+49 (0) 211 930 730-33

info@nefal.tv

Warnings and safety information

Power Distribution SAFETY

Mechanical SAFETY

Breakout Box SAFETY

MID49 DB-9 V-Mount OPERATING INTRUCTIONS

MID49 - TUTORIALS
