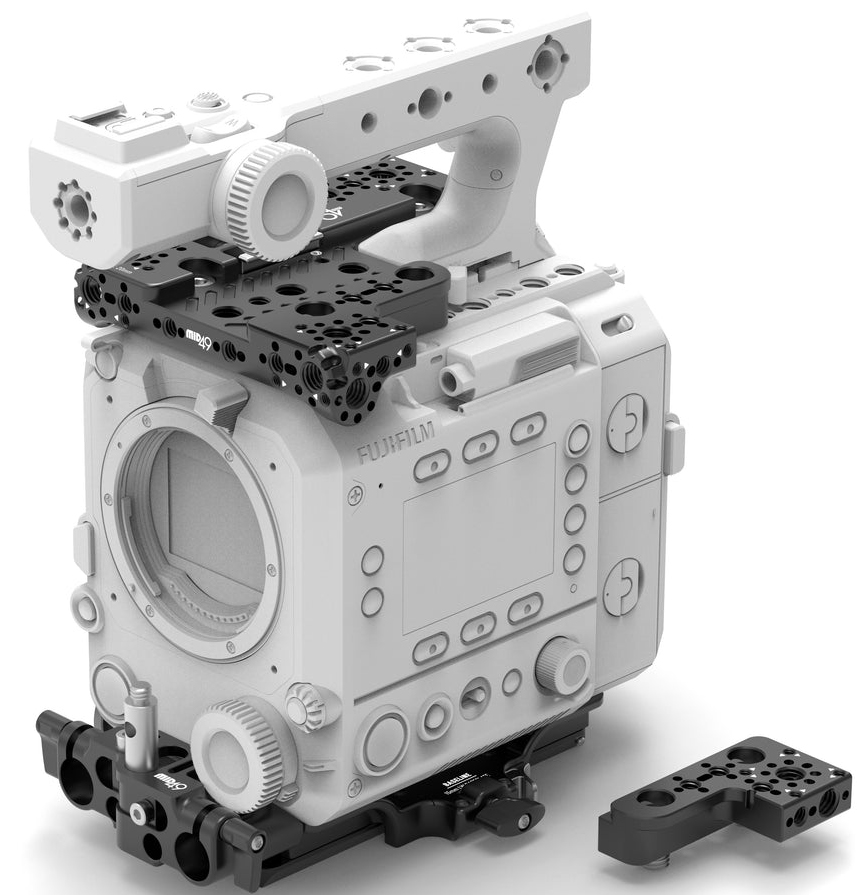

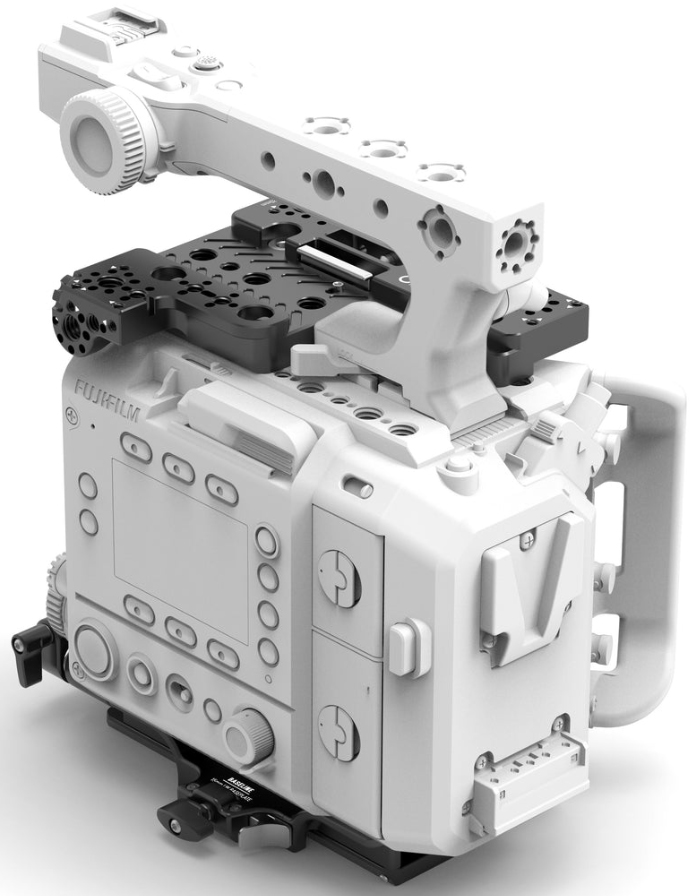

MID49 Base Kit for FUJIFILM GFX ETERNA

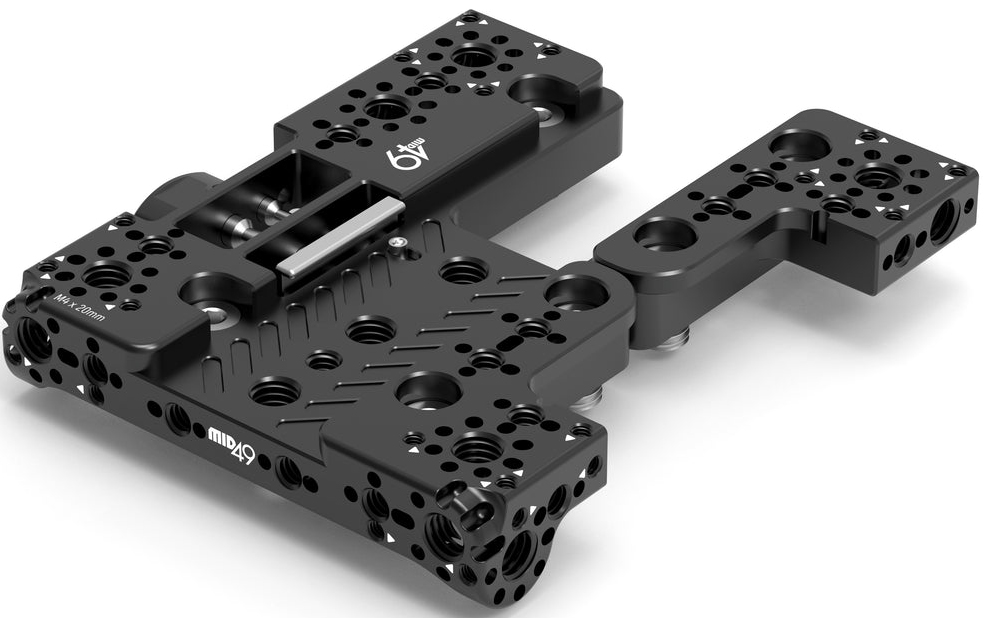

MID49 Top Plate (FUJIFILM GFX ETERNA)SKU: M49-CAG-FUJE-TOPTop Plate (FUJIFILM GFX ETERNA) attaches to the top of the camera and provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, and M4x20mm ARRI standard threaded holes.Segmented design allows the original ETERNA handle to be installed in the camera's dovetail slot over the Top Plate. When the top handle is removed, the smaller section of Top Plate can be added.Center ARCA dovetail clamp allows for attachment of the Rainbow Top Handle, ARCA Top Handle, ARCA Top Plate, and Gimbal Adapter Plates (Freefly Mōvi Pro and DJI Ronin 2) for quick change between handheld and studio modes.Side 3/8-16 ARRI accessory mounts can accept Cage NATO Side Arm (ARRI 3/8-16) for cage building.Product Weight: 438g

MID49 Baseline 15mm LW (FUJIFILM GFX ETERNA)SKU: M49-BSL-FUJE-LWBaseline 15mm LW (FUJIFILM GFX ETERNA) is a baseplate that holds 15mm lightweight rods at the correct distance from the center of the lens and attaches to the bottom of the camera by three 3/8-16 screws. The center of the LW 15mm Bracket has a 1/4-20 vertical support post, which can be used to support lens adapters like Metabones, etc.ARRI dovetail slot on the bottom attaches to the included Baseline ARRI Dovetail or other ARRI standard dovetails using a top-load locking mechanism. Loosen the thumbscrew and push the silver button on the operator's side to release the baseplate from the ARRI dovetail. To reattach, drop down and listen for the pop to know it has engaged. Adjust the position on the ARRI dovetail, then lock the ratcheting thumbscrew.Baseline ARRI Dovetail is the included lower ARRI mounting plate, which can attach to tripod plates using 1/4-20 or 3/8-16 screws or ARRI standard bridgeplates with centered or offset screw spacing. ==ARRI M6 rosette on the right side allows the attachment of a camera side handle or optional ARRI Rosette to NATO Rail for additional accessory mounting options.This Baseline Baseplate does not have an upper ARCA slot but has ARCA geometry hidden on the bottom, which will accept the Gimbal Bottom ARCA Adapter (DJI S, RS2, RS3, RS4), Gimbal Bottom ARCA Adapter (DJI Ronin 2), and Gimbal Bottom ARCA Adapter (Freefly Mōvi Pro). These adapters enable quick and tool-free transition from tripod to gimbal modes.Individual components of this kit are also availableBaseline Core 15mm LW (FUJIFILM GFX ETERNA)LW 15mm Rod Bracket (FUJIFILM GFX ETERNA)Baseline ARRI DovetailProduct Weight: 438g

MID49 Baseline Core (FUJIFILM GFX ETERNA)SKU: M49-BSL-LWB-FUJEBaseline Core (FUJIFILM GFX ETERNA) is the baseplate riser that attaches to the bottom of the camera by three 3/8-16 screws. An optional 15mm Bracket can be purchased separately or as a complete baseplate kit. ARRI dovetail slot on the bottom attaches to ARRI standard dovetails using a top-load locking mechanism. Loosen the thumbscrew and push the silver button on the operator's side to release the baseplate from the ARRI dovetail. To reattach, drop down and listen for the pop to know it has engaged. Adjust the position on the ARRI dovetail, then lock the ratcheting thumbscrew.To attach the Core to a tripod or bridgeplate, the Baseline ARRI Dovetail is required, which is an ARRI mounting plate with 1/4-20 and 3/8-16 threaded holes. The dovetail can be purchased separately or as a complete baseplate kit. ARRI M6 rosette on the right side allows the attachment of a camera side handle or optional ARRI Rosette to NATO Rail for additional accessory mounting options. This Baseline Baseplate does not have an upper ARCA slot but has ARCA geometry hidden on the bottom, which will accept the Gimbal Bottom ARCA Adapter (DJI S, RS2, RS3, RS4), Gimbal Bottom ARCA Adapter (DJI Ronin 2), and Gimbal Bottom ARCA Adapter (Freefly Mōvi Pro). These adapters enable quick and tool-free transition from tripod to gimbal modes.

MID49 Base Kit for FUJIFILM GFX100 II SKU: M49-KTB-FUJ-G100II Base Kit for FUJIFILM GFX100 II is an accessory kit that includes:Upper Cage for FUJIFILM GFX100 IIBaseline 15mm LW (Core) Baseline ARRI DovetailARCA Top Handle Weight: 830gDimensions (WxLxH): 132 x 183 x 261mm
