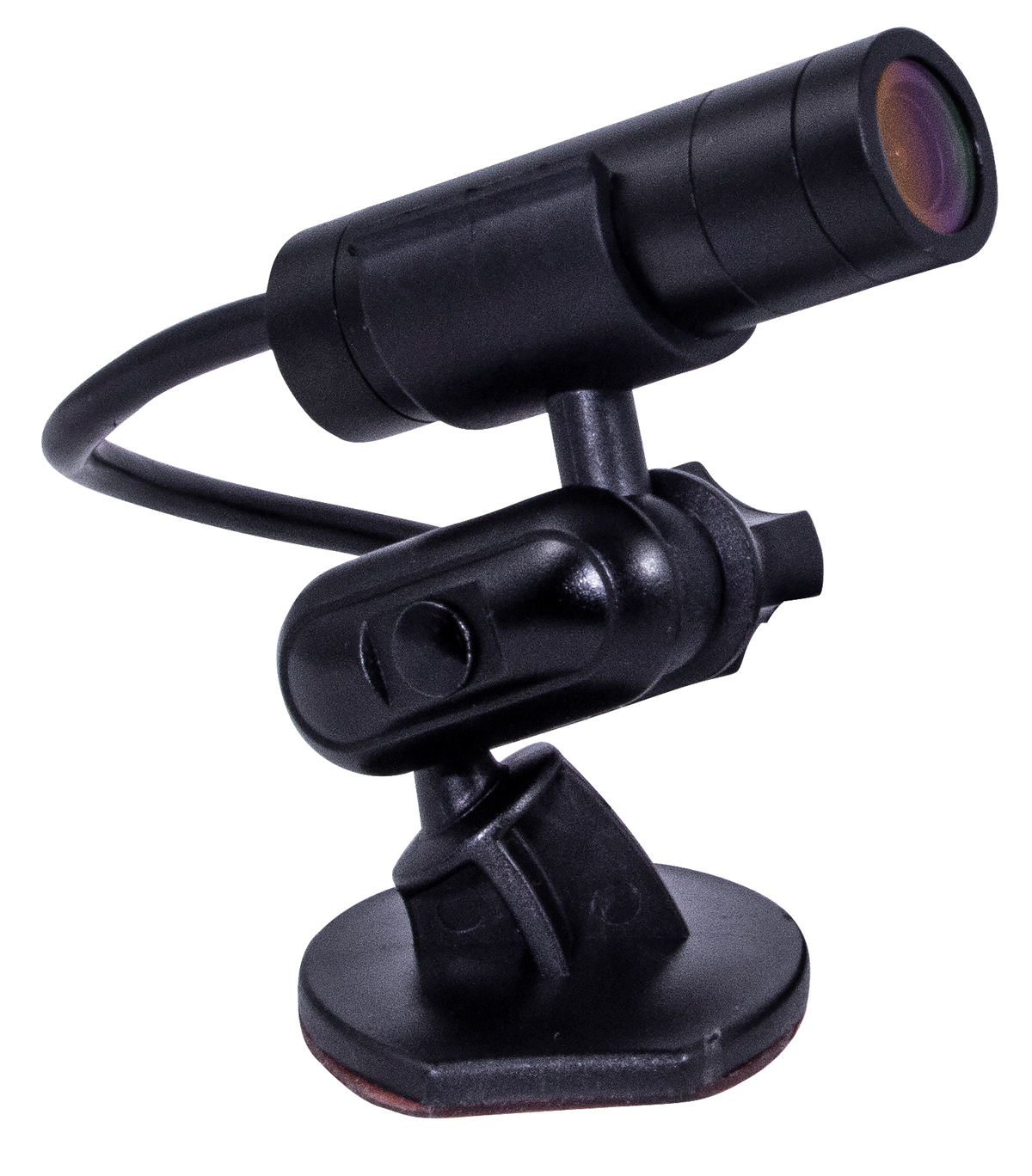

Marshall CV228 All-Weather HD Lipstick Camera

Marshall CV228

The Marshall CV228 weatherproof Lipstick Camera captures crisp, color accurate HD video from a next generation Sony sensor, wide 4.0mm (85°) lens and efficient precision processors. The feature rich CV228 is built into a durable all-weather cylinder-shaped body only 19.5mm in diameter and 3-meter breakout cable including 3GSDI, remote RS485 and 12V power. CV228 is built for rugged outdoor or dirty environments where dust, dirt, water, mud, and snow become a factor.


  • Full-sized 3G/HDSDI (BNC) video output
  • 2.5 Megapixel (1/2.8") sensor (4:2:2 color)
  • Interchangeable 4.0mm lens with 85° Horizontal AOV

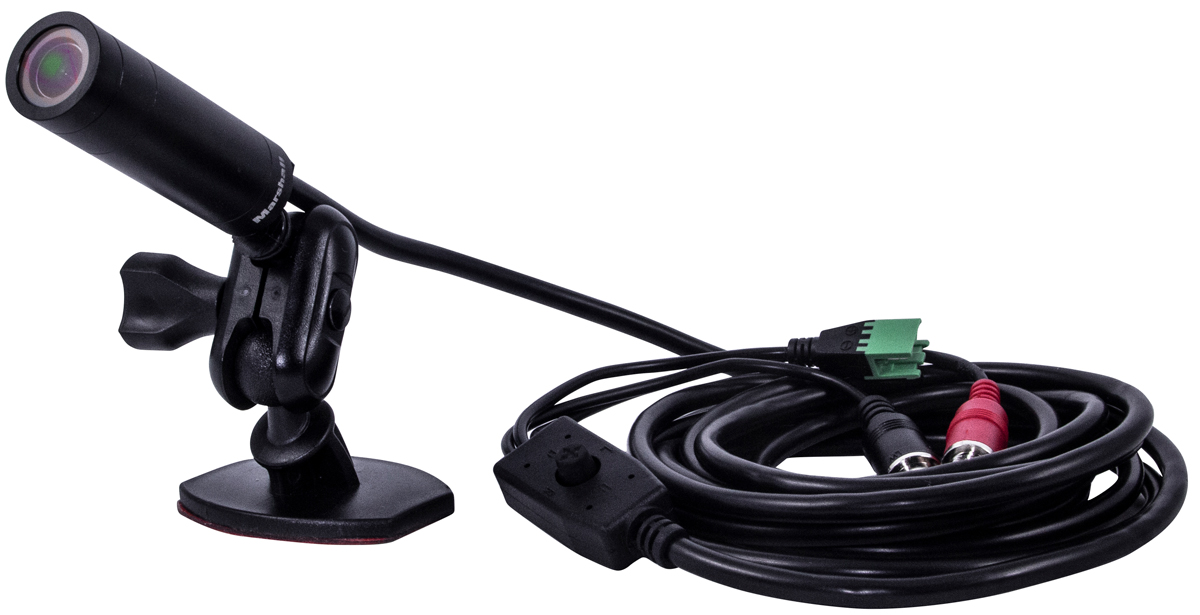

  • 10-foot (3 meter) breakout cable with BNC (3GSDI), RS485, and locking 12V power
  • Interchangeable M12 lens with IP67 cap includes stock 4mm lens (85°H. AOV)
  • IP67-rated weatherproof housing; submerge in water up to 10-feet for several hours
  • Full-HD resolutions: 1920x1080p, 1920x1080i and 1280x720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25 fps
  • Remote adjustable through RS485 (Visca) or OSD menu joystick
  • CV-RCP-V2 Touchscreen RCP compatible and free Camera Control Software option
  • Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more

Technical data

  • Imaging Sensor: 2.2 Megapixel 1/2.8" sensor (4:2:2 color)
  • Total Pixels: 1981 (H) x 1288 (V) / 2,551,528 (Pixels)
  • Active Pixels: 1944 (H) x 1212 (V) / 2,356,128 (Pixels)
  • Pixel Size: 2.75 (H) μm x 2.75 (V) μm =Scanning System: 16:9 Progressive Scan =Video Output: 3G/HD-SDI
  • Resolutions-Framerates: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50/30/29.97/25
  • Horizontal: TV More than 1000 TVL
  • Lens Mount: 3.6mm F2.0 M12 Mount - interchangeable w/o cap
  • Electric Shutter: Manual (1/30 or 1/25~1/30,000 sec)
  • Auto White Balance: AUTO/AUTO EXT/ PRESET / Manual (Red-Gain, Blue-Gain)
  • Mirror Image: Mirror, Horizontal or Vertical Flip
  • Operating / Storage Temp: -10°C~50°C
  • Operating Humidity: IP67 rated; ability to submerge in water up to 45 minutes at a tim
  • Power Supply: 12V DC 1.0A
  • Power: 12v power supply, can operate 12V+/-10% with a 6 watt draw
  • Dimensions: 19.5 (W) x 19.5 (H) x 62.5 (D)mm
  • Weight Approx.: 195with cable
