Marshall CS-3816-8MP 3.8-16mm Varifocal CS-Mount Lens

Marshall CS-3816-8MP

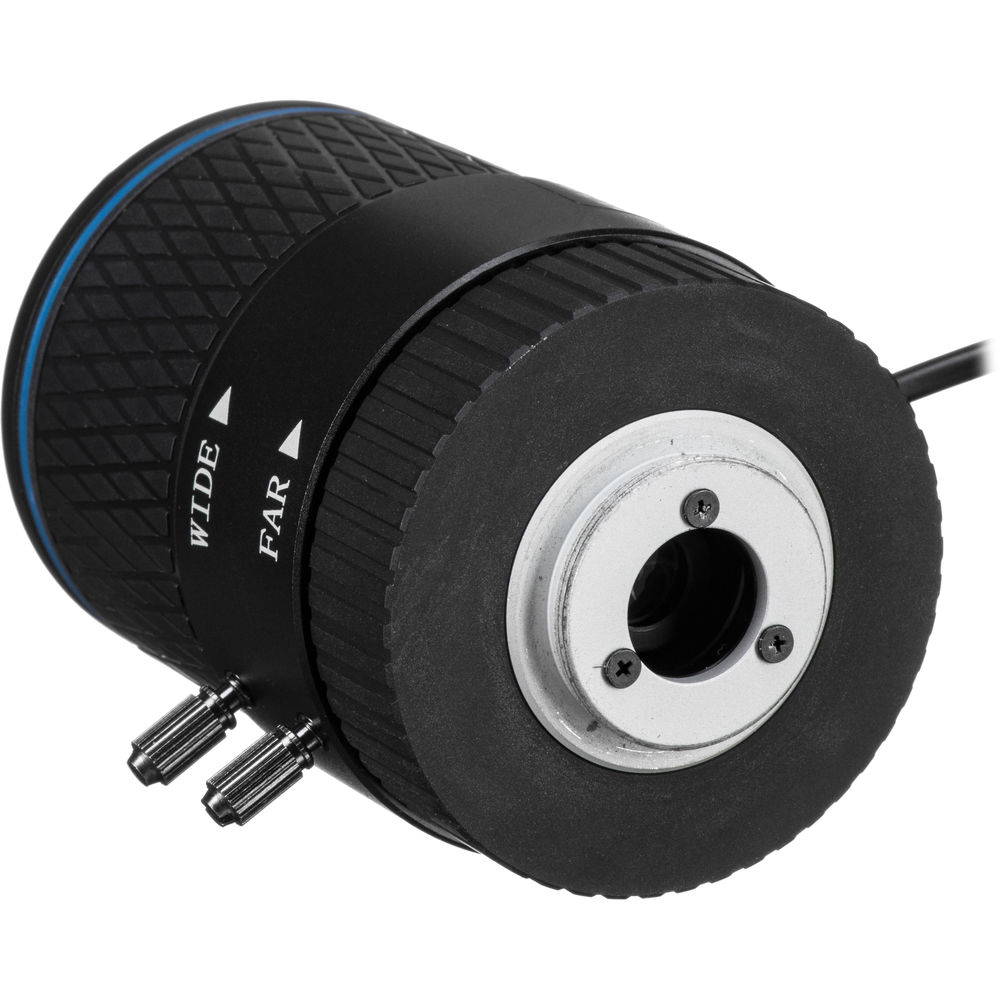

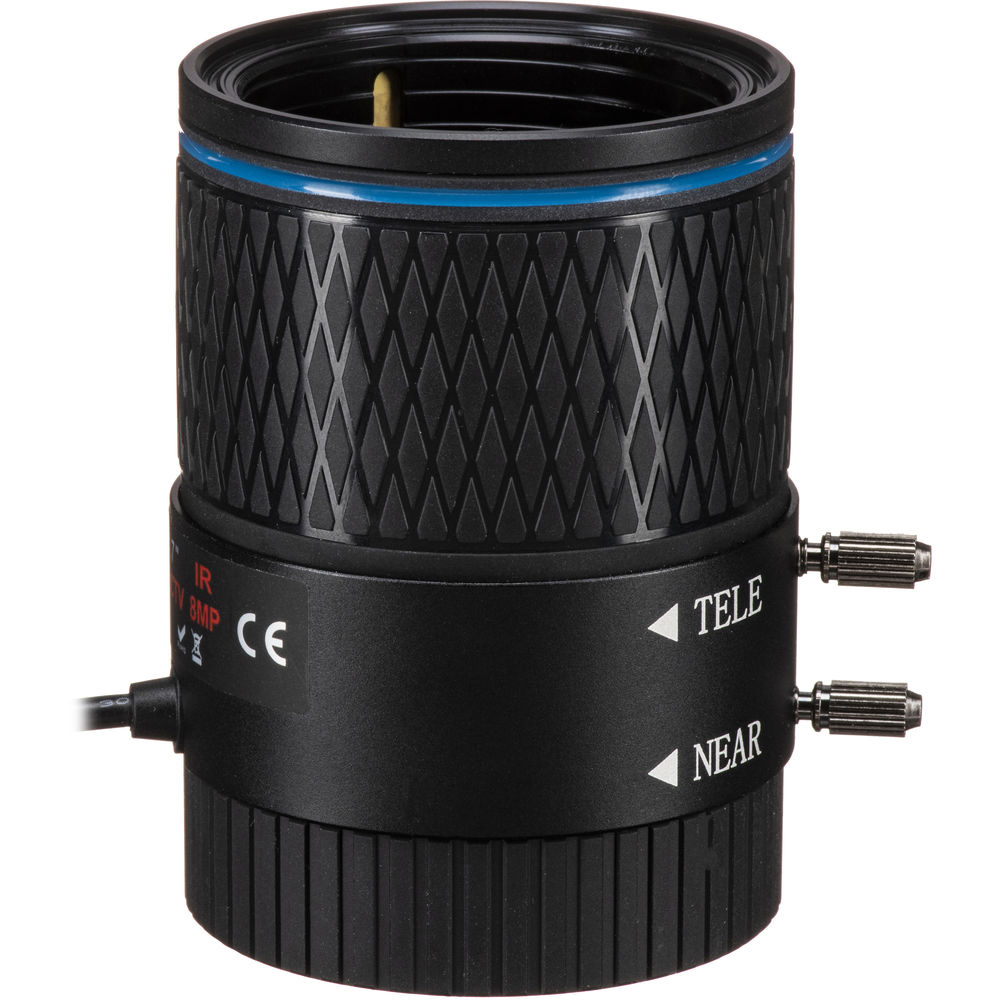

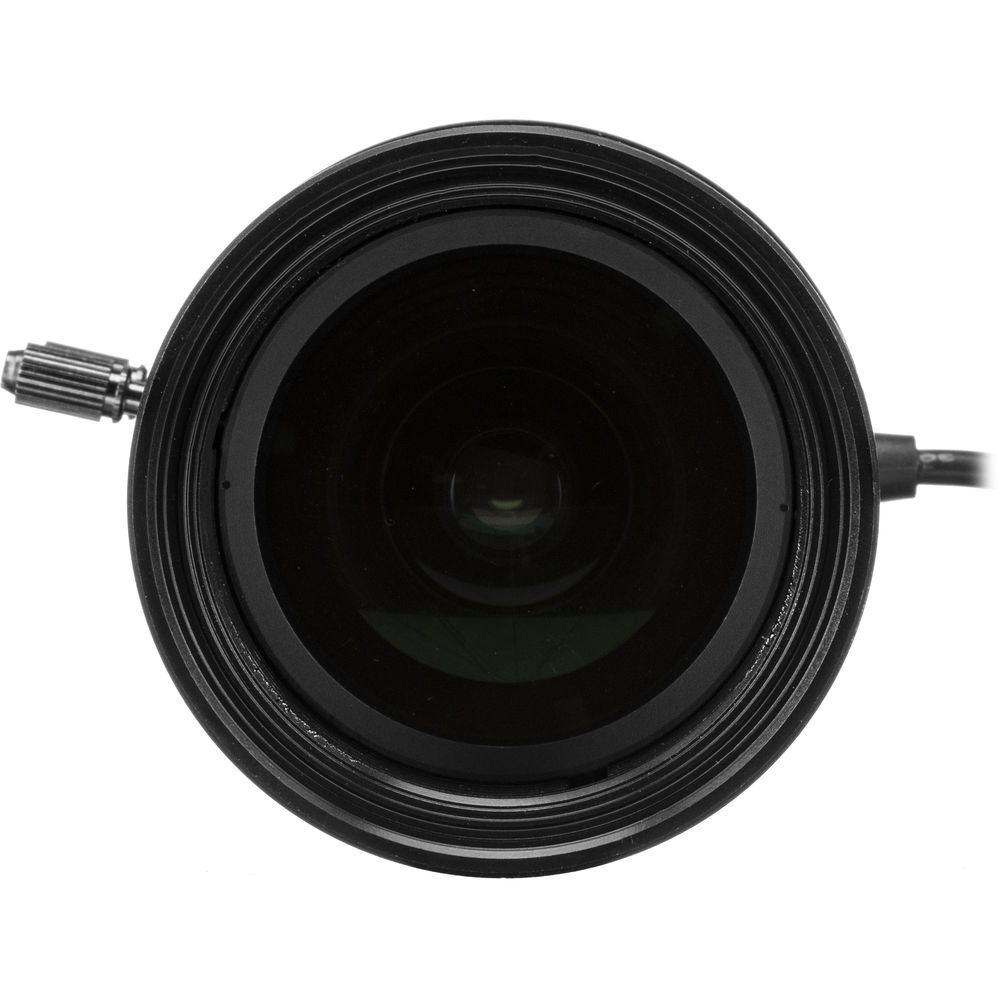

Marshall CS-3816-8MP 8MP 3.8-16mm 4K Varifocal CS Lens with DC Auto iris is a CS-Mount 3.8-16mm Varifocal Lens with Long Cable designed for 8MP cameras with 1/1.7" sensor. The Marshall CS-3816-8MP lens is IR corrected and features a 3.8-16mm focal length with a 148 to 35.8° diagonal field of view. It has a DC auto iris and manual focus and zoom operation with lock screws.

Technical data:

  • Lens Mount: CS
  • Sensor Compatibility: 1/1.7", 1/1.8", 1/1.9" (8 MP)
  • Focal Length: 3.8 to 16mm
  • Back Focal Length: 7.9mm
  • Aperture: f/1.4
  • 1/1.7" Sensor Angle of View: Diagonal: 148 to 35.8° / Horizontal: 112.3 to 29.2° / Vertical: 56.8 to 15.5°
  • 1/1.8" Sensor Angle of View:  Diagonal: 140.7 to 34.7° / Horizontal: 106 to 27.8° / Vertical: 76.4 to 20.9°
  • 1/1.9" Sensor Angle of View:  Diagonal: 131.6 to 33° / Horizontal: 107.8 to 28.2° / Vertical: 64.4 to 17.8°
  • Focus Type: Manual Focus
  • Iris Type: DC Auto
  • IR Corrected: Yes
  • Operating Temperature: -20 to 60°C
  • Flange Back Length: 12.78 mm
  • Certifications: CE, RoHS, as per Manufacturer
  • Dimensions (ø x L): 56 x 90.5 mm
  • Weight: 256 g
