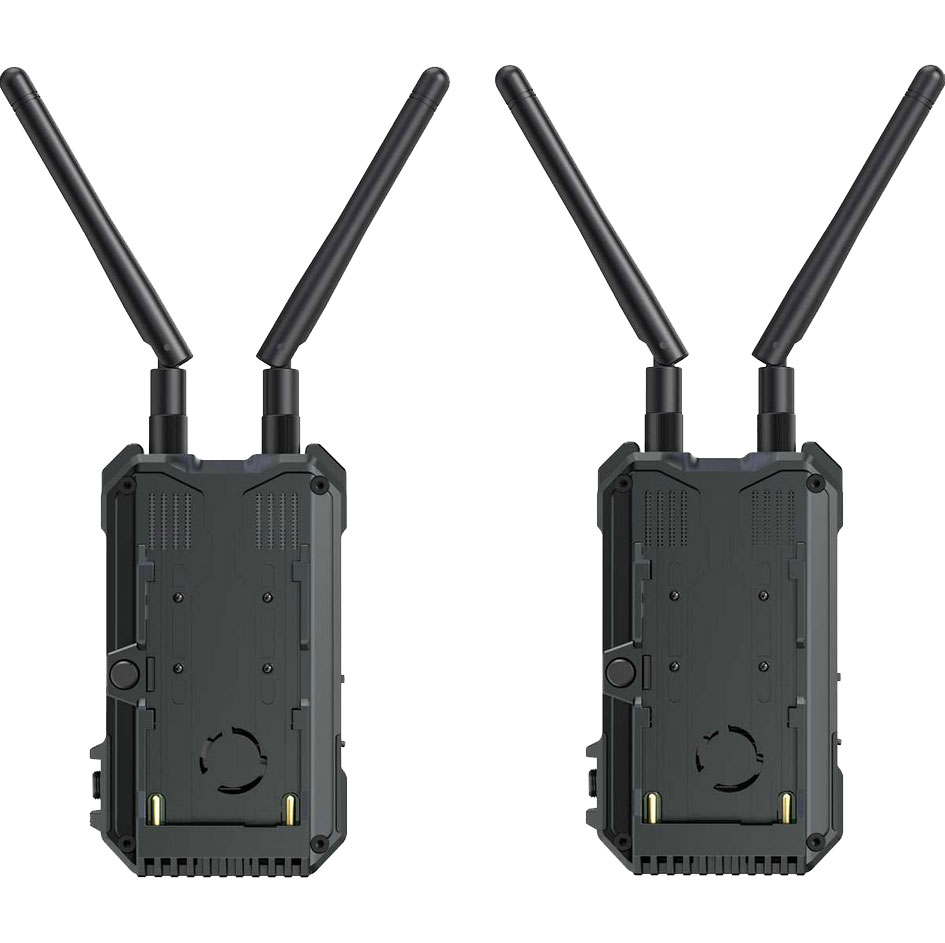

Hollyland Pyro H

Hollyland Pyro H

Hollyland Pryo H, your ultimate HDMI-only solution specially designed for video transmission at up to 4K/30fps, is now available on the market. With transmission over dual 2.4 GHz and 5 GHz frequency bands, this innovative kit marks Hollyland’s pioneering leap into the realm of 4-receiver support, offering enhanced monitoring stability and collaboration on set. With a new level of performance in transmission range, and latency, among other things, Pyro H is to make a difference.

Key Features

  • 1TX & 4RX
  • Up to 1,300ft (400m)
  • 0.06s Low Latency
  • 2.4 GHz & 5 GHz Dual Band
  • 4K30 Transmission
  • HDMI Loopout
  • USB Video Class (UVC)
  • Smart Channel Scan

Technical data

  • Power Consumption: <7W
  • Net Weight: 192g
  • Dimensions: L × W × H: 109 × 62.3 × 33.4mm
  • Transmit Power: < 23 dBm
  • Latency: 0.06s (test data when 1080p60 signals are transmitted in a laboratory)
  • Range: 1,300ft (400m)(test data in an open, interference-free environment)
  • Bandwidth: 20 MHz (Broadcast: 40 MHz)

Operating Frequency

  • 5 GHz Frequency Band
  • 5.150 – 5.250 GHz
  • 5.250 – 5.350 GHz
  • 5.470 – 5.725 GHz
  • 5.725 – 5.850 GHz
  • 2.4 GHz Frequency Band
  • 2.412 – 2.484 GHz

Input/Output Format

HDMI

  • 720p50/59.94/60
  • 1080i50/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080p50/59.94/60 4K30/25/24

HDMI Loopout

  • 720p50/60
  • 1080i50/60
  • 1080p24/25/30
  • 1080p50/60
  • 4K30/25/24

Port

  • DC Input: 2.0mm Core Socket
  • HDMI Input: HDMI 1.4b
  • HDMI Loopout: HDMI 1.4b
  • USB-C: USB 2.0 OTG
  • Antenna: SMA Male

Power Supply

  • USB-C: 5V/2A (not supported in Broadcast mode)
  • Battery Voltage Range: 6.8 – 8.4V
  • DC Voltage Range: 6 – 16V

Details of the manufacturer

  • Shenzhen Hollyland Technology Co.,Ltd
  • 8F, Building 5#D, Skyworth Innovation Valley, Tangtou Road Shiyan Street, Baoan District, Shenzhen, China

(852) 3666 5111

holly@hollylandgroup.com

Details of the person responsible for putting the product on the European market

  • Hollyland Europe GmbH
  • Ingolstädter Str. 20
  • 80807, Munich, Germany

accountant.eu@hollyland.com

+49 89 13957785

Warnings and safety information

HL-BAT700 - MATERIAL SAFETY DATA SHEET
