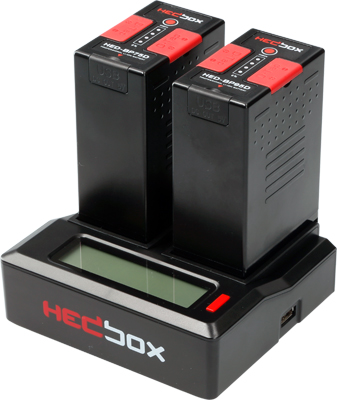

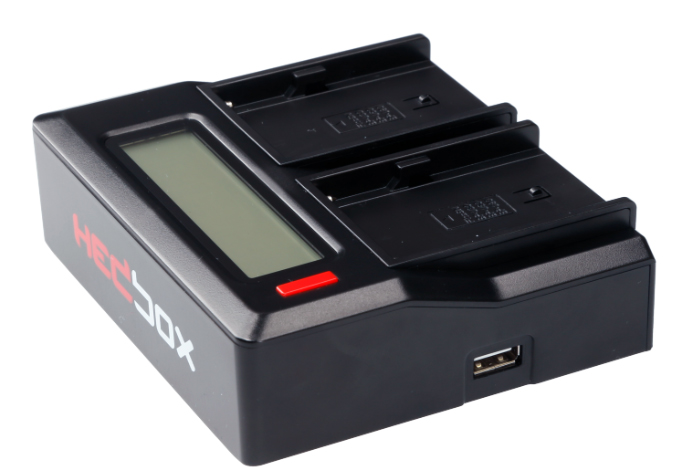

HedBox RP-DC50 Digital Dual LCD Battery Charger with USB Output

HedBox RP-DC50

The HedBox RP-DC50 charger have possibility to charge One or Two Batteries Simultaneously in the same time. Intelligent Control MCU can automatically identify the voltage and number of Batteries that is put on the charger, going intelligent charge when being charging, and prevent overcharge, depending if you chose Boost or standard charging mod on Boost push button.

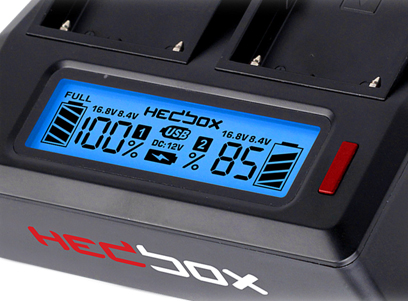

A large LCD screen provides clear accurate and precise display of charging status, USB output, and DC 12V Input. Displaying Boost Charging mod provides a clear insight, into the way in which charging mode is used to charge your Professional Battery. With implemented back light, the readout function is enabled in the dark.

With implemented back-light in the large LCD screen, the readout function is enabled in the dark, that give you clear possibility to use this charger at any place and any time.

Charging Technologies

Intelligent Charging Systems integrate the Control Systems within the charger with the electronics within the Battery to allow much finer control over the charging process. As a safety precaution with high capacity Batteries a Pre-Charging stage is used. The charging cycle is initiated with a low current. If there is no corresponding rise in the Battery Voltage it indicates that there is possibly a Short Circuit in the Battery (zero voltage activation). Constant Current / Constant Voltage (CC/CV) Charging Mode is a effective way to charge lithium Batteries. When a lithium Battery is nearly empty, we take constant current to charge it. Charger CPU automatically adjusts Charging Current to be lower than the max charging current that Battery can accepted. With constant charging, the voltage of Battery is slowly upping, when Battery voltage reaches the max charging voltage, charger would make sure charging voltage fixed as “constant voltage” and reduce the charging current. When Battery is fully charged this state would be stopped.

Charging Time

Charging Time: Intelligent Control MCU can automatically identify the voltage and number of Batteries that is put on the charger, and prevent overcharge, depending of the Charging Mode that is selected on the switch button. In HIGH Charging mode one Professional Battery like RP-BPU80 with 74.88 Wh will be charged for approximate 3.5h, and if you take 2 of them on same charger the total charging time will be approximate 6.5h. In LOW Mode the charging time per one Battery will be 5.2h or per two 10.2h total charging time.

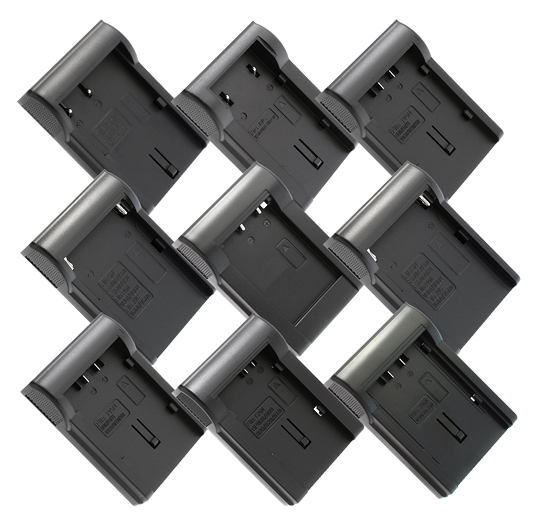

Interchangeable Battery Plates

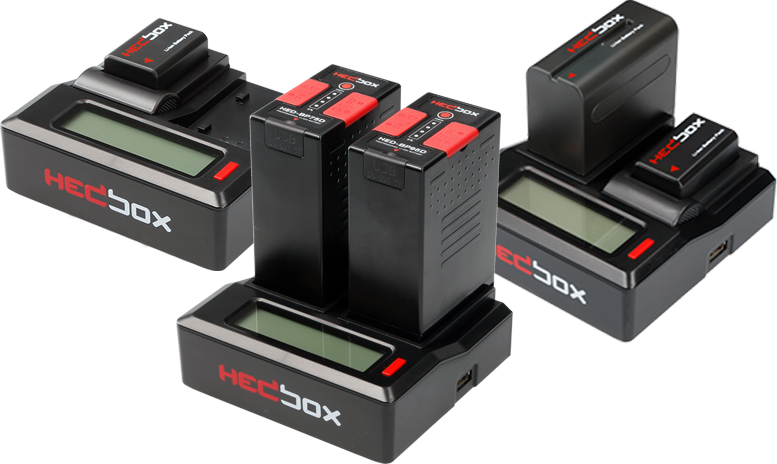

With easily Interchangeable Battery Plates (They are designed to use only with Digital Chargers model RP-DC50, RP-DC40 and RP-DC30.) Intelligent Charger can be used for all World Brand Battery Models.

This Economic Option allows you to Charge many different Batteries, all with one Charger according to the plate model. Charger automatically sets Charging Voltage and the Charging Current for the designed Battery Pack. That leaves no space for charging error!

Technical data

Model : RP-DC50 Intelligent Dual Digital LCD Battery Charger
AC Power In : AC 110 – 240V , 50/60Hz
DC Power In : DC 12 – 24V
Power Consumption : Max 55W
Power Output 1 : DC 8.4V – 16.8V / 1500mA Boost Power / 800mA Standard (auto-change the voltage according to the installed optional charging plate)
Power Output 2 : DC 8.4V – 16.8V / 1500mA Boost Power / 800mA Standard (auto-change the voltage according to the installed optional charging plate)
DC Power Input : DC 12V – 24V / 45W
USB Output : 5V, 10W / 2.1A (Max)
Charging Type : Ni-CD , Ni-MH , Li-Ion
Operating Temperature : –20°C to +45°C
Dimensions (WxDxH) : 124 x 114 x 445 mm
Weight : 218 g
Charging Method : RP-DC50 use optional changing plates according to the Battery Pack Manufacturer and Model

Related links of the manufacturer

Accessory Items

Hedbox Battery Plate
Hedbox Battery Plate Hedbox Battery Plate ia a battery mount for use with the Hedbox RP-DC50, Hedbox RP-DC40, Hedbox RP-DC30 Chargers RP-DEL15: for Nikon EN-EL15 BatteriesRP-DEL14: for Nikon EN-EL14 BatteriesRP-DEL9: for Nikon EN-EL9 BatteriesRP-DNPW126: for Fujifilm NP-W126 BatteriesRP-DVBN130: for Panasonic VW-VBN BatteriesRP-DLPE8: for Canon LP-E8 BatteriesRP-DVF808: for JVC BN-V BatteriesRP-DBP808: for Canon BP-800 BatteriesRP-DB511: for Canon BP-500 BatteriesRP-DNB2L: for Canon NB-2L BatteriesRP-DEL3: for Nikon EN-EL3 BatteriesRP-DFW50: for Sony NP-FW50 BatteriesRP-DBP975: for Canon BP-900 BatteriesRP-DD54: for Panasonic CGR-D BatteriesRP-DFM50: for Sony NP-F, Panasonic VW-VBD & Canon BP-L BatteriesRP-DFP50: for Sony H, M V BatteriesRP-DJC70: for JVC SSL BatteriesRP-DLPE6: for Canon LP-E6 BatteriesRP-DVBG6: for Panasonic VW-VBG6 BatteriesRP-DBPU: for Sony BP-U BatteriesRP-DBLF19: for Panasonic DMW-BLF BatteriesRP-DFZ100: for Sony NP-FZ100 Batteries
