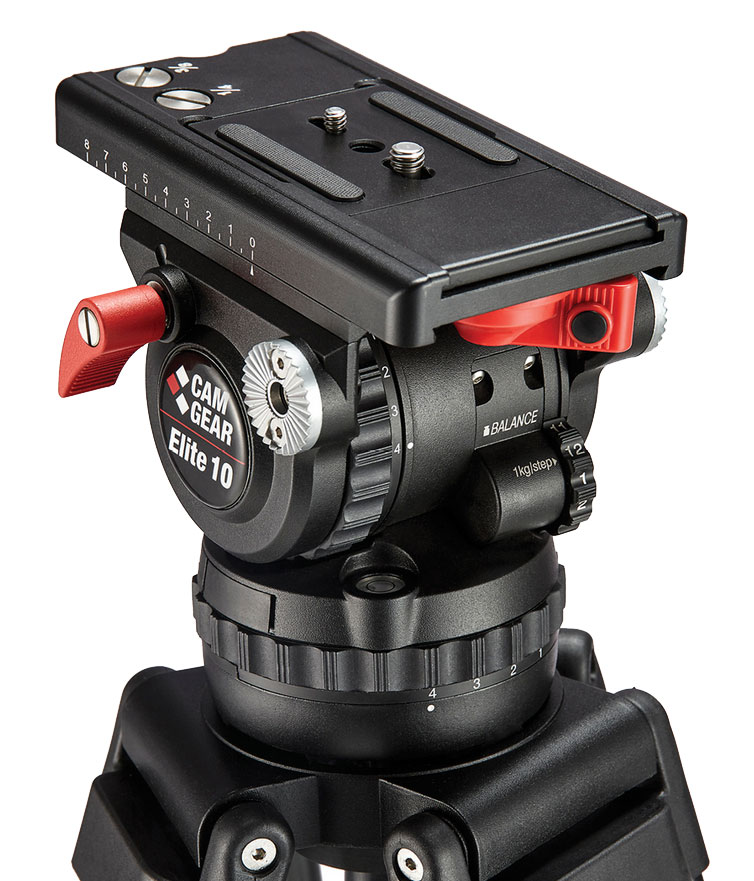

CamGear Elite 10 Fluid Head

CamGear Elite 10 Fluid Head

CamGear Elite 10 Fluid Head includes Elite Wedge Plate TNG-16, Bowl Clamp BC-2 & Elite Pan Bar ELPB-1. Technical data:

Bowl Diameter: 100 mm
Camera Platform Type: Touch & Go 16
Camera Plate: Camgear TNG-16 1/4" screw, 3/8" screw
Counterbalance System: 12 steps (1-12)
Pan & Tilt Drag: 4 steps (1-4)
Pan & Tilt Range: Pan: 360° / Tilt: +90/-75°
Temperature Range: -40°C to +60°C
Levelling Bubble: Illuminated Touch
Pan Bar: Camgear ELPB-1
Maximum Payload: 12 kg
Weight: 3.3 kg
Sliding Range: 80 mm
