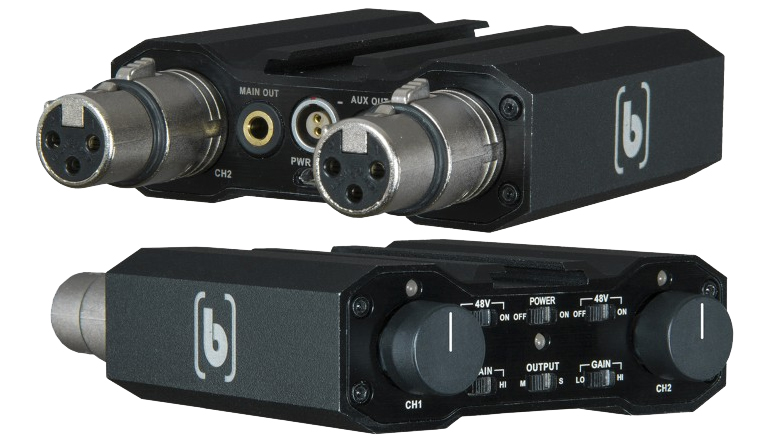

BEACHTEK DXA-RED
Compact, robust and easy to install Dual XLR adapter including low noise amplifier for RED DSMC2 cameras. Offers features to record audio in cinematic quality. With the V-CLIK Quic Release Plate, the device can be quickly and easily mounted onto the camera.
Can be used with the ARRI ALEXA Mini, ALEXA Mini LF or other DSLR cameras with a microphone connector, with the following cables:
ALEXA Mini: BT-RED2ALX (3,5mm TRS zu 5-pin LEMO)
ALEXA Mini LF: BT-RED2LF (5-pin XLR zu 6-pin LEMO)
DSLR: SC35 (3,5mm TRS zu 3,5mm TRS) is a included item
The DXA-RED is easy to use and offers the best audio quality.
Features
Phantom power
LED Indicator
Low noise amplifier
2x XLR Inputs
2-pin LEMO or USB electricity
Quick-Release bracket
small and lightweight
Main and Aux 3,5mm Outputs
Dual amplification
numerous mounting options
Technical data
Frequency: 20Hz bis 20kHz (+/-0,5dB)
Amplifier - Main OUT: Lo Gain: 40dB; Hi amplification: 60dB
Amplifier - AUX OUT: Lo Gain: 20dB, Hi amplification: 40dB
Dynamic range: 94dB
THD+N: Lo Gain: 0,001% (+4dBu Output, 1kHz); Hi Gain: 0,09% (+4dBu Output, 1kHz)
Channel Seperation: Lo Gain: 80dB (+4dBu Output, 1kHz), Hi Gain: 68dB (+4dBu Output, 1kHz)
Level indicator: green: -40dBu to -4dBu; red: over -4dBu
Maximum input level: Lo Gain: -20dBu; Hi Gain: -40dBu
Output Clipping: Main Out: +20dBu; Aux Out: 0dBu
Electricity: 2-Pin 0B LEMO Connector (5-18V, 120mA), Pin 1 = (-), Pin 2 = (+); Micro USB Connector (5V, 800mA)
Dimensions: 83,6mm x 75mm x 28mm
Weight: 257g
In the box
1x Preamplifier
1x BT-PWR Cable (2-Pin LEMO zu D-TAP)
1x USB Cable
1x SC35 Output Cable (TRS 3,5mm zu TRS 3,5mm)
1x V-CLIK Quick-Release Bracket
1x Foot, Bolt and Allen key
1x Reference card
