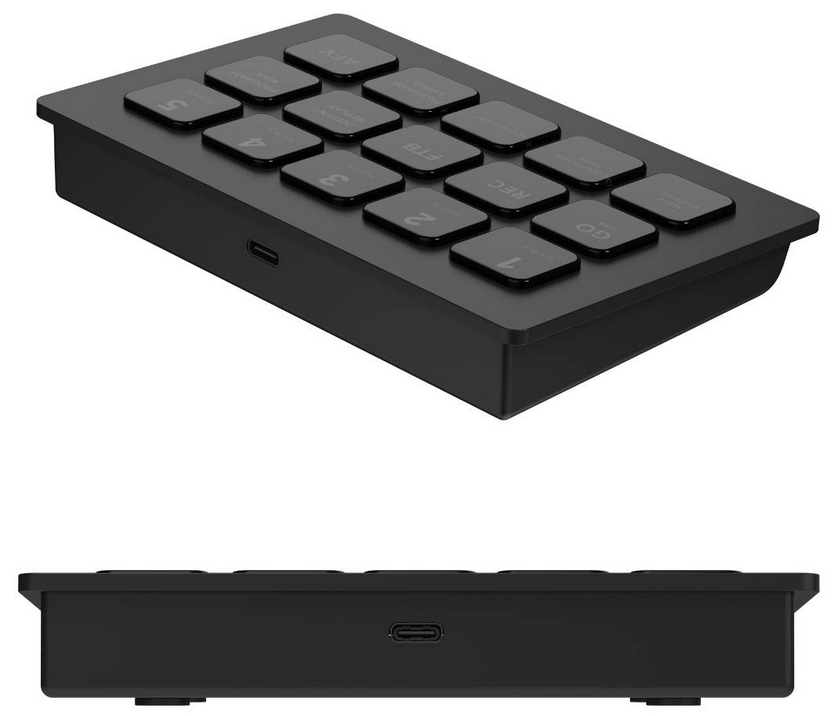

The YoloDeck is a console with 15 customizable LCD buttons that allows you to switch between video sources, add graphics, and adjust audio settings to efficiently manage live streams. It currently works with the YoloBox Ultra / YoloBox Extreme.
The YoloBox Ultra offers you these options
Seamless integration of multiple video sources
Support for various streaming platforms (YouTube, Facebook, Twitch)
Simultaneous streaming on multiple platforms
=Intuitive user interface
Efficient and hassle-free control of streams
Use of professional transitions and effects
Versatile connection options for devices and cameras
Main features of the console
15 customizable LCD buttons
Connectivity: USB port for integration with YoloBox Ultra
Button assignment: When the YoloDeck is connected to the YoloBox Ultra, you can freely assign the buttons using drag and drop
Each button provides visual feedback for confirmed actions
Button layouts unlimited expandability
Supported actions
Switching video sources
Adding graphics
Adjusting audio settings
Starting and stopping live streams
Inserting overlays
Starting instant replays
Technical data
Power supply via YoloBox Ultra
Interface: USB-C
Input voltage: 5V
Power consumption: 3W (0.75W in standby mode)
Dimensions and weight
132 mm x 91 mm x 20 mm (without frame)
188 g (without frame)
In the Box
1 x YoloDeck console
1 x Height-adjustable rack
1 x USB cable (for connection to the YoloBox)
Details of the manufacturer
HANGZHOU XINGXI TECHNOLOGY CO., LTD
ROOM 701 BUILDING 6,
NO.1818-2 WEST WENYI ROAD,
HANGZHOU CITY,
China
YoloLiv YoloBox Extreme
All-in-one streaming solution with 8 HDMI inputsThe YoloBox Extreme from YoloLiv is a powerful all-in-one solution for professional live productions. It combines functions such as encoding, recording, monitoring, and switching in one compact device, enabling high-quality live streams with minimal effort.Highlights8 HDMI inputs: Supports up to 4K60 with integrated scaler2 HDMI outputs: Assignable for program output or multiview in 4KISO recording: Simultaneous recording of up to 4x 4K30 or 6x 1080P60 sourcesTrue 4K streaming capability: For crystal-clear live broadcastsStream via Ethernet, Wi-Fi, 4G LTE, USB dongleNetwork bonding with up to 3 SIM cards + Wi-Fi + Ethernet. Supported formats: H.264 & H.265NDI license integrated (up to 8 sources possible)11.2-inch display: With 2.5K resolution and 120Hz refresh rate for clear and smooth displayMultiCam Instant Replay: Supports 6 cameras at 1080P60 or 4 cameras at 4K30External antenna: Provides a wireless range of up to 90 meters and stable connectivityLong battery life: Up to 10 hours of operation for longer live events.Technical dataProcessor: Qualcomm 8Gen2Operating system: AndroidInputs: 8x HDMI (up to 4K60)Outputs: 2 HDMI outputs, flexibly assignableDisplay: 11.2 inches with 2.5K resolution and 120Hz refresh rateNetwork: Supports wired and wireless connections with external antenna for extended rangeBattery life: Up to 10 hours for extended live productionsInputsHDMI inputs (8x): Supports resolutions up to 4K60, with integrated video scaler for flexible source inputsUSB input: Compatible with USB cameras or other video sourcesSD card slot: Enables playback of pre-recorded videos or overlaysAudio input (3.5 mm jack): For external microphones or audio sourcesNetwork input (RJ45): For wired internet connections, ideal for stable streamsSIM card slot: Enables mobile streaming via LTE networksWi-Fi support: For wireless network connections and NDI streamsNDI input: Wireless video transmission with low latency for up to 8 NDI sourcesOutputsHDMI outputs (2x): Program output: Transmits the final, switched video feed to external displays or projectors Multiview output: Shows an overview of all video sources for better control and monitoringUSB-C output: For connection to computers for additional functionality or streamingAudio output (3.5 mm jack): For external speakers or audio monitoringNDI output: Wireless output via IP networks for compatible devices and workflowFeaturesLive Switch: Easily switch between multiple video sources or fully customized scenesAudio mixing: Adjust the volume of your audio sources individuallyISO recording: Record all video inputs as well as the program video and save them separatelyGraphic overlays: Add logos, captions, titles, countdown timersMultiViews: Customize the layout of your livestream with integrated MultiViewsScore counting: Just like you're used to seeing in soccer games, you can display the score in real time. The colors are freely configurable. You can also integrate game/team logosMultiCam playback: Create highlight clips with preset video duration, intros, outros, and more—easily with just a few clicksInvite guests: Start a real-time conversation with remote guests via a web browser on mobile devicesPTZ control: You can preset up to 5 camera positions. This allows you to quickly switch between different angles and views.In the boxYoloBox Extreme2 antennasPower supplyUSB-C to USB-C cable (for power supply)USB-C to USB-A cable (for notebook)Hotshoe adapter with jointDisplay protection film
YoloLiv YoloBox UltraAll-in-one solution for live video broadcastsThe YoloBox Ultra is a smart combination solution for vertical and horizontal live streams. You can connect 4 cameras via HDMI and additional cameras via USB. (2x USB-A for webcams and 1x USB-C). The 650 nits bright display allows you to see everything clearly, even in bright sunlight. Various apps such as YouTube, Facebook, TikTok, and Instagram are already pre-installed. NDI and SRT protocols are also supported.You can go live on the internet via your SIM card, Wi-Fi, or a wired connection. You can switch between cameras using the touchscreen display. If necessary, you can spice up your content with chroma key and overlays, invite guests, and integrate pre-recorded footage via your SD card. All sources can be recorded in parallel (ISO recording), giving you the opportunity to make final adjustments even after the broadcast.FeaturesSwitcher, monitor, encoder, and recorder in one4K streamingISO recording4x HDMI inputs, 1x HDMI output2x USB-A, 1x USB-C (for webcam, hard drive, dongle – options listed in more detail below)8" touchscreen display with 650 nits brightnessAudio inputs and outputs (line-in, mic-in & headphone jack)NDI + SRT support (To keep the price as low as possible, the license is not included as standard. The upgrade is available directly with YoloLiv)Stream via Ethernet, Wi-Fi, 4G LTE, USB dongleIntegrated battery with 75.48Wh (up to 6 hours of runtime)Network bonding with up to 3 SIM cards* + Wi-Fi + Ethernet (* there is a slot for one micro SIM card; the other two can be plugged in via USB dongles. SIM cards and dongles are not included. You can book the required cloud service directly from YoloLiv)Supported formats: H.264 & H.265Multi-stream on Facebook, YouTube, RTMP (up to 3 platforms simultaneously)Multi-stream on TikTok, Instagram (2 vertical platforms)Live switch from up to 10 sourcesNote for NDI and network bondingThere is a one-time fee for the NDI license. It is tied to the device for an unlimited period of timeNetwork bonding works via the YoloLiv serverTechnical dataSoftware featuresInviting guestsChroma key (green screen)Instant replay (can also be displayed via “picture in picture”)Auto-switchingVideo croppingMulti-views (PiP – picture in picture, split view, side by side, news layout, triple)Background musicFade-to-black transitionsAudio mixingWeb URL overlaysExternal files such as PDFs, images, or videos can be integrated (via SD card or USB hard drive)Integrated graphics (titles, logos, images, lower thirds, countdown timers, social overlays, web URL overlays) can be integrated into the streamRecording to SD card (up to 128GB) or USB hard drive (up to 1TB)Direct integration with YouTube / Facebook / RTMP(s)CBR, VBR, CQ encoding optionsCustom graphic overlaysMonitor detailsDisplay size: 8"1200 x 1920Contrast ratio: 1,500:1Brightness: 650 nitsTouchscreen LCDConnections4x HDMI video input2x USB-A 3.0 video input (for webcam* / USB dongle / external hard drive)1x USB-C 3.0 port (for webcam* / USB dongle / external hard drive)1x USB-C charging port (for charging only)1x HDMI video output (you can also display the image on a PC monitor)1x Ethernet port (for wired Internet connection)1x line-in (stereo, for electric guitar, synthesizer, etc.)1x mic-in (mono, for microphone recording)1x audio output (3.5 mm, for headphones)1x slot for nano SIM card (for mobile Internet connection)1x slot for SD card (as a source for videos/PDFs and for storing recordings)*Note on the USB port: Please note that with some USB webcams, only the video signal can be recordedVideo / Audio (Input & Output)Video Input Aspect Ratios: 16:9 / 4:3 / 1:1Video Output for Streaming: 2160 at 30fps / 1080 at 60fps / 720p / 480pVideo format for recording and streaming: H.264, H.265Streaming protocols: RTMP, RTMPS, MJPEG, SRTAudio input: 32kHz / 44.1kHz / 48kHz :16bitAudio output for streaming: (AAC) 44.1K / 48KHZ 2Ch 16bit Saving videos / integrating external videos and PDFsVia SD card, storage volume up to 128GB in FAT32 formatVia external USB hard driveInternet connectionWifi 2.4G /5GEthernet4G LTE (nano SIM card)Power supplyIntegrated battery (6,800 mAh)Battery life: up to 6 hoursCharging via USB-C 3.05V / 9V / 12V / 15VPower consumption: 45WPhysical featuresOn/off button on the bottom1/4" internal thread for mounting on a camera, tripod, or similarHousing made of non-slip plasticOperating temperature: 0°C to 40°CDimensions & weight27mm x 140mm x 219mm981gIn the Box1x YoloBox Ultra1x Protective film for display1x USB charging cable, USB-C to USB-C (150cm) *Power adapter for charging not included; a standard power adapter for smartphones can be used1x USB adapter cable for PC, USB-C to USB-A (150cm)1x hot shoe mount with joint for tilting1x hex key for hot shoe mount1x pin plug for removing the SIM card (SIM card not included)1x user manual
€1,399.00*
gross: €1,664.81
