YoloLiv YoloBox Extreme

YoloLiv YoloBox Extreme

All-in-one streaming solution with 8 HDMI inputs

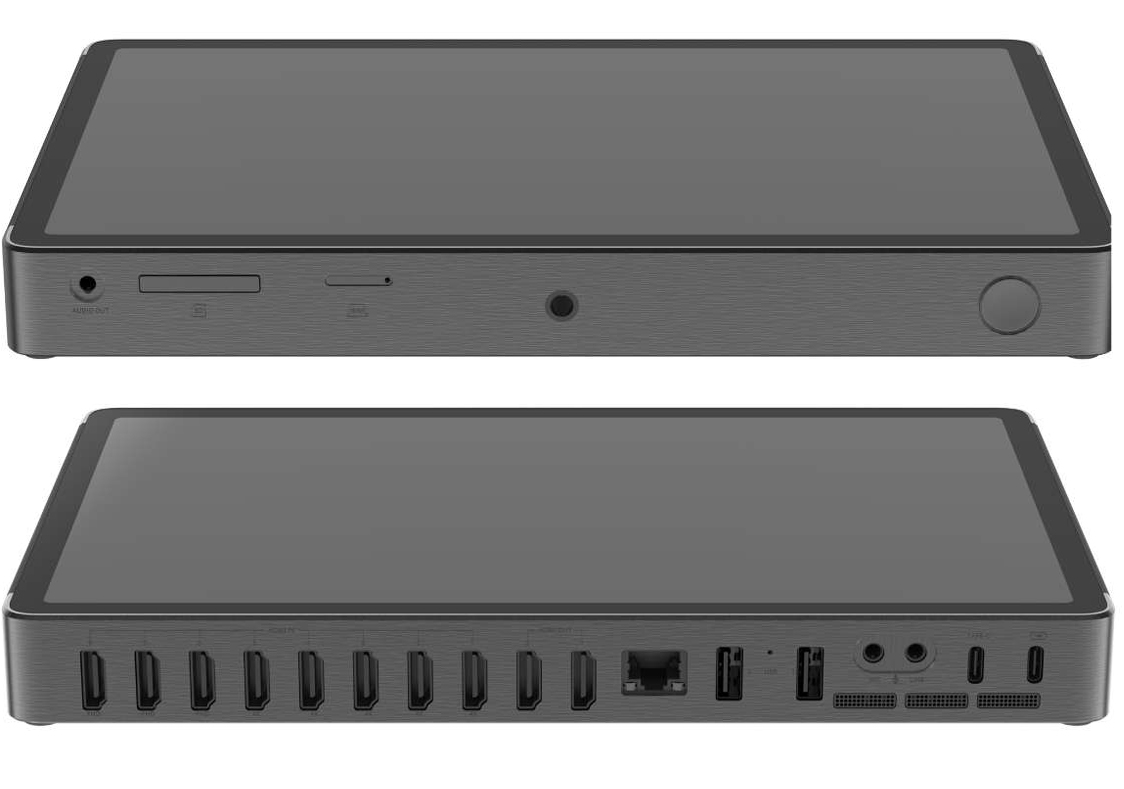

The YoloBox Extreme from YoloLiv is a powerful all-in-one solution for professional live productions. It combines functions such as encoding, recording, monitoring, and switching in one compact device, enabling high-quality live streams with minimal effort.

Highlights

• 8 HDMI inputs: Supports up to 4K60 with integrated scaler
• 2 HDMI outputs: Assignable for program output or multiview in 4K
• ISO recording: Simultaneous recording of up to 4x 4K30 or 6x 1080P60 sources
• True 4K streaming capability: For crystal-clear live broadcasts
• Stream via Ethernet, Wi-Fi, 4G LTE, USB dongle
• Network bonding with up to 3 SIM cards + Wi-Fi + Ethernet. Supported formats: H.264 & H.265
• NDI license integrated (up to 8 sources possible)
• 11.2-inch display: With 2.5K resolution and 120Hz refresh rate for clear and smooth display
• MultiCam Instant Replay: Supports 6 cameras at 1080P60 or 4 cameras at 4K30
• External antenna: Provides a wireless range of up to 90 meters and stable connectivity
• Long battery life: Up to 10 hours of operation for longer live events.

Technical data

• Processor: Qualcomm 8Gen2
• Operating system: Android
• Inputs: 8x HDMI (up to 4K60)
• Outputs: 2 HDMI outputs, flexibly assignable
• Display: 11.2 inches with 2.5K resolution and 120Hz refresh rate
• Network: Supports wired and wireless connections with external antenna for extended range
• Battery life: Up to 10 hours for extended live productions

Inputs

• HDMI inputs (8x): Supports resolutions up to 4K60, with integrated video scaler for flexible source inputs
• USB input: Compatible with USB cameras or other video sources
• SD card slot: Enables playback of pre-recorded videos or overlays
• Audio input (3.5 mm jack): For external microphones or audio sources
• Network input (RJ45): For wired internet connections, ideal for stable streams
• SIM card slot: Enables mobile streaming via LTE networks
• Wi-Fi support: For wireless network connections and NDI streams
• NDI input: Wireless video transmission with low latency for up to 8 NDI sources

Outputs

• HDMI outputs (2x): Program output: Transmits the final, switched video feed to external displays or projectors Multiview output: Shows an overview of all video sources for better control and monitoring
• USB-C output: For connection to computers for additional functionality or streaming
• Audio output (3.5 mm jack): For external speakers or audio monitoring
• NDI output: Wireless output via IP networks for compatible devices and workflow

Features

• Live Switch: Easily switch between multiple video sources or fully customized scenes
• Audio mixing: Adjust the volume of your audio sources individually
• ISO recording: Record all video inputs as well as the program video and save them separately
• Graphic overlays: Add logos, captions, titles, countdown timers
• MultiViews: Customize the layout of your livestream with integrated MultiViews
• Score counting: Just like you're used to seeing in soccer games, you can display the score in real time. The colors are freely configurable. You can also integrate game/team logos
• MultiCam playback: Create highlight clips with preset video duration, intros, outros, and more—easily with just a few clicks
• Invite guests: Start a real-time conversation with remote guests via a web browser on mobile devices
• PTZ control: You can preset up to 5 camera positions. This allows you to quickly switch between different angles and views.

In the box

• YoloBox Extreme
• 2 antennas
• Power supply
• USB-C to USB-C cable (for power supply)
• USB-C to USB-A cable (for notebook)
• Hotshoe adapter with joint
• Display protection film
