smallHD CINE 5
smallHD CINE 5
The Ultra, Cine, and Indie in the Smart 5 Series represent three tiers of brightness, I/O capability, and physical interface options to match a range of on-set workflows. All monitors will come equipped with multi-touch interfaces; the Cine 5 adds a joystick and back button for a new way to use our camera-control functionality; the Ultra 5 offers supplementary customizable function buttons for quick access to monitor and software functions while wearing gloves. Each monitor is encased in a unibody chassis crafted from anodized aluminum and features multiple mounting points.

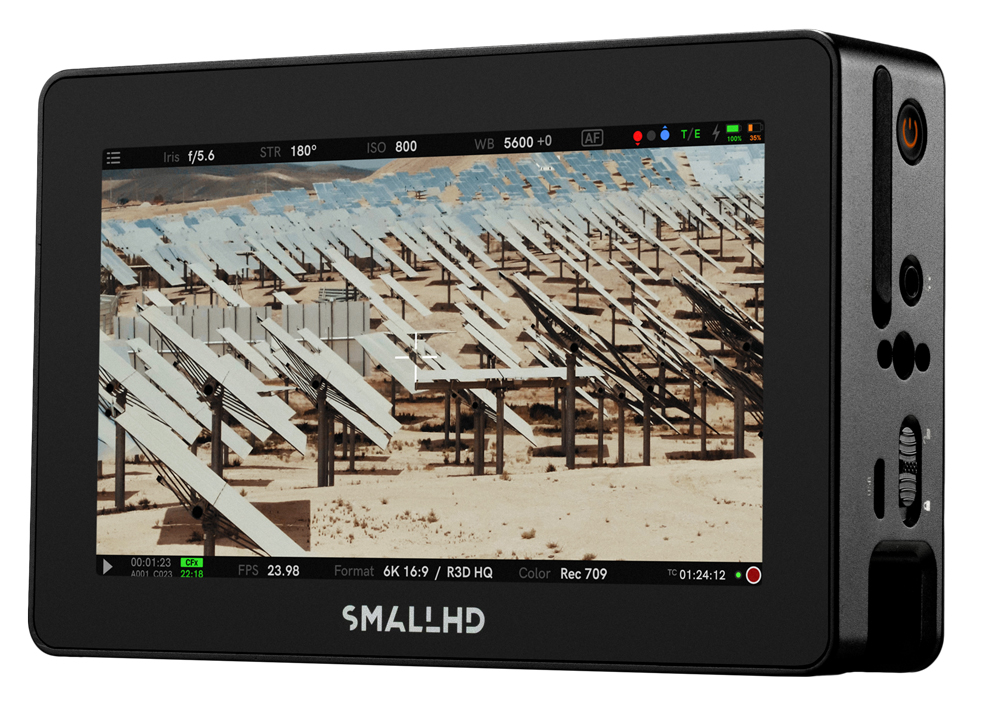

smallHD CINE 5 combines a touchscreen experience with a side-mounted joystick and back button, 2000nits of brightness, DCI P3 color gamut, 3G-SDI (I/O), HDMI 2.0 (I/O), 2-pin locking power input, and a 5-pin locking USB (for RED Camera Control).
Features
- Display: 5-inch LCD
- Resolution: 1920 x 1080p (HD) Resolution
- Color: DCI-P3
- Color Depth: 4:2:2 10-bit
- Brightness: 2000nits
- Input/Output: 1x 3G/HD-SDI (I/O); 1x HDMI 2.0 (I/O)
- Power Input: 2-pin Locking Power Input
- Construction: Aluminum Unibody Chassis
- Software: PageOS 5
Details of the manufacturer
- SmallHD
- 301 Gregson Drive Cary
- North Carolina 27511, United States
+1 919.439.2166
https://smallhd.com/pages/contact-us
Details of the person responsible for putting the product on the European market
- New Media AV Bauer und Trummer GmbH
- Johannes Bauer
- Pirnaer Straße 20
- 90411 Nürnberg, Germany
+49 911 5399-60
