seetec ATEM156S-CO 15.6" SDI Broadcast Director Monitor CARRY-ON

€1,055.00*

gross: €1,255.45

Prices excl. VAT plus shipping costs

Free shipping

Available, delivery time: 1-3 days

Product number: SW28557

Manufacturer: seetec

EAN: 6971863810232

Manufacturer product number: ATEM156S-CO

Delivery time: 1-3 days

Feelworld ATEM156S-CO

The Feelworld ATEM156S-CO is a 15.6-inch Full HD SDI/HDMI monitor, designed for broadcast, live production, and field use. Featuring quad-split SDI monitoring, focus assist tools, and a rugged aluminum carry case, it delivers reliable performance for professional video workflows.

The Feelworld ATEM156S-CO is ideal for multi-camera monitoring, broadcasting, and field use. It boasts a 1920x1080 IPS panel with 85° viewing angles, an 800:1 contrast ratio, and 200 nits brightness, ensuring accurate image representation.

Equipped with four 3G-SDI inputs and outputs, 1 HDMI input, and RS485/GPI connectivity, this monitor provides flexible integration into broadcast and live production environments. Its quad-split display mode enables real-time multi-camera monitoring, while built-in focus assist, false color, screen markers, and anamorphic de-squeeze features enhance production accuracy.

The ATEM156S-CO is powered via DC 12V or a V-Mount battery, making it highly portable for on-location shoots. Built for durability, it comes housed in a protective aluminum carry case, perfect for field and studio operations.

Features

15.6-inch Full HD Display – 1920 x 1080 resolution with wide viewing angles
Quad-Split SDI Monitoring – View four SDI feeds simultaneously
Professional Monitoring Tools – Focus Assist, False Color, Check Field, Blue/Red/Green-Only Mode, Image Rotate, and Screen Markers

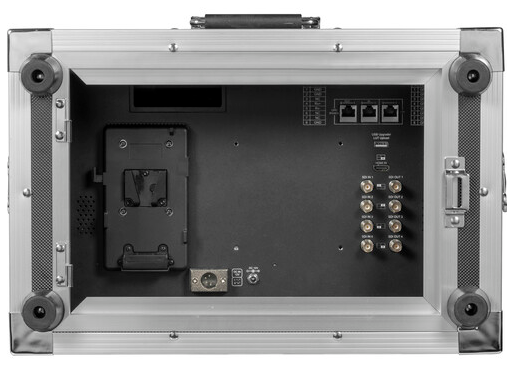

Multiple Input/Output Options – 4x 3G-SDI inputs/outputs, 1x HDMI input, RS485, GPI
Audio Monitoring – 3.5mm headphone output for real-time audio monitoring

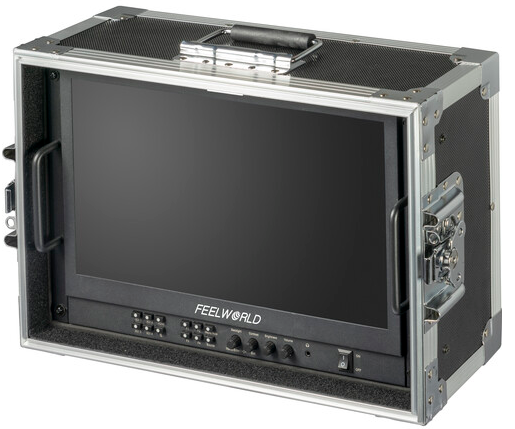

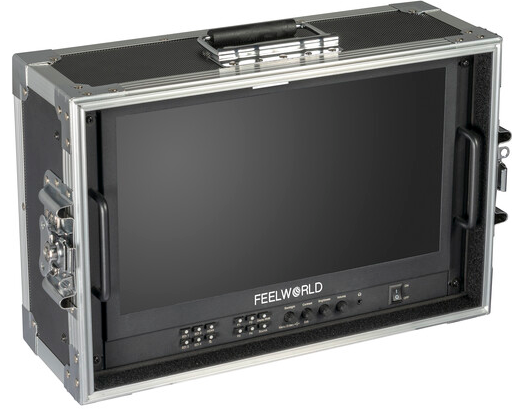

Portable & Durable – Lightweight with an aluminum carry case for easy transport
V-Mount Battery Plate – DC 12V input or battery power for on-location use
Flexible Mounting Options – 75x75mm & 100x100mm VESA mounting compatibility.

Specifications

Screen Size: 15.6” IPS LCD
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle: 85° horizontal / 85° vertical
Brightness: 200cd/m²
Contrast Ratio: 800:1
Inputs: 4x 3G-SDI, 1x HDMI, 1x USB, 1x GPI, 1x RS485
Outputs: 4x 3G-SDI, 1x RS485
Audio Output: 3.5mm headphone jack
Power: DC 12V, V-Mount battery support, 21W power consumption
Operating Temperature: 0°C ~ 50°C
Dimensions: 372 x 262 x 28.4 mm (excluding case)
Weight: 1.57 kg (excluding case)

Details of the manufacturer

Zhangzhou Seetec Optoelectronics Technology Co., Ltd
No.76th, Xianjing Road, Jinfeng Development Zone, Zhangzhou, Fujian, China

0086-596-2672627

sales@feelworld.cn

Details of the person responsible for putting the product on the European market

TB EC REP EUROPEAN SL
Calle Marcelo Usera 60
LC. Madrid 28026, Spain

eureg@tbvat.com
