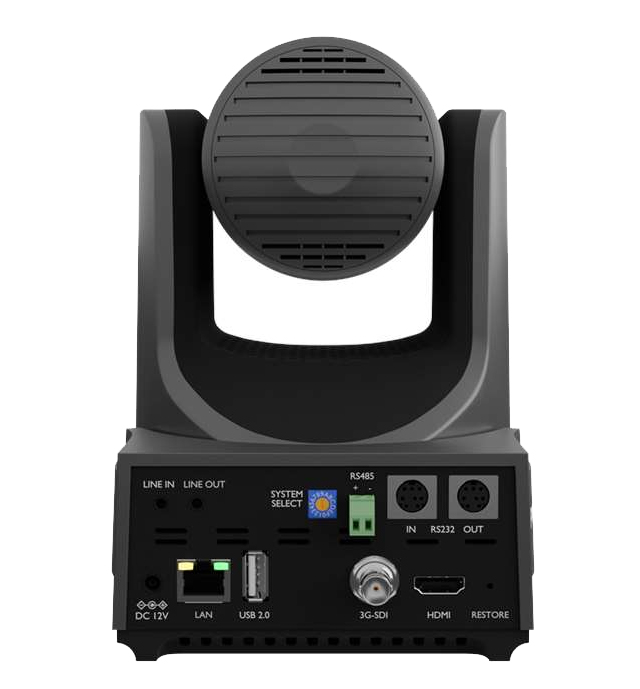

PTZOptics Link 4K 20X PT20X-LINK-4K-GY

PTZOptics Link 4K 20X

The PTZOptics LINK 4K 20x offers built-in auto-tracking at 4K at 60fps (1080p at 60fps over SDI) and features Dante AV-H and a built-in tally light. Available outputs include SDI, HDMI and USB for unrivaled performance and versatility. Compatible with most video production software, including OBS, vMix, Wirecast and more.

Features

  • 60.7° (20X) horizontal field of view
  • High performance in low light scenarios with Wide Dynamic Range
  • Ultra HD 3840x2160p resolutions up to 60 FPS
  • 3D noise reduction with our latest low noise CMOS sensor
  • Serial (RS232 & RS485) & IP control (LAN/WAN)
  • H.264, H.265, & MJPEG video compression when IP streaming
  • USB 2.0, HDMI 2.0 / 3G-SDI (HDMI & SDI are not simultaneous)
  • PoE+ (Power over Ethernet) or 12VDC power supply
  • Beamforming microphone
  • AI Video based auto tracking
  • Dante AV-H (Limited to 1080p60)
  • Photobooth capable
  • Built in tally light

Camera & Lens

Resolution and Frame Rate
  • HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
  • SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
  • Video Sensor (20X) Sony 1/1.8 inch, CMOS, Effective pixels: 8.42M
  • Digital Zoom (20X) f
  • 6.25 ~ 125mm, F1.58 ~ F3.95
  • Fiel of view (20X) H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
  • Min Lux 0.5 Lux @ (F1.8, AGC ON)
  • Shutter 1/30s ~ 1/10000s
  • Pan Movement ±170°
  • Pan Speed -1.7° ~ 100°/s
  • Tilt Movement -30° ~ +90°
  • Tilt Speed 1.7° ~ 69.9°
  • Presets 255 Presets
  • Preset Accuracy 0.1⁰
  • Image Flip, Mirror and Freeze Supported
