ProSup TED Retrofit
€6,339.00
Free shipping
ProSup TED Retrofit for Tango Pelicase Kit
The many Tango kits already in the field can be retrofitted with a retro-fit kit. The retro fit kit comprises of a 100mm bowl with mounted motor and battery plate, new end stops providing a safety cut out for the ends and gear racks for the 1.2m and 1.0m tracks. The 24v BLBC 60w brushless motor is driven by the multi-functional Dynastick and a standard V-lock battery. The cable link allows operation and programming over its 10m length. An optional RF link is also available for extended track lengths. Regardless of the retro fit kit the Tango Roller can still be used maunally by disengaging the motor using the clutch.

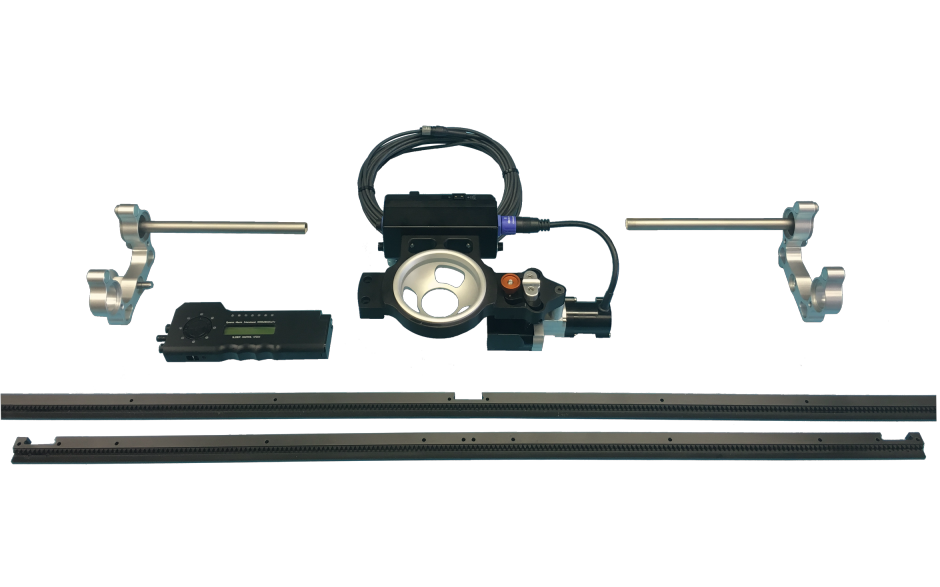

In the box
- 100 mm bowl incl. motor and drive unit with V Mount battery plate and disengaging clutch
- 2 sensor magnetic TED end stoppers
- DynaStick control with 10m cable
- 1 meter and 1,20 meter gear racks with mounting screws.
Details of the manufacturer
- ProSup Professional Camera Support
- Nieuw Walden 102
- 1394 PE Nederhorst den Berg, The Netherlands, EU
+31 294 25 3315
Accessories
ProSup Tango Pelicase KitThe ProSup Tango Roller is a lightweight roller system for camera weighs up to 15 kg based on a 100mm tripod.The Tango Roller is the latest product from Prosup. It performs with purpose made, high quality wheels and roller bearings combined for optimum shock-free, smooth movement. The Tango Roller is maintenance friendly and can be operated in any environment.The lightweight roller system is ideal for camera packages up to 15 kg and can be used in both over- and under-sliding configurations. For the central tripod configuration we recommend the use of two additional mono-pods, which are included in the set, to provide additional support at the ends of the 1.2M track. All the sleepers are equipped with a 3/8” location hole for use with 28mm spigots, angle ball joints or 100mm half ball adapters.The Tango Pelicase Kit includes a 1M and 1.2M track length, which is provided with a central tripod adapter, 1 Dolly, 2 Magnetic end stops, 3 Tango Floor Spreaders with levelling feet, 1 Universal Tie-down for any fluid head and 2 adjustable Mono-pods. Everything is packaged in a Pelicase with special hard foam.The whole package weighs no more than 22 kg.The Pelicase provides space for an optional 100mm half ball, up to four 28mm spigots and a Mitchell/150 adapter plate.There are even more useful accessories like angle ball joints, a 100<150 bowl adapter, undersliding bracket and further lengths of 1.5M track, so the system can be extended endlessly.100mm bowl (PS361)Tango Roller 1002x Tango tracks (1m + 1.20m)2x end stoppers1x 100mm tripod adapter with lock1x short tie down3x crossties with levelling feet2x Monopods1x Peli case75mm bowl (PS361-75)Tango Roller75mm bowl2x Tango tracks (1m + 1.20m)2x end stoppers1x 100mm tripod adapter with lock1x short tie down3x crossties with levelling feet2x Monopods1x Peli caseMitchell plate and spacer (PS361-M)Tango Roller with Mitchell Plate2x Tango tracks (1m + 1.20m)2x end stoppers1x 100mm tripod adapter with lock1x short tie down3x crossties with levelling feet2x Monopods1x Peli case150mm bowl and spacers (PS361-150)Tango Roller 1502x Tango tracks (1m + 1.20m)2x end stoppers1x 100mm tripod adapter with lock1x short tie down3x crossties with levelling feet2x Monopods1x Peli case
