PortKeys BM7 II DS 7-inch touchscreen monitor

PortKeys BM7 II DS

The Portkeys BM7 II DS is a rugged 7-inch touchscreen monitor and an evolution based on the worldwide success of the BM5 III WR. This monitor features a maximum brightness of 2,200nits, HDMI input/output ports, two SDI inputs and one SDI output with HDMI cross conversion, and wired/wireless camera control capabilities.

The Portkeys BM7 II DS expands many features of our famous BM5 III WR monitor. It’s touch screen display is crisp, crystal-clear, and daylight-viewable. Camera operators benefit from the four user-assignable function buttons, a full suite of professional monitoring tools, the capability to control your camera wired or wirelessly. The sherries on top are the bigger screen real-estate, more input/output ports, and new video monitoring capabilities.

Box includes

  • 1x BM7 II DS Monitor
  • 1x Screw-in DC Power Cable
  • 1x Safety Box
  • 1x Micro USB Flash Drive
  • 1x Y-Type Wrench

Technical data

  • Screen: Size 7”
  • Dimension: 179.3 x 106.8 x 31mm
  • Viewing Angle: 85/85/85/85
  • Brightness: 2200nit
  • Resolution: 1920x1080
  • Contrast Ratio: 1000:1
  • Weigh:t 460g
  • Color Gamut: 85% P3
  • Color Depth: 10bit(8+2 FRC)
  • Maximum Power: 15W
  • Material: Aluminium Alloy
  • Antenna: 2.4G
  • Input Voltage: 7.4V-24V
  • Fan: Yes

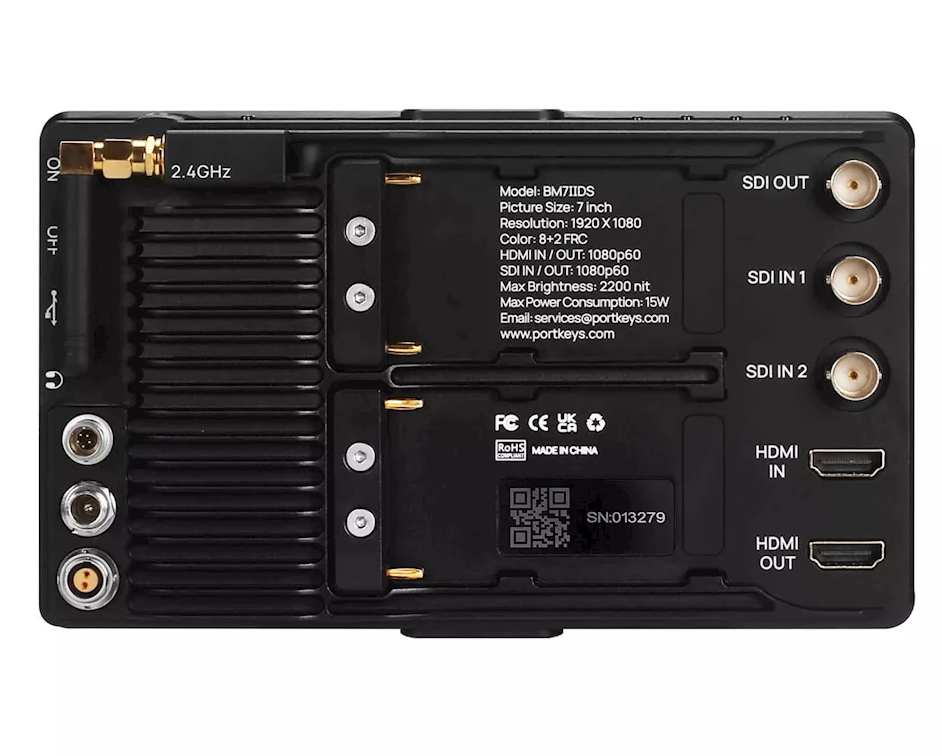

  • Video Input/Output: Input 3G SDIx2 HDMI / Signal, Conversion, HDMI to SDI HD Output
  • Support Battery Model: SONY NP-F970/F960/F750/F550
  • Camera Control Port: Focus Puller / CAMERA REMOTE
  • USB-A: Firmware Update / 3D LUT
  • Power Input / Output: 2 Pin LEMO/DC 5.5 x 2.1
  • Audio Output: 3.5mm Headphone Jack
