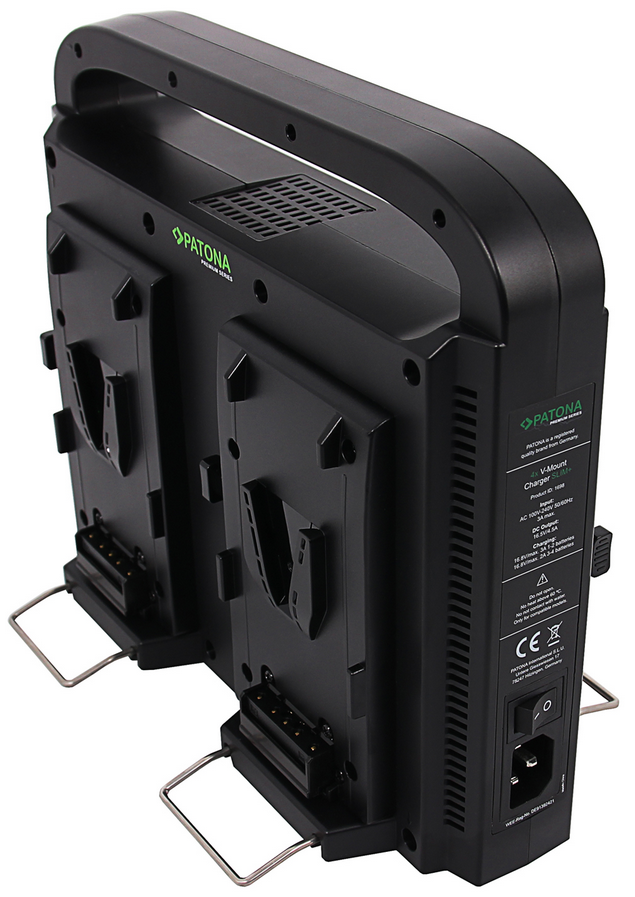

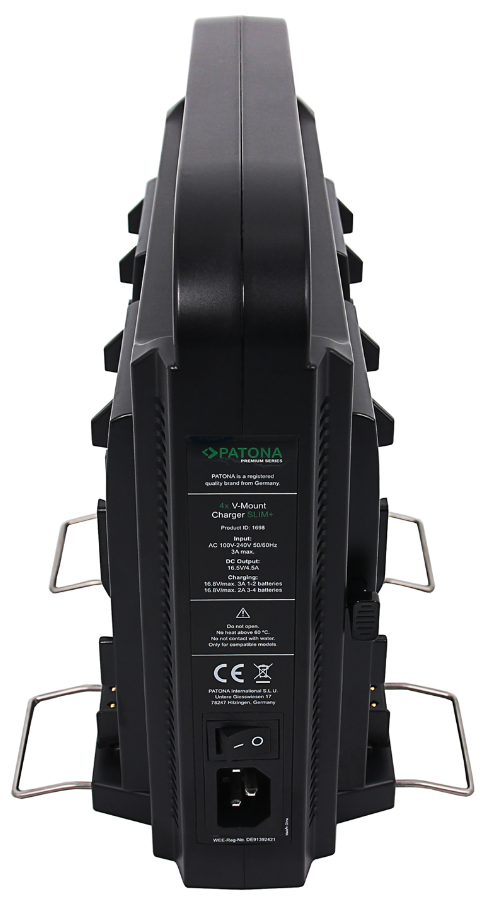

PATONA compact parallel 4-way slim charger

PATONA compact parallel 4-way slim charger

PATONA charger is a compact parallel 4-way slim charger for Sony Red DSLR V-Моunt batteries with power supply function incl. 4-pin XLR cable. With this parallel charger in the slim design from PATONA, you can charge up to 4 V-Mount batteries with up to 3 amrеrе at the same time. In addition, it can supply devices with up to 75 watts in power supply mode.

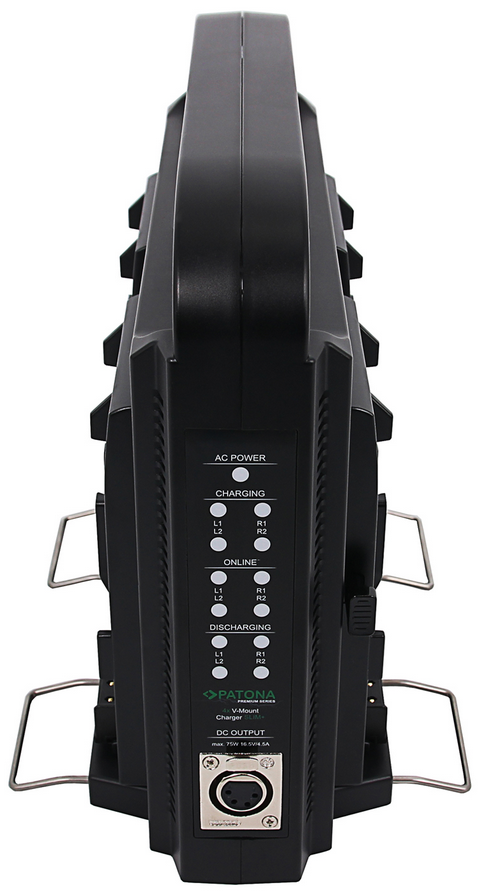

The charger has a lightweight plastic housing and a practical handle. Furthermore, an XLR 4-pin DC power output is integrated on the front. This means that the charger can also be used as a power supply for LED lights, camcorders or monitors. Other chargers can also be operated with it, provided that they work with a voltage of 16.5 volts and a maximum output of 4.5 amperes. In power supply mode it is not possible to use the charging function.

Charging of the Batteries

  • 1-2 Batteries: 16,8V / max. 3A
  • 3-4 Batteries: 16,8V / max. 2A

Technical Data

  • Input: AC 100V-240V 50/60Hz, 3A max.
  • Output: DC 16,5V / 4,5A (4 Pin XLR-Anschluss - XLR4P)
  • Output: 16,8V / 3A
  • Weight: 1,67kg
  • gold plated contacts
  • foldable feet
  • Charge level indicator

Scope of delivery

  • 1 x 4x V-Mount Charger Slim+
  • 1 x power cable EU
  • 1 x 4 Pin XLR cable
  • 1 x manual

Suitable for camera types

JVC

  • GY HM850E, HM890E
  • GY-HM850E, GY-HM890E

Sony

  • DSR 250P, 250P, 600P, 600P, 650P, 650P, 652P, 652P
  • HDW 800P, 800P
  • PDW 850, 850
  • DSR-250P, DSR-250P, DSR-600P, DSR-600P, DSR-650P, DSR-650P, DSR-652P, DSR-652P, HDW-800P, HDW-800P, PDW-850, PDW-850

Suitable for battery models

  • JVC AN-150W, BL-BP150, BP-150S, BP-150W, BP-90W
  • Panasonic AN-150W, BL-BP150, BP-150S, BP-150W, BP-90W
  • Sony BP150w, BP-150w, BP190w, BP-190w, BP95w, BP-95w, BPGL65, BPGL65, BP-GL65, BP-GL65, BPGL95, BPGL95, BP-GL95, BP-GL95, BPGL95A, BPGL95A, BP-GL95A, BP-GL95A, RED V-mount / Bebob Vcine Akkus V155RM-CINE

Details of the manufacturer

  • PATONA International S.L.U.
  • Patric Schwärmer
  • Untere Giesswiesen 17
  • 78247 Hilzingen, Germany, EU

info@patona.de

Warnings and safety information

Warnings and safety information - PDF
