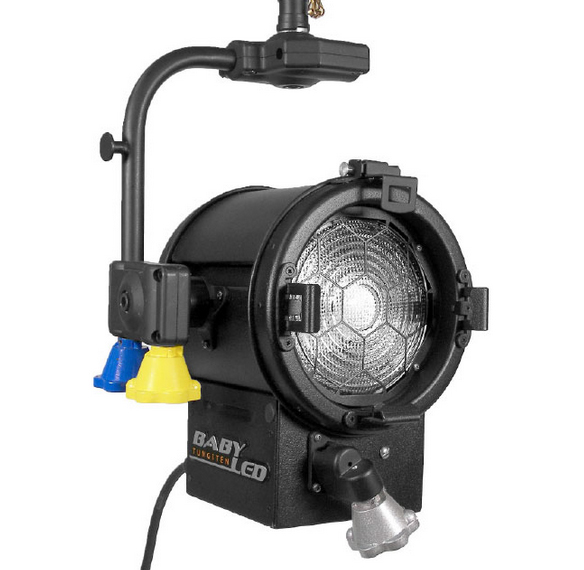

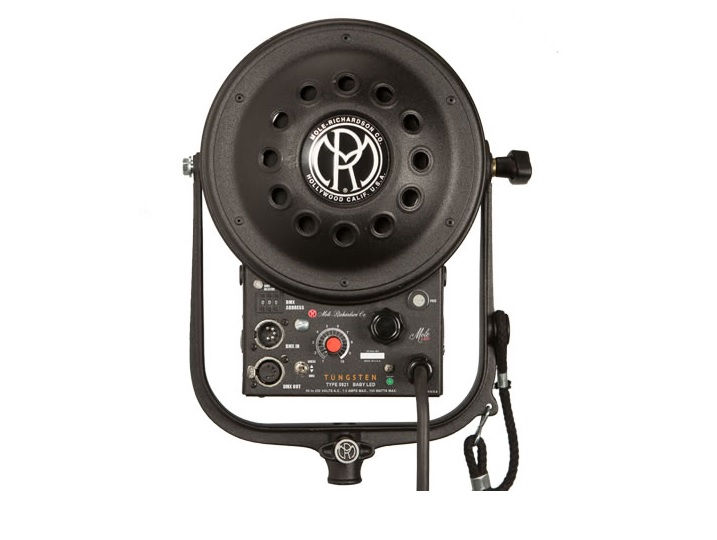

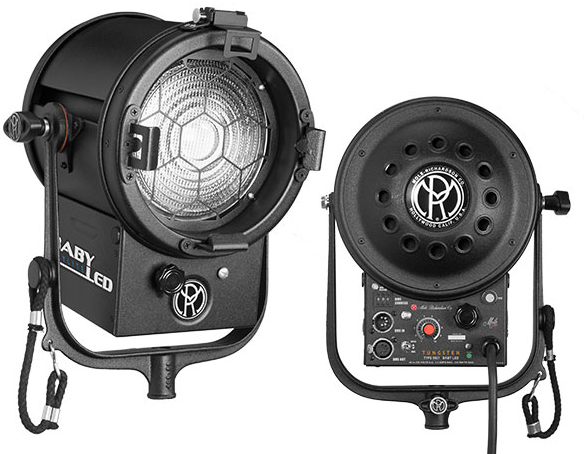

Mole Richardson 150W BabyLED
Mole Richardson 150W BabyLED
It looks like a Baby. It feels like a Baby. And most importantly, it performs like a Baby. Seamless integration with existing Tungsten Halogen Incandescent, similar performance and optics as other 6" (152mm) Mole Fresnels, and about 80% less power consumption.
Type 8921 Tungsten
Type 8821 Tungsten (Non-DMX)
Type 8921-51Rev Tungsten Pole-Operated
Type 8931 Daylite
Type 8831 Daylite (Non-DMX)
Type 8931-51Rev Daylite Pole-Operated
Introducing the MoleLED Fresnels - Mole Richardson BabyLED. A design familiar to generations of lighting professionals is now loaded with state of the art electronics and the latest LED technology. These revolutionary fixtures use a proprietary Quantum Dot LED developed and produced by Mole to replicate film and television 3200K Tungsten and 5600K Daylight exactly. High-output, with unparalleled color quality and a borosilicate glass Fresnel lens, the MoleLED Fresnels perform identically to an incandescent or HMI Fresnel fixture. In addition, Mole added features like a universal power supply, built-in local dimming as well as on-board DMX dimming. Now, you are no longer tied to an external dimming system or any one voltage.
In an industry inundated with mass produced, eco-friendly products, the Mole Richardson MoleLED Fresnels are truly a hybrid of hand crafted quality and the most advanced solid state lighting technology available. From the ground up, the MoleLED Fresnels are designed, engineered and built in the USA for professionals everywhere.
Advantages of BabyLED 150W
5,600K Daylight Balance
CRI: 90
DMX512-A In and Out
100 - 0% DMX Dimming
100 -10% Local Dimming
IP 30 Rating
90-250VAC
Aluminum Alloy and Steel Construction
Low Electrical Draw
7,62 m Cable
Specifications
Head(s): Type 8921 Tungsten / Type 8931 Daylite
Rating 90-250 Volts AC, 50-60Hz, 150 Watts, 0.75-1.5 Amps Max. DMX Standby Draw <.08 Amps Max.
Light Source (1) - 150 Watt Mole-Richardson Quantum Dot LED 3200K 95CRI Tungsten & 5600K 90CRI Daylight
Switch Thru-cord Toggle in Cable, DMX or Local Toggle in Trough
Fuse 1.5 Amp Slow-Blow. Fuseholder in Trough
Dimming Flicker Free, Direct DC Dimming Local Dimmer 100% - 0% (Minimal Color Shift) DMX Dimmer 100% - 0% (Minimal Color Shift)
Control DMX512-A In and Out. Manual DMX Address Selector
Beam Angle 10° to 55° Variable Spot to Flood (Includes Field)
Focusing Rotating Knob on Front and Back
Cooling Passive-Forced Air
Cable Attached 25 ft (7.6m) Type SO., 3 Conductor, #18 AWG with NEMA 5-15 Edison (Other plugs and wire lengths available upon request)
Construction Aluminum and Steel with Interlocking Channels
Yoke Cast Aluminum w/Standard 5/8 in (16mm) Receiver
Compliance RoHS. CE, UL, CSA
IP Rating 30
Finish Textured Black Powder Epoxy Coat. (Other Colors Available)
Size 279 mm x 279 mm x 438 mm
Head Weight: 3.86kg (Head Only) / 4.99kg (Head with 25ft/7.6m cable)
Condense: 152 mm Borosilicate Glass Fresnel
