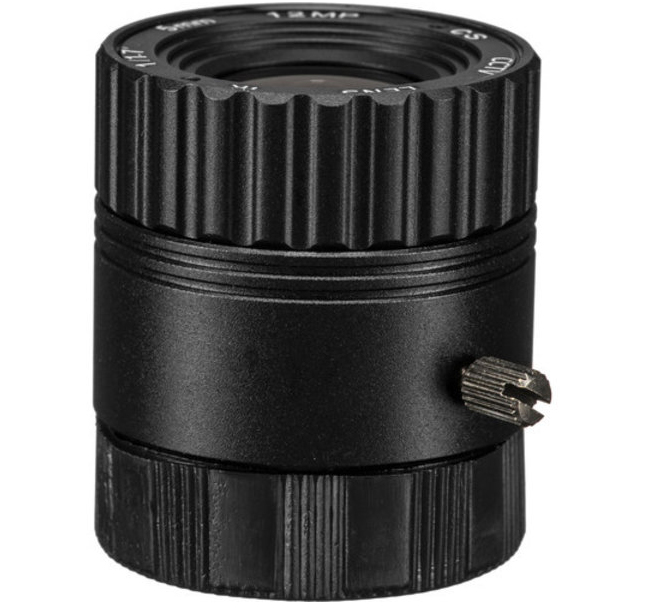

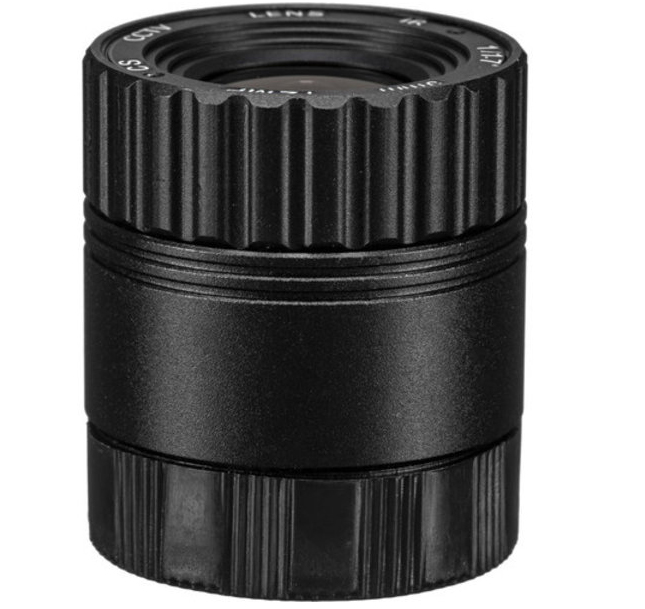

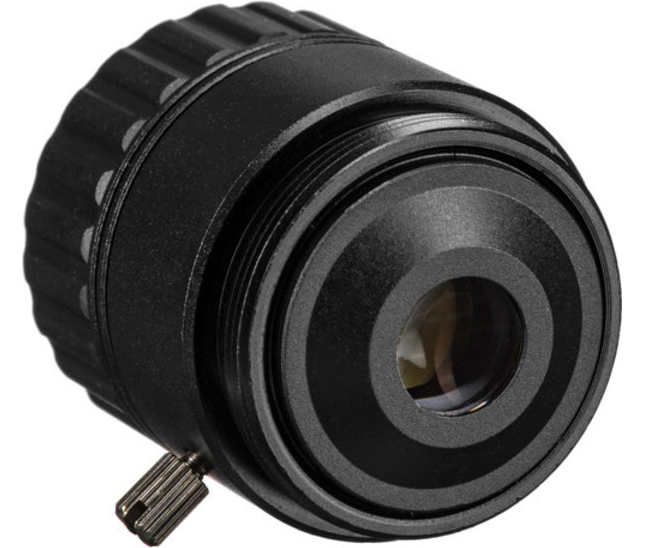

Marshall CS-5.0-12MP - 5.0-12MP CS-Mount 5mm Fixed Lens

Marshall CS-5.0-12MP

Marshall CS-5.0-12MP 12MP 5.0mm 4K Fixed CS Lens is a CS-Mount 5mm Fixed Lens designed for use with 12MP cameras that have a 1/1.7" sensor. This lens has a 5mm focal length that delivers an 87° horizontal field of view. It is IR corrected and features fixed iris operation. Technical data

  • Lens Mount: CS
  • Sensor Compatibility: 1/1.7", 1/2.5", 1/3"
  • Focal Length: 5mm
  • Back Focal Length: 6.39mm
  • Aperture: f/2
  • Angle of View - 1/1.7" Sensor Diagonal: 114.4° / Horizontal: 87° / Vertical: 61.8°
  • Angle of View - 1/2.5" Sensor: Diagonal: 87° / Horizontal: 68.6° / Vertical: 49.7°
  • Angle of View - 1/3" Sensor: Diagonal: 70.9°/ Horizontal: 55.5° / Vertical: 41.2°
  • Minimum Object Distance: 0.98' / 0.3 m
  • Focus Type: Fixed Focus
  • Iris Type: Fixed
  • Distortion: -43.7%
  • IR Corrected: Yes
  • Operating Temperature: -20 to 60°C
  • Flange Back Length: 12.5 mm
  • Dimensions (ø x L): 28 x 31.3 mm
  • Weight: 40.9 g

Details of the manufacturer

  • Marshall Electronics, Inc.
  • 20608 Madrona Avenue
  • Torrance, CA 90503, United States

+1 (310) 333-0606

Support@marshall-usa.com

Details of the person responsible for putting the product on the European market

  • VISION2see GmbH
  • Alexander Kirst
  • Bajuwarenring 14
  • 82041 Oberhaching, Germany

+49 89 693 991 50

info@vision2see.de
