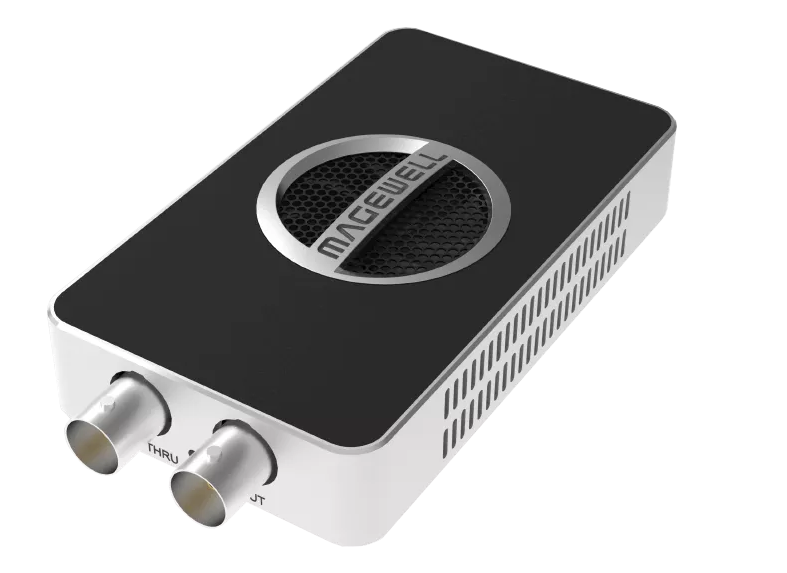

Magewell USB Capture SDI 4K Pro

Magewell USB Capture SDI 4K Pro

Discover the power of the Magewell USB Capture SDI 4K Pro – a premium, one-channel 4Kp60 capture device designed to handle high-quality SDI video signals with embedded audio. Ideal for professional streaming, broadcasting, and production, this device supports SDI video sources such as cameras, production equipment, and more, delivering stunning 4K resolution with seamless audio capture.

With support for SDI inputs and loop-through, the USB Capture SDI 4K Pro offers resolutions up to 4096x2160 at 60fps in 4:2:2, ensuring ultra-high-definition video quality. The device allows for real-time monitoring with its SDI loop-through output, making it easy to preview your video while it's being processed. It also provides flexible audio capture options, including the ability to extract embedded SDI audio and output it via the 3.5mm Line Out jack, or capture analog audio through the 3.5mm Line In interface.

Interface

• Input Interface: One SDI input + embedded audio
• SDI Loop-through: One SDI loop-through
• Resolution Support: Up to 4096x2160 at 60fps (4:2:2)
• Audio Input/Output: 3.5mm Line In/Line Out for audio

Host Interface

• USB 3.2 Gen 2x2 up to 20Gbps throughput
• Operating Systems Supported: Windows, Linux, Mac, Chrome

Capture Format

• Supported Capture Resolutions: Up to 4096x2160
• Supported Frame Rates: Up to 240fps (subject to host system and OS limitations)
• Audio Capture: 2-channel embedded audio or analog audio via 3.5mm unbalanced Line In

Included Software

• USB Capture Utility
• Capture Express
• Compatible Software: Supports a range of applications, including Zoom, OBS Studio, XSplit, and more

Additional Features

• Auto detection of input signal format
• SDK support for Windows, Linux, and Mac
• 24/7 continuous operation
• LED status indicator for easy monitoring
• 3-year warranty

Form Factor

• 110.6 mm x 56.8 mm x 18 mm
