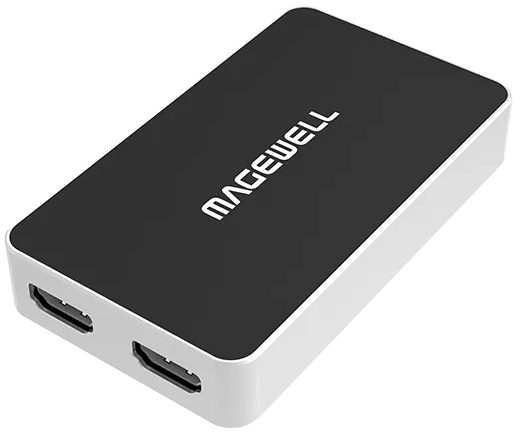

Magewell USB Capture HDMI Plus

Magewell USB Capture HDMI Plus

The Magewell USB Capture HDMI Plus is a one-channel 2K capture device designed to handle HDMI signals with embedded audio. Featuring a loop-through HDMI signal, it allows for seamless recording and streaming without losing the original input signal. This device also provides the flexibility to capture from the latest game consoles such as the PS4 Pro and Xbox One S, with the ability to automatically downscale 4Kp60 4:2:0 input to 2K resolution for recording or streaming. In addition to HDMI capture, it includes audio input via a microphone and can extract embedded audio output via the headphone jack, offering added convenience for live streaming and broadcasting.

Supporting input and loop-through resolutions up to 4096×2160 pixels, the USB Capture HDMI Plus ensures high-quality capture with resolutions up to 2048x2160 and frame rates up to 120fps. It supports both 2-channel embedded audio and analog audio via the 3.5mm microphone interface. With auto-detection of input signal format and continuous 24/7 operation, this device is designed for demanding applications such as video production and live streaming. It is compatible with a wide range of software applications, including Zoom Rooms, Microsoft Teams, OBS Studio, and more, making it an ideal choice for professionals.

Interface

• Input Interface: One HDMI input with embedded audio
• Loop-through Interface: One HDMI loop-through
• Support input and loop-through resolution: Up to 4096×2160 pixels
• Audio Input/Output Interface: 3.5mm audio jack for microphone/headphones
• Host Interface: USB 3.0 (compatible with USB 2.0)

Capture Format

• Capture Resolution: Up to 2048x2160
• Capture Frame Rates: Supports frame rates up to 120fps
• Audio Support: 2-channel embedded audio or analog audio via 3.5mm microphone interface

Software

•  Included Software: USB Capture Utility, Capture Express, and more
• Compatible Software: Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, and more

Additional Features

• Auto-detection of input signal format
• Integrates the functions of a USB audio card; playback audio via 3.5mm headphone interface
• SDK support for Windows, Linux, and Mac
• Continuous 24/7 operation for demanding environments
• LED status indicator for monitoring device status
• Warranty: 3-year warranty
• Form Factor: 98.1mm (L) x 56.8mm (W) x 17mm (H)
